SawStop Revolution Miter Gauge For Precise Cuts

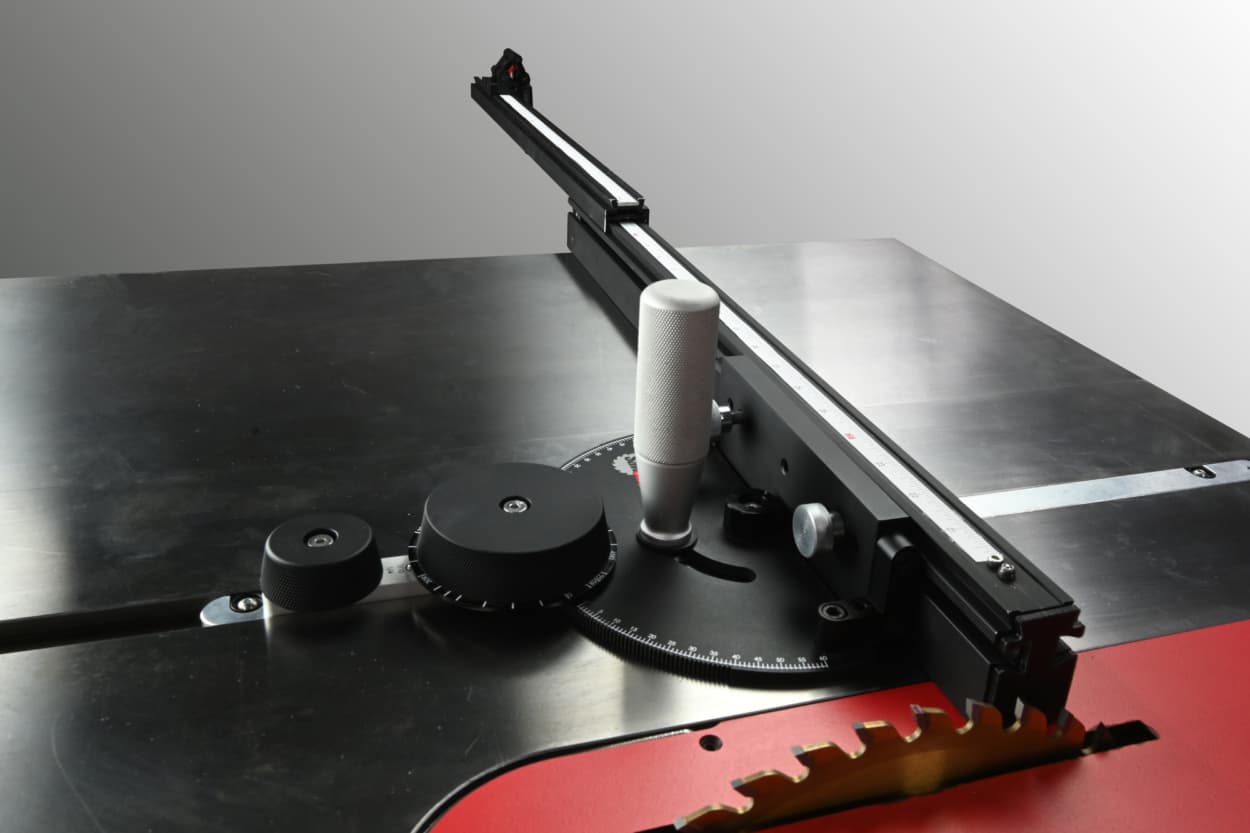

SawStop Revolution miter gauge gives table saw users dial-controlled angle settings, so crosscuts and miters can be set precisely for cabinetry and trim work. The miter angle dial provides pre-set increments of 1 degree, 1/2 degree, 1/4 degree, or 1/10 degree, which lets you choose how fine an adjustment you need for the job. Tactile feedback as the dial clicks into each setting makes it easier to hit the same angle repeatedly across multiple workpieces. Intuitive, tool-free adjustments allow fine-tuning without reaching for wrenches, helping keep setups straightforward in the shop or on site. The system is designed so that angle settings are exact, reliable, and repeatable, supporting consistent joinery on repeated cuts.

Key SawStop Miter Gauge Details For Daily Use

• The miter angle dial offers 1 degree, 1/2 degree, 1/4 degree, or 1/10 degree settings, giving flexibility to match coarse framing cuts or tight-fitting woodworking joints, while tactile clicks help confirm each selection by feel during setup.
• The dial provides tactile feedback at each increment, so the operator can feel when the angle is locked in, which helps maintain consistent settings when cutting multiple parts with the same layout.
• Intuitive, tool-free adjustments let the user change angles and settings by hand, which supports quick fine-tuning between cuts and reduces downtime during layout changes.

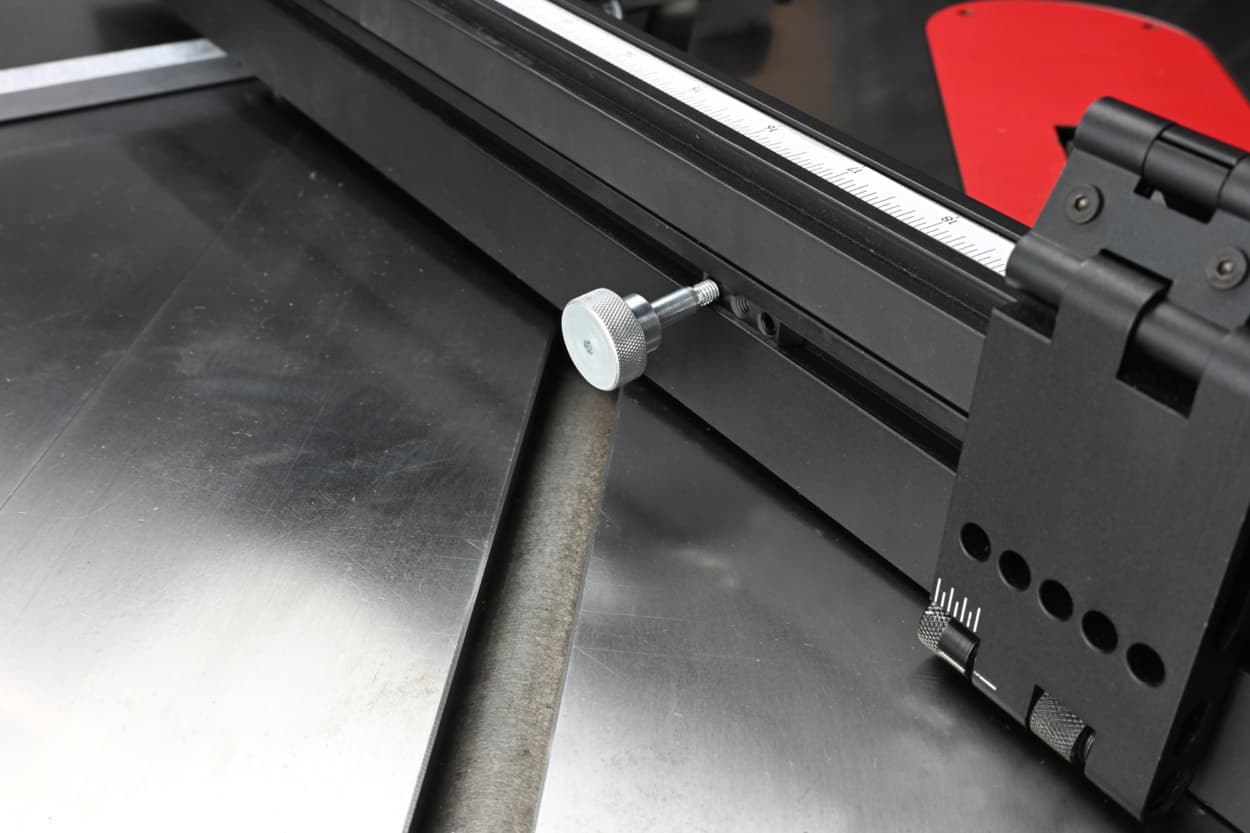

• The sliding wedge system for fence attachments and repeatable stops creates a stable interface for fences and stops, which supports consistent positioning when switching between different fence setups.

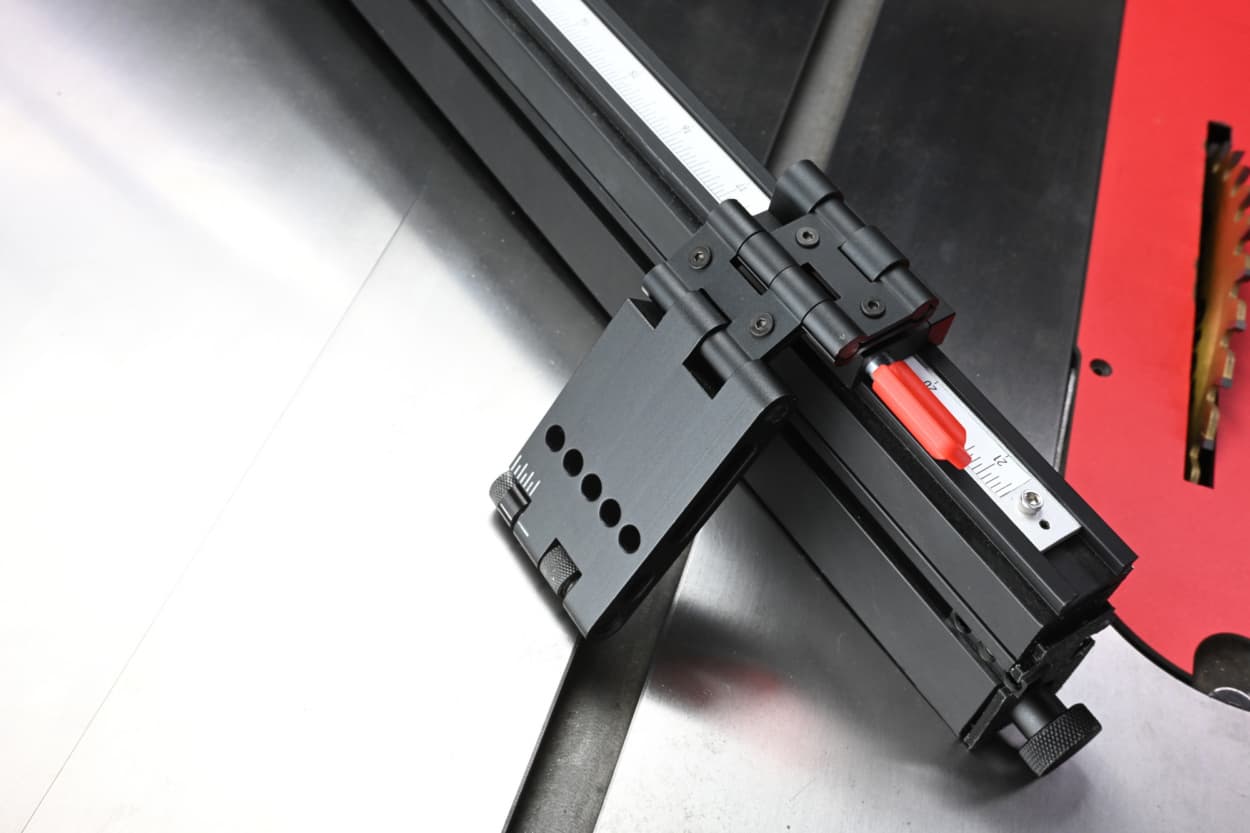

• The tool-free articulating flip stop allows repeatable cuts up to 37-1/2 feet in length, so long workpieces can be cut to matching lengths without remeasuring each piece.
• The flip stop has mounting holes for adding jigs or locking into the wedge system, which gives flexibility to adapt the gauge to specific shop jigs or custom stop arrangements.

Installation And Adjustment On SawStop Saws

This SawStop Revolution miter gauge is specified for use with ICS, PCS, CNS, JSS, and CTS models, so it is designed to fit across multiple SawStop table saw families in one shop. That compatibility lets installers and woodworkers standardize miter gauge setups when using different SawStop saws on a project. Tool-free adjustments allow angle and stop settings to be changed directly on the saw, so switching from crosscuts to complex miters does not require separate tools. The miter angle dial with defined increments supports controlled adjustments during setup, helping bring the gauge quickly into the required position. Together, these details support a workflow where setup, cutting, and fine-tuning stay centered at the saw, reducing time spent stepping away for adjustments.

Using The Revolution Miter Gauge In Real Jobs

Where This SawStop Miter Gauge Performs Best

The SawStop Revolution miter gauge fits ICS, PCS, CNS, JSS, and CTS saws, placing it in both shop-based cabinet work and portable jobsite tasks where those saws are used. In a cabinet shop, the fine miter angle increments of 1 degree down to 1/10 degree support building face frames, miters, and trim that demand tight joints. On larger millwork or built-in projects, the ability to make repeatable cuts up to 37-1/2 feet with the tool-free articulating flip stop helps when production runs call for identical parts. For jobsite use with compatible SawStop saws, intuitive, tool-free adjustments allow angle changes as work progresses through framing, finish, and detail stages. The sliding wedge system for fence attachments and repeatable stops supports switching between different fence configurations as project requirements change, while maintaining a consistent interface on the gauge.

How The Gauge Design Supports Repeatable Results

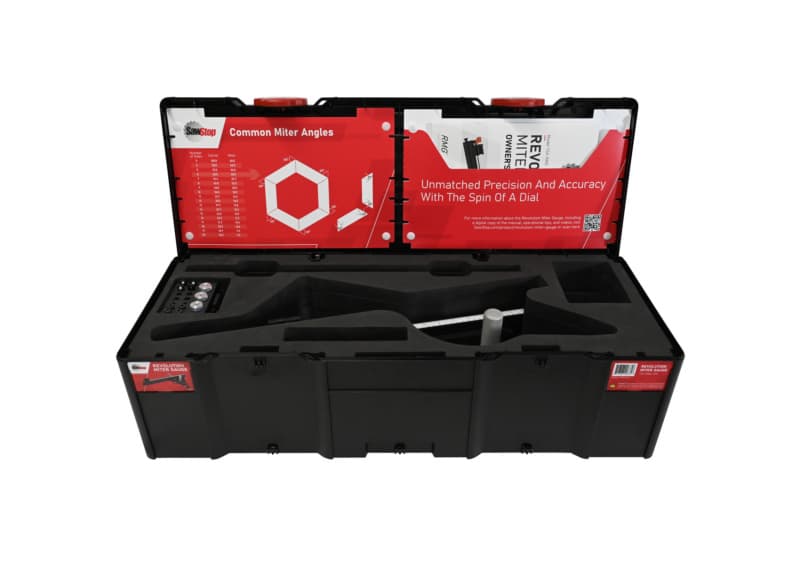

The miter angle dial with pre-set increments of 1 degree, 1/2 degree, 1/4 degree, or 1/10 degree delivers structured angle choices, so users can choose between quick, coarse adjustments or very fine tuning for precise joints. Tactile feedback as the dial clicks into place helps the operator return to the same angle setting across multiple sessions, supporting repeatability when a job spans several days. The sliding wedge system for fence attachments and repeatable stops provides a defined track for fences and stops, helping fences return to a known position after changes. The tool-free articulating flip stop extends repeatability to long workpieces up to 37-1/2 feet, so once length is set, multiple boards can be cut without repeated layout. Mounting holes on the flip stop create a secure point to add jigs or lock into the wedge system, which can streamline specialized setups. A sturdy, portable and stackable Systainer system storage case protects the RMG when not in use and keeps related components together between tasks.

Common Questions About This SawStop Miter Gauge

Select This Gauge For Compatible SawStop Setups

The SawStop Revolution miter gauge with Systainer storage case is built for ICS, PCS, CNS, JSS, and CTS table saws, so one gauge can serve multiple saws in a woodworking operation. The miter angle dial with 1 degree to 1/10 degree increments, tactile feedback, and tool-free adjustments supports exact, reliable, and repeatable angle settings on demanding work. The sliding wedge system, articulating flip stop, and Systainer system storage case combine to support consistent setups, long repeat cuts, and protected storage. For shops using compatible SawStop saws, this miter gauge provides a focused way to bring dial-controlled accuracy into everyday cutting.
