- Large 1/2 BSPP suction inlet increases suction power
- Foot assembly provides stable installation during operation and maintenance
- 90° adjustable fluid inlet and outlet
- New air distributor features protected, spring-loaded seals to help prevent stalling
- Compatible with water-based and solvent-based materials
- Minimal dead zone allows for easier flushing and cleaning
- Aluminum central body with impregnated resin helps prevent corrosion
- Fluid collectors and flanges constructed of polypropylene with 30% carbon fiber
Technical Data
- Maximum Air Pressure: 6 bar (87 psi)
- Pump Displacement: 100 cc/cycle
- Fluid Output at 20 Cycles/Min: 2 L/min (0.52 gal/min)
- Fluid Output at 60 Cycles/Min: 6 L/min (1.58 gal/min)
- Free Flow Rate: 20 L/min (5.20 gal/min)
- Number of Cycles per Liter of Product: 10
- Maximum Material Pressure: 6 bar (87 psi)
- Pressure Ratio: 1:1
- Air Consumption at 15 Cycles/Min at 4 bar (60 psi): 1.32 m³/h (0.78 CFM)
- Maximum Temperature: 50°C (122°F)
- Power Source: Pneumatic
- Sound Level: 69 dBA
- Pump Type: Diaphragm low pressure
- Air Inlet Fitting: 8 x 10
- Material Inlet Port: F 1/2 BSPP
- Material Outlet Port: F 3/8 BSPP
- Fluid Passages: Stainless steel, polypropylene

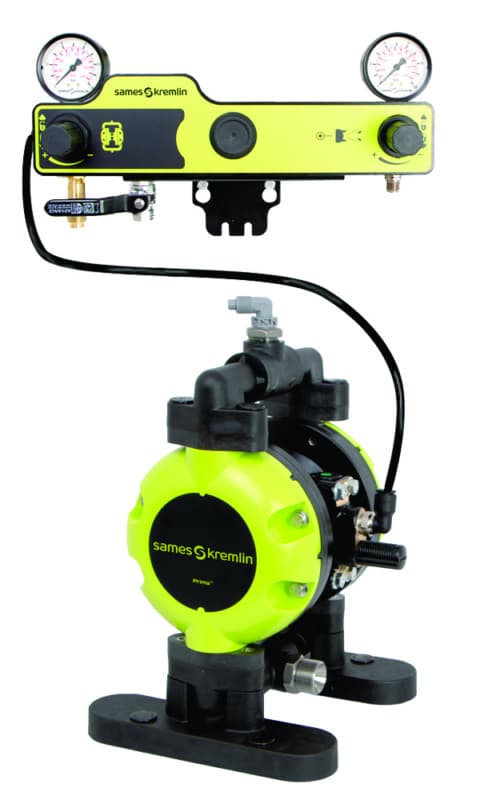

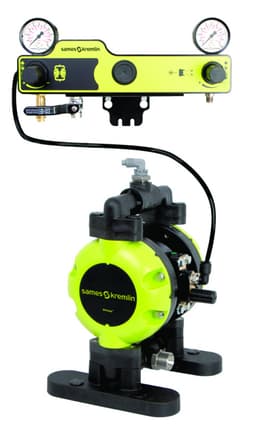

Includes: Prima pump (wall mount), Fpro P gun, (2) regulators, 5-gallon rod, 25' air hose (5/16"), and 25' fluid hose (3/8").
