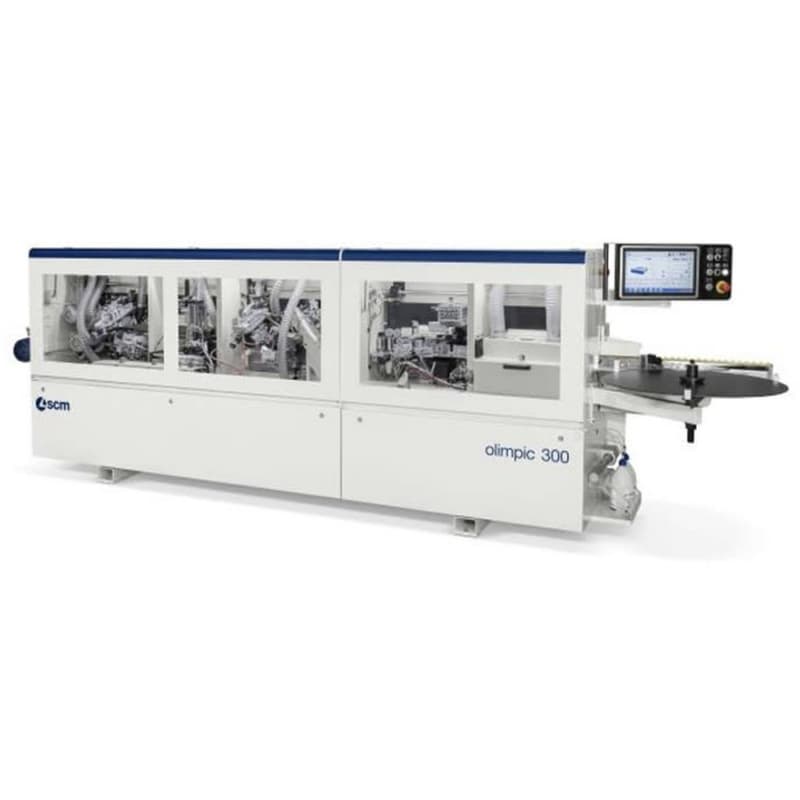

The SCM Olimpic 300 B is a compact, high-quality automatic edge bander designed to meet the needs of small to mid-sized woodworking shops. With its robust construction, user-friendly operation, and advanced machining capabilities, this entry-level edge bander delivers consistent and repeatable results for a wide range of edge banding applications.
Key Features & Benefits
Flexible & Versatile
• Works with both EVA and PUR glue for strong, reliable bonding.
• Supports thin edges, thick edges up to 6mm, and 45° chamfering.
• Handles a variety of materials, including solid wood, PVC, and veneer.
High-Precision Performance
• Sturdy welded steel frame minimizes vibration for superior edge banding quality.
• Pre-milling unit (optional) ensures perfect glue adhesion by preparing panel edges before gluing.
• Automatic glue application system for consistent coverage and strong adhesion.
Smart Automation & Easy Operation
• 10†Touchscreen Eye-S Compact Console with Maestro Active Edge software for intuitive control.
• Single-program recall for fast setup and production changes.
• Remote diagnostics support via Easyware software.
• Integrated barcode scanner compatibility for automated workflow management.
Advanced Machining Capabilities
• Pre-Milling & Gluing System
• VC-V1 Gluing Unit: Hot melt glue application with an independent recirculation system for even distribution.
• SGP-E Glue Pot (Optional): Allows quick glue type/color changes, reducing downtime.
• Automatic Edge Loading: Efficient feed system for both coil and strip edges.
Precision Edge Processing
• K-2 Radius End Cutting Unit: High-frequency motors enable straight, chamfered, and radius cuts.
• R-K Trimming-Chamfering Unit: Dual-motor system for precise top and bottom edge trimming.
• RAS-V Edge Scraping Unit: Removes imperfections for a flawless finish.
• RC-N Glue Scraping Unit: Eliminates excess glue for a seamless panel-edge joint.
• SP-M Brushing Unit: Dual-motor cleaning and polishing system enhances finished appearance.
Industry 4.0 Ready
• Wi-Fi connectivity & data API integration for seamless factory automation.
• Real-time diagnostics, production monitoring, and maintenance tracking for maximized uptime.
• Detailed reporting on production efficiency and system alerts.
- Feed Speed: 10 m/min
- Min. Panel Width: 70 mm
- Edge Thickness: 0.3-3 mm
- Compressed Air Requirments: 6 Bar
- Panel Thickness: 8-60 mm
