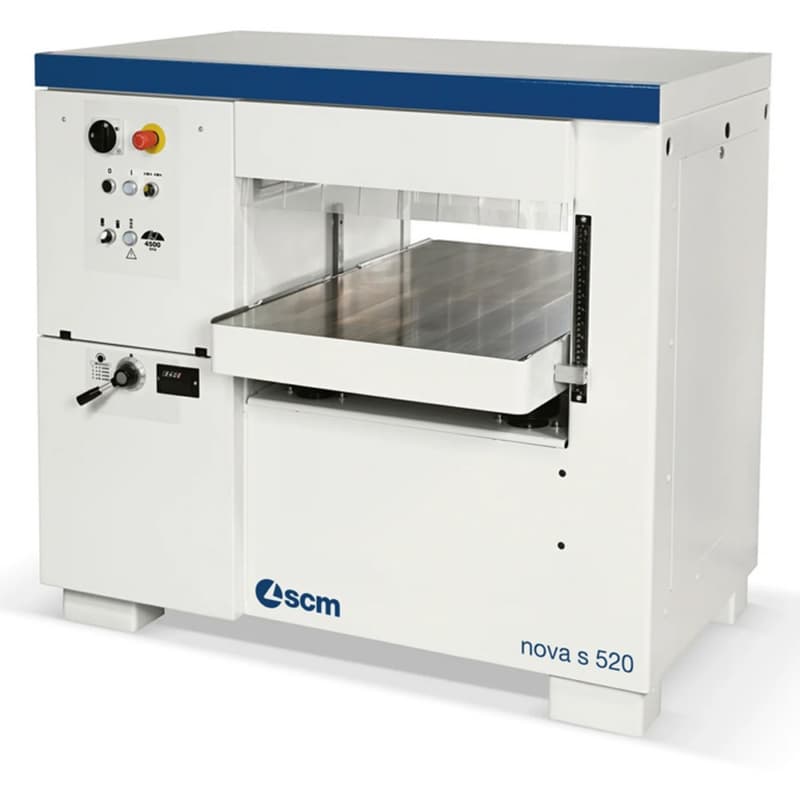

The SCM Nova S 520 - T Planer with TERSA Cutterblock is designed for woodworking professionals who value precision, flexibility, and clean results. With a robust frame, easy roller configuration, and high-efficiency cutter systems, it delivers consistent quality across various materials and job types. Compatible with the Xylent spiral cutterhead, this machine reduces noise while boosting dust control. Experience high output with minimal downtime and long-lasting cutter performance.
Key Features & Benefits
Superior Surface Finish with TERSA and Xylent Cutterblock Options
• TERSA system allows fast knife changes without tools for minimized downtime
• Produces exceptional finish quality across softwoods, hardwoods, and fine veneers
• Xylent cutterhead offers quieter operation and efficient chip extraction
Efficient Dust Extraction and Extended Tool Life
• Three spiral knives in the Xylent head produce smaller chips for easier dust collection
• Lower sound output creates a more comfortable and safer workspace
• Each knife has four cutting edges for extended cutter life and fewer replacements
Quick Configuration for Varied Workpieces
• Interchangeable rollers let you switch functions quickly for diverse job needs
• Adapt easily to light removal tasks and mixed thickness batches
• Operator-friendly setup reduces setup time and improves productivity
Consistent Feeding for Mark-Free Results
• Three feed rollers with vertical movement ensure smooth linear feeding
• Roller system prevents piece stopping and surface notching
• Ideal for continuous production without compromising finish
Stable Worktable Movement for Precise Planing
• Worktable runs on 4 large-diameter screws and 2 linear side guides for maximum stability
• No manual locking needed due to the built-in stability design
• Integrated protective features maintain long-term accuracy and reliability
- Weight: 1,735.000 lbs
- Working Width: 20
- Dimensions of Standard Knives: 520 x 35 x 3mm
- Cutterblock Diameter: 120/4mm/n°
- Cutting Head: TERSA
- Max. Stock Removal: 8mm
- 3 Ph Motor: 11 HP
- Cutterhead Working Width: 520mm
- Min/Max. Working Height on Thicknesser: 3.5mm - 300
- Feed Speed on Thicknesser: 5/8 /12/18 m/min
- Type: Single Surface
