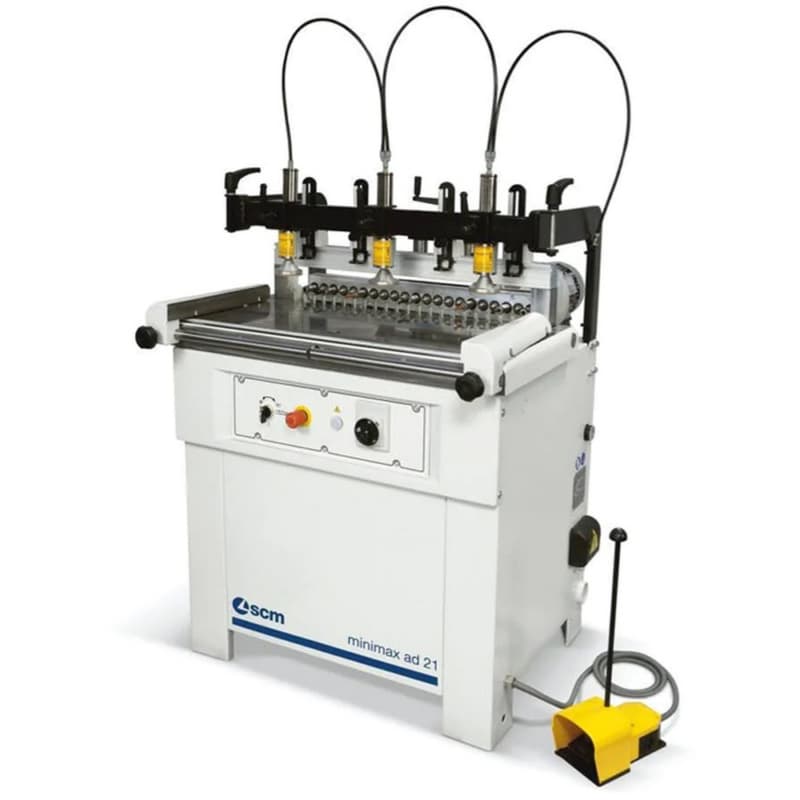

The SCM Minimax AD 21 is a professional-grade single-head boring machine designed for versatility and pinpoint accuracy. Featuring a 21-spindle aluminum drilling head, advanced dust extraction, and flexible fence adjustments, it offers everything craftsmen and small shops need for efficient and clean boring operations.
Key Features & Benefits
Superior Stability and Accuracy
• One-piece aluminum head minimizes vibration
• Mounted on two rectified cylindrical guides for consistent drilling
• 3000 mm fence with retractable stops for large panels
Flexible and Versatile Drilling
• Mechanical revolver turret offers 5 pre-set boring depths
• Quick-change chucks accommodate a wide range of bits
• Adjustable drilling angles (0 deg, 45 deg, 90 deg) for specialized applications
Clean and Safe Work Environment
• Integrated high-efficiency dust extraction system
• Keeps internal components clean and workspace dust-free
• Enhances operator health and machine lifespan
Ergonomic Design for Operator Comfort
• Front-facing controls ensure ease of access and adjustment
• Optional motorized head movement simplifies angle adjustments
• Precision lateral fence positioning with mechanical gauge
- Max. Tool Diameter: 1.57" (40 mm)
- Max. Panel Thickness: 3.25"
- No. Of Spindles: 21
- Spindle Spacing: 32 mm
- Type: Manual Drilling
- Spindle Speed: 2800 RPM
- Work Table Dimensions: 35.6" x 14.6" (905 x 372 mm)
- Max. Panel Dimensions: 32.75" (833 mm)
- Work Table Height: 35.5" (900 mm)
- Min/Max Panel Height: 0.375" - 3.25" (10 - 85 mm)
