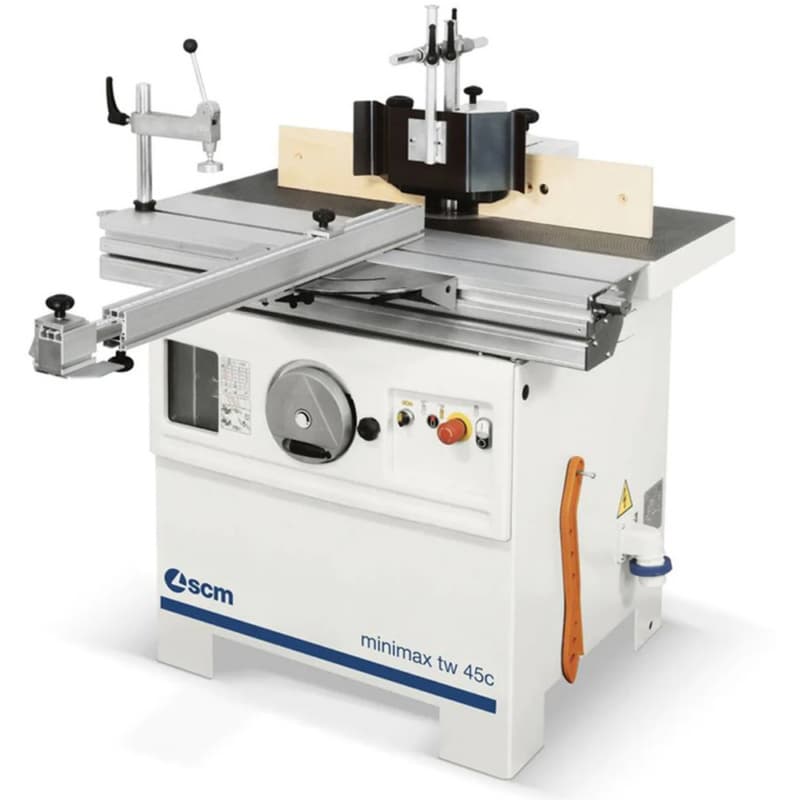

The SCM TW 45c Spindle Moulder is built for professionals seeking accuracy, versatility, and reliability in one compact machine. Designed with a cast iron structure and sliding table, this shaper offers superior support for large workpieces and high-precision cuts. Whether you're moulding or tenoning, this machine delivers consistent results with added safety and ease of use. Optional tilting spindle and high-tech accessories provide further customization for your unique workshop needs.
Key Features & Benefits
Solid Cast Iron Body Ensures Durability and Stability
• Professional and very sturdy with a heavy-duty cast iron frame
• Enclosed cast iron “cup" protects internal components from sawdust and debris
• Built to withstand continuous industrial use with minimal maintenance
Micrometric Fence Adjustments for Accurate and Safe Cutting
• Precise and safe machining with spindle moulder fence featuring micrometric adjustment
• Equipped with vertical and horizontal pressers for enhanced stability
• Delivers repeatable cuts with ease and confidence
Optional Tilting Spindle Expands Machining Flexibility
• Available with a 45-deg tilting spindle toward the inside of the machine upon request
• Supports complex moulding profiles and angled shaping tasks
• Enables more creative and diverse woodworking outcomes
270 mm Sliding Table Increases Workpiece Support and Tenoning Capability
• The 270 mm sliding table provides a greater support, very useful also for tenoning
• Allows effortless handling of large panels and long stock
• Improves cutting precision and operator comfort
Support Frame Option Enhances Accuracy with Larger Workpieces
• Precise cuttings, even for large work pieces, with the support frame (option) with telescopic fence
• Perfect for panel work and tenoning longer components
• Increases accuracy and efficiency with fewer manual adjustments
Digital-Ready Spindle Hood Enables Fast Repositioning
• Optional spindle moulder hood includes adjustable guides with rack system and mechanical digital readout
• Memory system retains positioning, even after removal
• Minimizes downtime between tool changes and setups
Handles Large Moulding Tools for Greater Productivity
• Maximum tool diameter during moulding operations is 240 mm
• Accommodates a wide range of spindle tooling for complex profiles
• Reduces changeover time and boosts workflow speed
- Weight: 642.000 lbs
- Max. Diameter Of The Profiling Tool: 8.26" (210 mm)
- Max. Diameter Of The Tenoning Tool With Spindle Diameter 40"-50": 10.82" (275 mm)
- Max. Useful Spindle Length: 4" (100 mm)
- Spindle: 3500/6000/8000/10000 RPM
