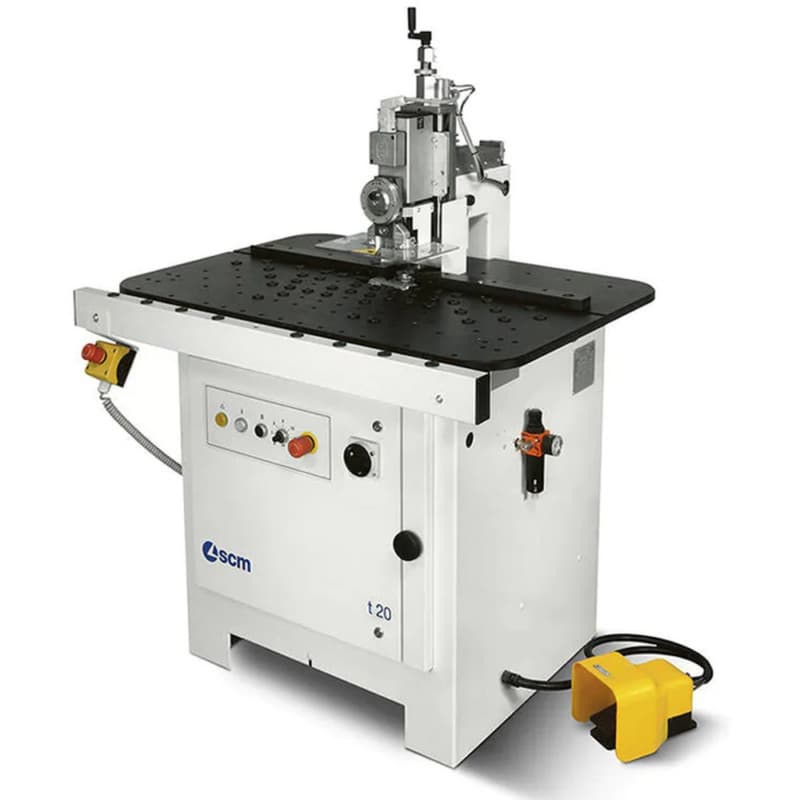

SCM’s advanced trimming machine delivers high-precision results for shaped panels, even with tilted edges. Engineered for versatility and ease, it includes unique SCM-exclusive systems that allow rapid changeovers without the need for tools. Designed to simplify setup while enhancing accuracy, it’s ideal for manufacturers seeking efficient, high-quality edge trimming across complex profiles. The system supports tight production schedules with minimal downtime and operator intervention.
Key Features & Benefits
Tool-Free Precision with SCM’s Exclusive Pivoting Adjustment System
• The trimming group features a pivoting ring with a decimal dial for fine vertical copier tuning
• Adjustment takes just seconds, enabling quick setup without tools
• Eliminates operator errors and ensures repeatable, high-accuracy trimming
Tilt-Edge Capability for Complex Panel Designs
• Handles shaped panels with tilted edges up to 45-deg
• Maintains cutting precision even on angled geometries
• Expands production flexibility for advanced furniture and panel design
Rapid Changeovers with Interchangeable Copying Devices
• Quick-swap copying units minimize machine downtime during profile changes
• No horizontal readjustment required between operations
• Ensures consistent results and increases throughput during varied production runs
- Weight: 478.000 lbs
- Max. Edgebanding Thickness: 4 mm
- Min/Max Panel Height: 14 - 80 mm
- Min. Panel Length/Width: 200/160 mm
- Min. Internal Radius: 25 mm
- Variable Cutters Speed: 9000 - 15000 RPM
