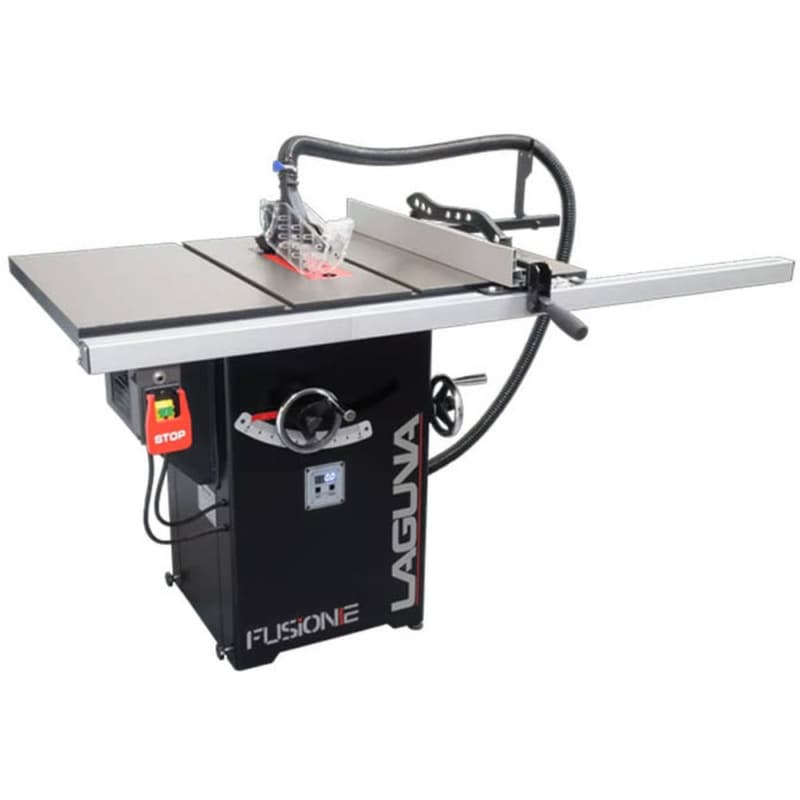

Laguna F2 Fusion Tablesaw is made for demanding woodworkers who seek precision, durability, and enhanced dust collection. Built with high quality components, the F2 Fusion features a full cabinet body, a European Hi-Lo fence, and a powerful 1.75HP TEFC motor. With an emphasis on smooth operation and superior dust collection, this saw provides you clean, accurate cuts for solid wood processing and panel processing equipment applications. Designed to be more refined, precise and efficient, the F2 is a true successor to the original Fusion Table Saw.
Key Features and Benefits
Precision and Stability
• Trunnion mounted to the body, not the table, ensuring long-term stability and accuracy.
• Polished cast-iron table and wings provide a solid, vibration-free cutting surface.
• Tool-less blade lock allows for quick and easy blade changes.
• Premium arbor and motor bearings enhance performance and longevity.
• Digital readout (DRO) for tilt angle offers precise adjustments.
Superior Cutting and Performance
• European Hi-Lo fence provides versatility for different cutting applications.
• Included 10" x 40T carbide-tipped blade delivers clean, accurate cuts.
• Fence-mounted push stick ensures operator safety.
• Miter gauge included for precise angled cuts.
Advanced Dust Collection System
• Fusion Dust Collection System captures dust efficiently for a cleaner workspace.
• Overhead dust collection improves air quality and visibility.
• Sealed bottom design enhances overall dust management.
Convenience and Safety
• Quick-release blade guard and splitter for fast, tool-free adjustments.
• Riving knife included for added safety against kickback.
• Mobility built into the cabinet for easy positioning in the shop.
• On-board tool storage keeps accessories accessible and organized.
• NEMA Plug: 5-15P with an optional 220V upgrade available.
- Blade Guard Dust Port Size: 1-1/2"
- Blade Tilt Direction: Left
- Dust Port Size: 4"
- Max Blade Tilt: 45°
- Max Rip Right Of Blade With Included Fence & Rails: 37"
- Max. Depth of Cut at 90°: 3-1/8"
- Maximum Blade Diameter: 10"
- Rip Fence: Hi/Low Euro Fence w/ Dual Readout
- Table Size: 44" X 27"
- Table Surface: Cast Iron Main Table Cast Iron Wings
- Wheel System: Built-In
- Arbor Diameter: 5/8"
- Arbor Speed: 4,500 RPM
- Blade: 10" x 60T
- Footprint: 39-3/8" x 66-3/4"
- HP: 1.75 HP
- Max. Depth of Cut at 45°: 2-1/8"
- Saw Blade Diameter: 10"
- Style: Cabinet
- Table Height: 35"
- Weight: 275.000 lbs
