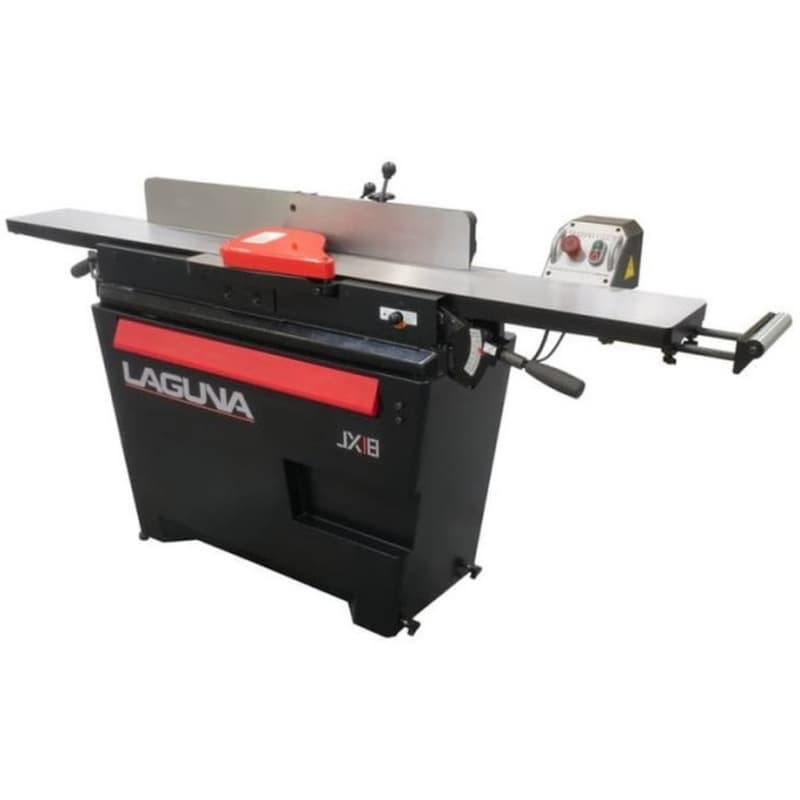

The Laguna JX|8 II Jointer offers a perfect balance of strength, control, and precision. Powered by a 3HP motor and equipped with the ShearTec II spiral cutterhead, it delivers superior cut quality, quiet operation, and advanced user protectionideal for serious woodworkers and demanding projects.

Key Features & Benefits
ShearTec II Cutterhead: Superior Finish with Less Noise
• Features durable carbide inserts for smooth, tear-free results
• Low-noise design improves comfort and focus
• Blades are easy to rotate, extending lifespan and reducing maintenance

Precision with Parallelogram Table Adjustments
• Arc-style movement ensures consistent cutterhead distance
• Improves accuracy on both short and long runs
• Integrated infeed roller supports longer stock and prevents sag

Enhanced Safety and Comfort
• Emergency knee-stop bar provides instant machine shutoff without letting go
• Ergonomic base design with toe-kick allows closer positioning for better control
• Cast-iron tables and fence minimize vibration for stable operation

Mobility & Convenience Built In
• Integrated wheel system makes relocating the jointer effortless
• Heavy-duty cast-iron frame provides unmatched stability
• Tool-free setup adjustments simplify daily use

• Weight: 999,999.000 lbs
• Working Width: 8"
• Cutterblock Diameter: 3-1/8"
• Cutting Head: ShearTec
• Surfacing Table Length: 72"
• Fence Tilt: 45°/90°
• Cutterhead Speed: 5,500 RPM
• Worktable Dimensions: 8" x 72"
• Max. Cutting Depth: 1/8"
• Motor: 220V 3HP 1 Phase 60hz/12 Amp
• Table Height from Floor: 31"
• Fence Size: 38" x 4-3/4" Cast Iron
• Dust Port: 4"
• Shipping Dimensions: 40" x 18" x 26" – 139 lbs. 82" x 25" x 17" – 319 lbs. (Two Boxes)
• CSA: Yes
• Infeed Table Pull-Out Extension: 8"
• Rabbetting Capacity: 1/2"
• Safety Bar Shut-Off: Yes
• Bracket To Mount Light: No
• 110V Outlet For Light: No
• Bracket To Mount Feeder: No
• Plug (NEMA 6-20P): Yes
• No. of Inserts: 54 x 4-Sided Carbide, 6 Row
• Bed Adjustment: Parallelogram
• Approximate Set Up Dimensions: 75-1/2" x 26-1/2"
• Footprint: 32-1/2" x 15-1/2"
