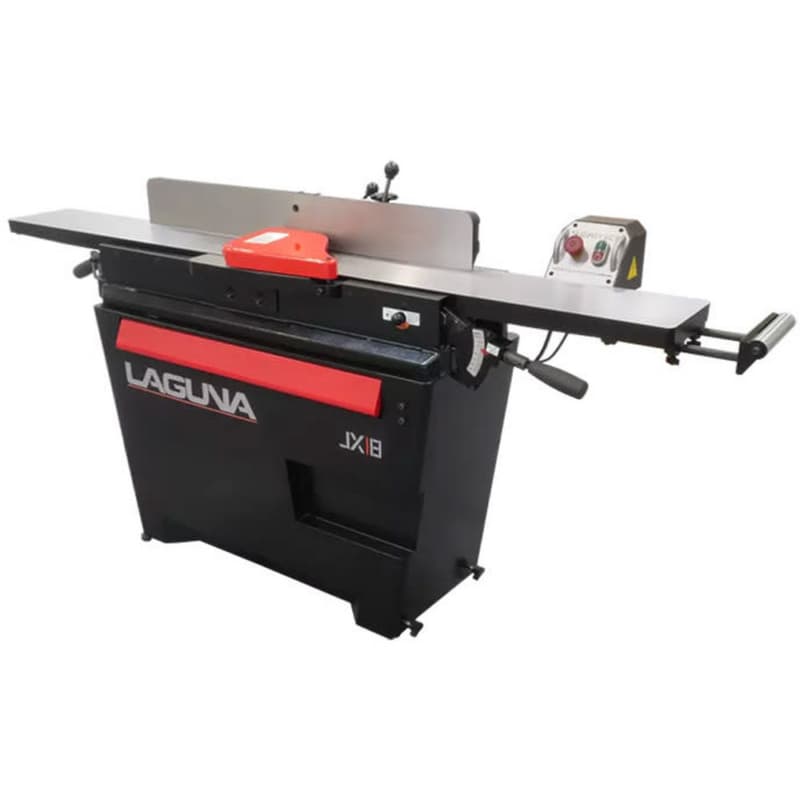

The Laguna JX|8 I Jointer is a precision-built machine designed to handle hardwoods with ease while prioritizing user safety and comfort. Outfitted with the QuadTec II cutterhead, parallelogram tables, and an emergency knee-stop system, it’s an ideal addition to any pro-level workshop.
Key Features & Benefits
QuadTec II Cutterhead: Longer Life, Cleaner Cuts
• Features solid carbide inserts (15x15x2.5mm) with four cutting edges
• Handles dense and figured hardwoods effortlessly
• Quieter and smoother than traditional straight knives
Precision with Parallelogram Table System
• Maintains equal spacing from cutterhead for consistent depth of cut
• Reduces snipe and ensures smoother transitions
• Quick adjustments without the need for re-calibration
Built-In Safety & Ergonomics
• Emergency knee-stop bar shuts off power from anywhere along the front
• Ergonomic toe-kick base allows closer stance and safer handling
• Includes infeed support roller to help manage longer boards
- Working Width: 8"
- Cutterblock Diameter: 3-1/8"
- Cutting Head: QuadTec
- Surfacing Table Length: 72"
- Fence Tilt: 45°/90°
- Cutterhead Speed: 5,500 RPM
- Worktable Dimensions: 8" x 72"
- Max. Cutting Depth: 1/8"
- Motor: Â 110V 1.75HP 1 Phase 60hz/15 Amp
- Table Height from Floor: 31"
- Fence Size: 38" x 4-3/4"
- Dust Port: 4"
- Shipping Dimensions: 40" x 18" x 26" – 139 Lbs. 82" x 25" x 17" – 319 Lbs. (Two Boxes)
- CSA: Â Yes
- Infeed Table Pull-Out Extension: Â 8"
- Rabbetting Capacity: Â 1/2"
- Safety Bar Shut-Off: Â Yes
- Bracket To Mount Light: Â No
- Cutterhead Diameter: Â 3-1/8"
- 110V Outlet For Light: Â No
- Bracket To Mount Feeder: Â No
- Plug (NEMA 5-15P): Â Yes
- Insert Knives: Â 20 x 4-Sided Carbide, 4-Row
- Bed Adjustment: Â Parallelogram
- Approximate Set Up Dimensions: Â 75-1/2" x 26-1/2"
- Footprint: Â 32-1/2" x 15-1/4"
