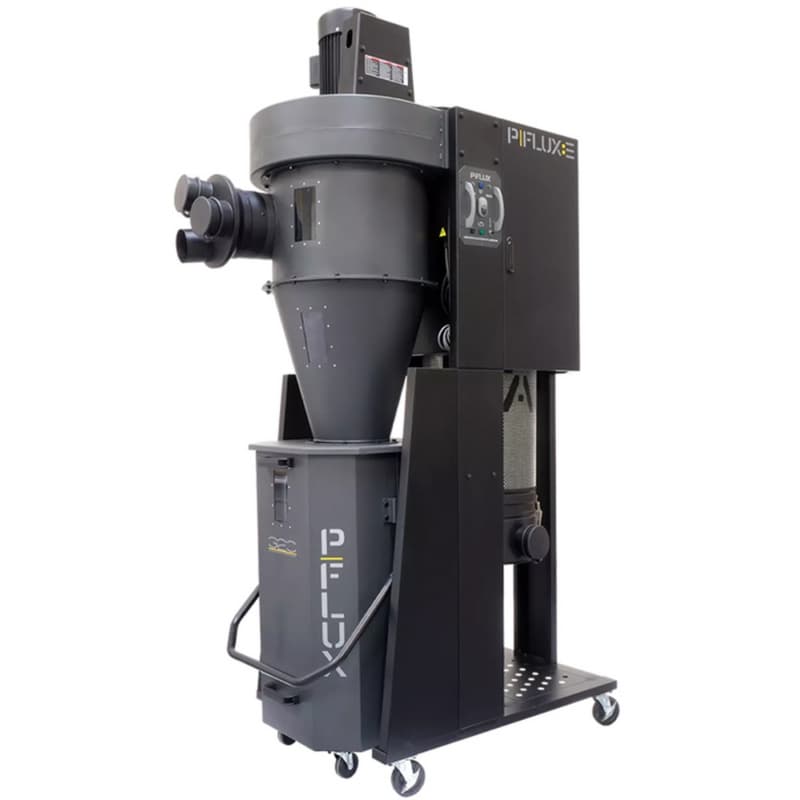

The Laguna P|Flux: 3 delivers industrial-grade dust collection without compromising on cleanliness, quietness, or control. With a 3 HP motor, HEPA filtration, and intuitive LED monitoring, this powerhouse is ideal for demanding woodshops. Whether you're working with multiple machines or switching between setups, the P|Flux: 3 adapts with effortless ease.
Key Features & Benefits
Intelligent Shop Monitoring
• LED alerts notify when the collection drum is full or when the filter requires cleaning.
• Includes remote control with LED indicators for real-time diagnostics.
• Reduces downtime and helps maintain peak airflow performance.
Advanced Drum & Bag Management
• Low-pressure suction holds the collection bag in place no more bag collapse or blow-in.
• Auto-sealing drum connects to internal ducting without manual effort.
• Use with or without a bag using the built-in shut-off valve.
Quiet, Contained Operation
• Swing-away soundproof doors lower noise levels to just 76 dB(A).
• Fully enclosed system helps contain dust and streamline your workspace.
• Ideal for shops with space constraints or low-noise requirements.
Industry-Leading HEPA Filtration
• Black HEPA filter traps 99.2% of particles down to 0.4 microns.
• MERV 16+ rating provides hospital-grade air purification.
• Metal end cap includes 4" hookup for easy dust disposal.
Raw Suction Power for High-Demand Workflows
• 3 HP motor powers up to 2817 CFM and 11.2″ static pressure.
• ISO-balanced radial fin impeller minimizes vibration and wear.
• 8″ inlet with 3 x 4″ ports gives you layout flexibility for tool connections.
- Motor Specs: 3HP
- Electrical Specs: 220V / 60Hz / 1PH / 3450 RPM
- Running AMP: (8" Inlet) 22A at 220V;
- Max. Airflow: 2718 CFM (Cubic Feet Per Minute)
- Shop Setting Air Flow: 1624 CFM
- Max Static Pressure: 11.2"
- Fan Size: 15.5"
- Filtration Area: 102 sq/ft (9.5 sq/m)
- Inlet: 8" (8" x 4" x 3 Ports)
- Remote Control: High Frequency
- Auto Clean: 10 min. Interval 10 Seconds F+R
- Collection Capacity: 46 Gallon Octagon Drum
- Shipping Weight: 441 lbs. (200 kg)
- Decibel Reading: 76 dB (@9.8ft)
- Assembled Dimensions: 48" x 28" x 88"
- Packing Size: 50" x 31.5" x 50.6" (127 x 80 x 128.5 cm)
- Machine Weight: 372 lbs. (169 kg)
- Cord: 8'
- Cartridge Filter: HEPA, 15.74" x 35.43" (40 x 90 cm) x 1pc
