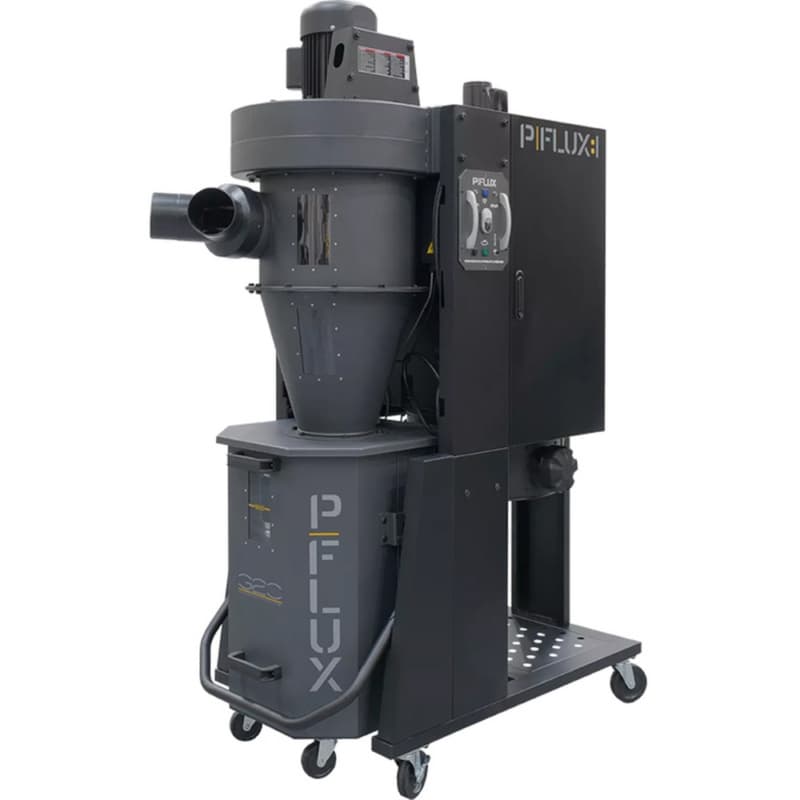

The Laguna P|Flux: 1 is a premium cyclone dust collector engineered for serious woodworkers who demand ultra-clean air, smart automation, and whisper-quiet performance all in a compact footprint. Featuring HEPA filtration, intelligent diagnostics, and Laguna’s patented low-pressure drum system, it’s the perfect solution for high-performance dust extraction in smaller or custom workshops.
Key Features & Benefits
HEPA-Level Filtration for Superior Air Quality
• HEPA filter captures 99.2% of particles down to 0.4 microns.
• MERV 16+ rating ensures your shop air exceeds industry standards.
• Protects both your lungs and your equipment with next-level filtration.
Smart Operation with Built-In Monitoring
• LED lights indicate when the drum is full or when the filter needs cleaning.
• Durable anodized aluminum control panel for intuitive operation.
• High-frequency remote lets you activate the unit from anywhere in the shop.
Intelligent Drum System
• Low-pressure design holds the collection bag firmly without risk of bag blowout.
• Drum auto-connects to internal ducting when lifted no manual latches required.
• Integrated shut-off valve allows bagless operation when needed.
Engineered for Quiet Performance
• Acoustic foam-lined doors reduce operating noise.
• PU caster wheels on the base and drum make repositioning effortless.
• Steel impeller delivers up to 1314 CFM and 10.1″ static pressure all with minimal vibration.
- Motor Specs: 1.5HP
- Electrical Specs: 110V/220V / 60Hz / 1PH / 3450 RPM
- Running AMP: (with 6" inlet) 18.8A at 110V; 9.4A at 220V
- Max. Airflow: 1314 CFM (Cubic Feet Per Minute)
- Shop Setting Air Flow: 900 CFM
- Max Static Pressure: 10.1"
- Fan Size: 13.5"
- Filtration Area: 48.4 sq/ft (4.5 sq/m)
- Inlet: One 6" or Two 4" Ports
- Remote Control: High Frequency
- Auto Clean: 10 min. Interval 10 Seconds F+R
- Collection Capacity: 25 Gallon Octagon Drum
- Shipping Weight: 287 lbs. (130 kg)
- Decibel Reading: 70 dB (@9.8ft)
- Assembled Dimensions: 42" x 25" x 68"
- Packing Size: 45" x 28.3" x 47" (114.5 x 72 x 119.5 cm)
- Machine Weight: 232 lbs. (105 kg)
- Cord: 8'
- Cartridge Filter: HEPA, 15.74" x 19.68" (40 x 50 cm) x 1pc
