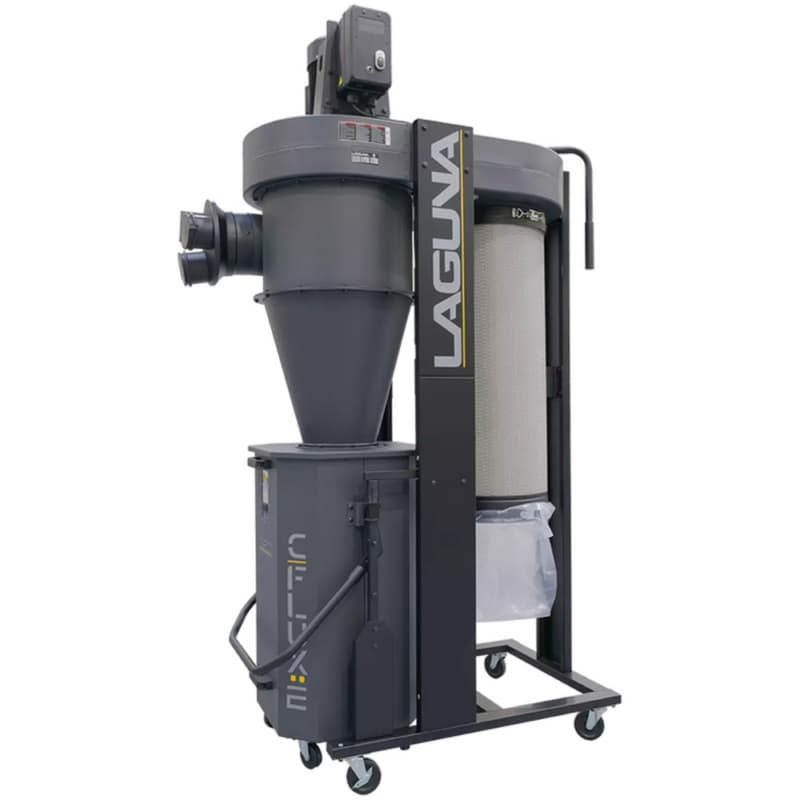

Engineered for the serious woodworker, the Laguna C|Flux: 2 Dust Collector combines powerful suction, optimized cyclone performance, and industry-leading filtration to provide unmatched dust control. With a 2HP motor, horizontal chute design, and pleated filter media rated to 0.2 microns, it delivers the airflow and air quality required in busy shops and pro-level environments.
Key Features & Benefits
Optimized Cyclone Design
• Horizontal chute and reconfigured airflow improve suction consistency.
• Cyclonic separation captures heavy particles before they reach the filter.
• Handles multiple machine connections with ease.
Filtration That Exceeds Standards
• Equipped with a 1-micron pleated filter for advanced particle capture.
• 99.97% filtration efficiency for particles between 0.2 and 2 microns.
• 109 sq/ft of filter media allows maximum airflow while trapping fine dust.
Simple, Effective Maintenance
• 270° manual filter cleaner removes buildup with just a few turns.
• Transparent dust drum window allows quick level checks without guesswork.
• Durable components and intuitive design support daily use and minimal downtime.
- Motor Specs: 2HP
- Electrical Specs: 220V/ 60Hz / 1PH / 3450 RPM
- Running AMP: (6" inlet) 14A at 220V
- Max. Air Volume: 1740 CFM (Cubic Feet Per Minute)
- Shop Setting Air Flow: 1166 CFM
- Max Static Pressure: 9.3"
- Fan Size: 14.5"
- Filtration Area: 102 sq/ft (9.5 sq/m)
- Inlet: 6" (8" x 6") Or (8" x 4" x 2 Ports)
- Remote Control: High Frequency
- Collection Capacity: 46 Gallon Octagon Drum
- Shipping Weight: 377 lbs. (171 kg)
- Decibel Reading: 88 dB (@9.8ft)
- Assembled Dimensions: 48" x 28" x 87"
- Packing Size: 50" x 31.5" x 50.6" (127 x 80 x 128.5 cm)
- Machine Weight: 301 lbs. (140 kg)
- Cord: approx 8ft cord
- Cartridge Filter: 1 Micron, 15.74" x 35.43" (40 x 90 cm) x 1pc
