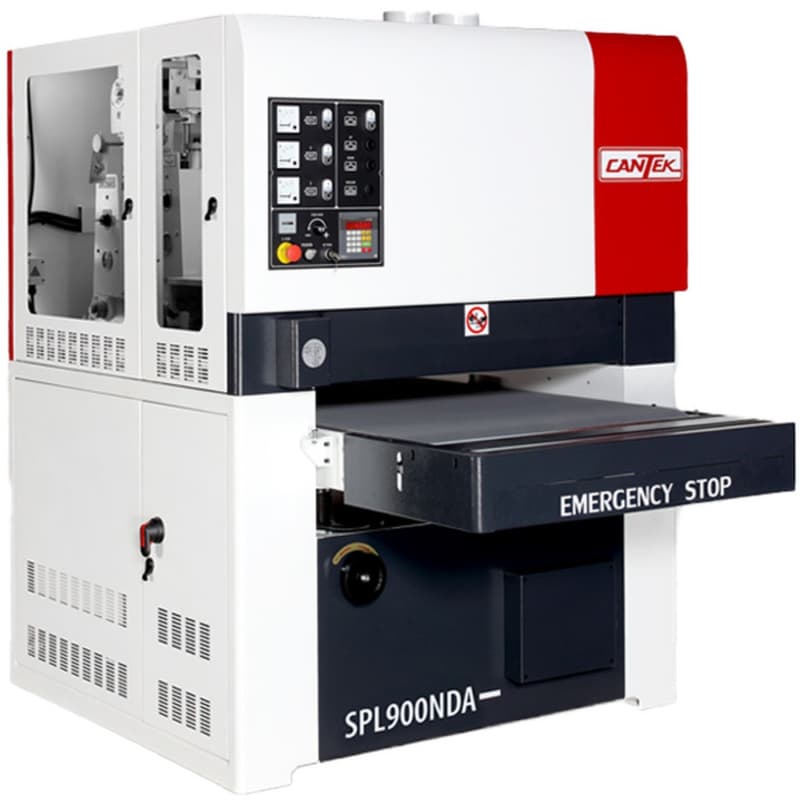

The Cantek SPL900NDA 36" Planer Sander merges planing and sanding into one seamless operation for unparalleled efficiency. Featuring a spiral insert cutterhead, independent sanding motors, and inverter-driven variable feed speed, it’s built for shops that value precision and productivity. This machine combines industrial-grade construction with operator-friendly controls and safety features, making it a smart addition to any woodworking workflow.
Key Features & Benefits
Spiral Insert Cutterhead for Fine Finish and Energy Savings
• Delivers superior stock removal with less horsepower
• Runs quieter than traditional cutterheads for a better working environment
• Requires less maintenance and extends abrasive life
Digital Thickness Control for Precision and Consistency
• Motorized table movement for accurate adjustments
• High-resolution control ensures consistent sanding results
• Easy-to-use digital interface for precise material processing
Independent Motors for Enhanced Performance
• Each sanding unit is powered by its own motor for consistent performance
• Allows for precise control and reduces operational strain on motors
• Increases reliability and longevity of the machine
Variable Feed Speed Adjustment for Optimal Results
• Inverter-driven speeds adapt to different materials
• Provides precise control over feed rate for varied sanding applications
• Reduces wear and tear on the machine and enhances efficiency
High-Quality Rubber Conveyor Belt and Pneumatic Tracking
• Automatic belt tracking maintains optimal alignment
• High-quality rubber ensures consistent material handling
• Ensures reliable operation and reduces downtime due to belt misalignment
Safety and Convenience Features for Enhanced Operation
• Safety switches on all access doors prevent machine operation when doors are open
• Clear plastic windows offer visibility without interrupting operation
• LED indicators provide real-time machine status for better monitoring
- Net Weight: 5,048 lbs (2,290 kg)
- Shipping Weight: 5,489 lbs (2,490 kg)
- Belt Size: 37" x 75"
- Compressed Air Requirements: 85 PSI (6 Kg/cm2)
- Dimensions: 82" x 57" x 77" (2100 X 1455 X 1970 mm)
- Dust Collection Requirements: 4,830 CFM (8,155 M3/HR)
- Electrical Requirements: 230/3/60= 168 FLA
- Feed Motor: 13 - 59 FPM (4 to 18 m/min)
- Min/Max Working Thickenss: 4.7" (120 mm)
- Min. Part Length: 16.9" (430 mm)
- Motor: 30 HP/ 15 HP/ 15 HP
- No. Of Heads: 3
- Shipping Dimensions: 88" x 70" x 82" (2250 X 1780 X 2100 mm)
- Table Rise/Fall Motor: 0.25 HP
- Working Width: 36" (915 mm)
