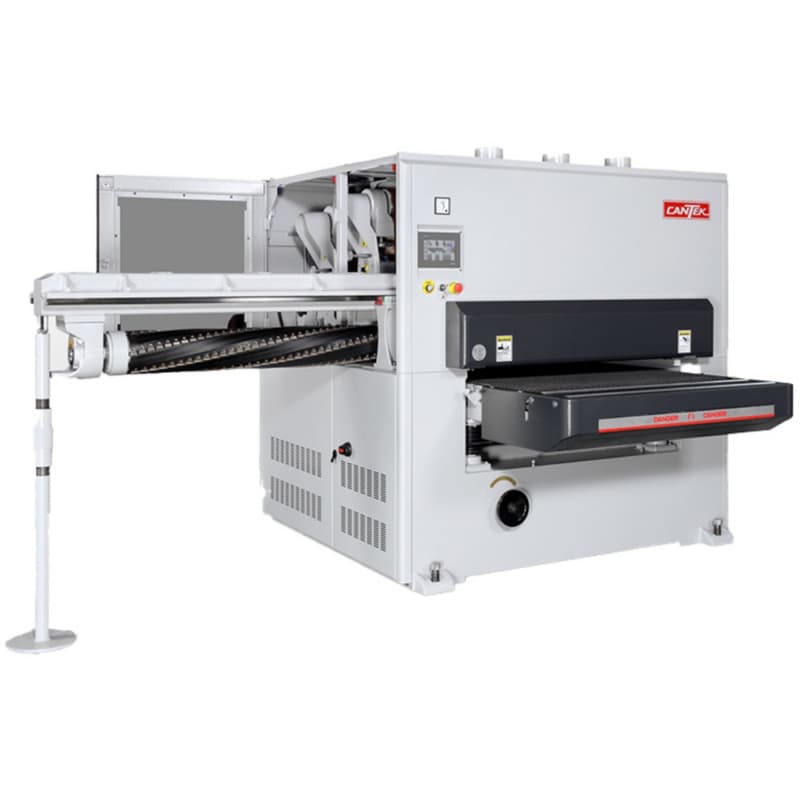

Boost productivity and achieve exceptional surface finishes with the Cantek SR1300NDA. Designed to handle planing and sanding in a single pass, this 52" planer sander is equipped with a spiral insert knife cutterhead that reduces energy use while delivering top-tier results. The machine’s extra-heavy-duty constructionincluding cast-iron pressure shoes and sanding head assembliesensures performance under rigorous, high-production conditions. Built with ease-of-use and maintenance in mind, the SR1300NDA is the perfect all-in-one solution for demanding operations.
Key Features & Benefits
Streamlined Planing & Sanding
• Combines both processes in a single pass to save time and effort
• Spiral cutterhead delivers a smooth finish while consuming less power
• Rotatable knives reduce downtime and extend cutter life
Smart Touchscreen Controls
• Intuitive interface for quick feed speed and thickness adjustments
• Precision control of motor power and process parameters
• Variable feed speeds accommodate various material types
High-Quality Sanding Results
• Independent motors for sanding heads ensure consistent performance
• Dual sanding heads provide optimal sanding coverage and reduce grit swaps
• Delivers excellent stock removal and surface finish
Enhanced Safety Features
• Anti-kickback device ensures safe cutterhead operation
• Access-door interlocks prevent accidental machine activation
• Transparent inspection windows allow safe visual monitoring
Maintenance-Friendly Design
• Integrated air jets keep sanding heads clean, preserving belt life
• Maintenance reminders support proactive service scheduling
• Pneumatic belt tensioning with quick-release simplifies belt changes
- Net Weight: 11,023 lbs. (5000 kg)
- Shipping Weight: 12,125 lbs. (5,550 kg)
- Abrasive Belt Speed: 53" x 75"
- Belt Size: 53" x 75"
- Compressed Air Requirements: 85 PSI (6 Kg/cm2)
- Compressed Air Volume: 18 CFM (0.5M3/Min)
- Dust Collection Requirements: 8,063 CFM (13,700 M3/HR)
- Electrical Requirements: 460/3/60 Amps
- Feed Belt Speed: 13 - 59 FPM (4 to 18 m/min)
- Feed Motor: 5 HP
- Machine Dimensions: 98" x 82" x 79" (2500 x 2100 x 2025 mm)
- Max. Thickness Opening: 4.7" (120 mm)
- Min/Max Working Thickenss: 4.7" (120 mm)
- Min. Part Length: 16.9" (430 mm)
- Motor: 40 HP /25 HP/ 20 HP
- No. Of Heads: 3
- Pass Line Height: 37" (950 mm)
- Shipping Dimensions: 115" x 79" x 82" (2930 x 2030 x 2090 mm)
- Table Rise/Fall Motor: 1 HP
- Working Width: 52" (1320 mm)
