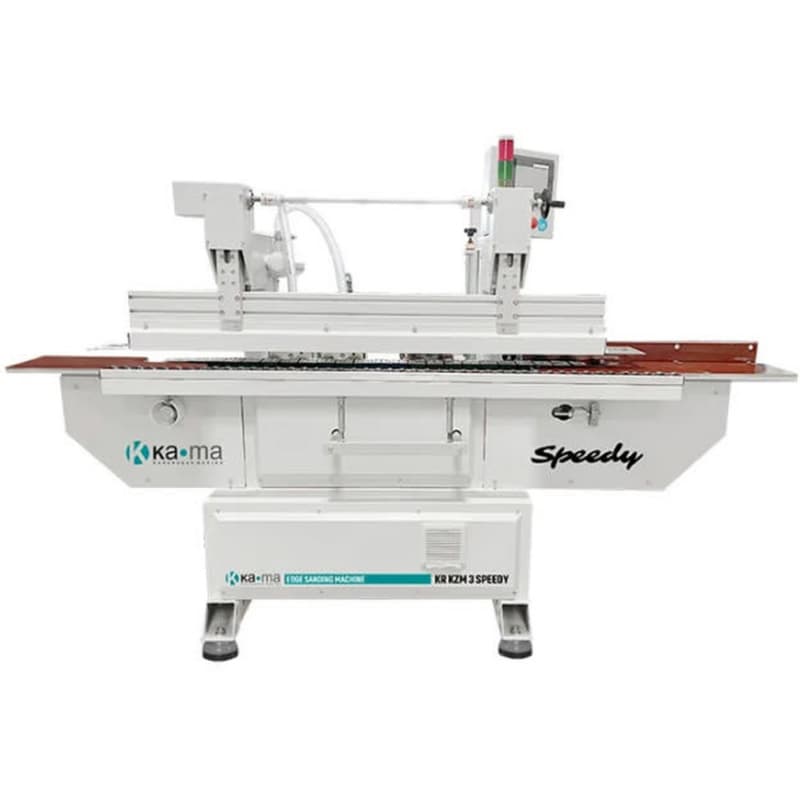

The Kama KR-KZM 3 is a compact yet powerful edge sanding machine designed for professional woodworkers seeking reliable performance in edge finishing. With a 98" belt length, oscillating system, and a tilting front table, this machine provides excellent versatility for straight or angled edge sanding in small to medium-sized shops.
Standard Equipment on the Kama KR-KZM 3 Edge Sander:
- Disc Brush Sanding Unit: The Disc Brush Sander with adjustable height, distance and rotation speed sands the radius or corners of the edge.
- Oscillatory Orbital Sanding Unit: The system consisting of 2 orbital sanding motors is used for raw and primer sanding of straight edges. It performs economical and high-quality sanding thanks to its oscillating operation. The pressure density and sanding start-end offsets can be adjusted automatically.
- Control System: The positions of all sanding units and upper compression wheels are adjusted manually. Conveyor, orbital sander and brush sander rotation speeds are adjusted from the touch screen.
Key Features & Benefits for Kama KR-KZM 3 Edge Sander:
Compact & Durable Design:
- Rugged steel frame construction ensures long-term reliability and vibration-free sanding.
- Compact footprint ideal for space-conscious workshops without sacrificing performance.
- 98" (2500mm) sanding belt accommodates a wide range of workpieces and edge types.
Oscillating Sanding Belt System:
- Automatic oscillation of the sanding belt helps reduce wear and extend belt life.
- Improves sanding consistency and minimizes the risk of burning delicate materials.
- Driven by a separate motor for dependable oscillating action.
Tilting Front Table for Angle Sanding:
- Front cast iron table tilts from 90° to 45°, enabling precise bevel sanding.
- Perfect for creating chamfered edges or angled profiles on cabinet components and panels.
- Solid fence included for supporting straight edges during sanding operations.
Adjustable Sanding Unit & Quick Belt Change:
- Horizontal adjustment of the sanding unit allows for full belt utilization.
- Quick-release system simplifies belt changes to reduce downtime.
- Manual vertical adjustment with digital readout ensures repeatable accuracy.
Effective Dust Collection:
- Dual dust ports (Ø100mm and Ø120mm) positioned for optimal dust removal.
- Maintains a clean working environment and extends machine life.
Simple Controls & Enhanced Safety:
- User-friendly control panel on the front of the machine for easy operation.
- Emergency stop button and overload protection integrated for safe use.
- Foot brake mechanism on the sanding motor for fast stopping in emergency situations.
- Dimensions: 99.6" X 36.5" X 70.9"
- Dust Collection Requirements: 35.314.7 FT3/H
- Power Consumption: 5 Kw/H
- Min/Max Product Width: 4.7" - 78.7"
- Max Product Height: 2.8"
- Min/Max Product Length: Infinite - 5.9"
- Working Speed: 3.3-32.8 ft/min
