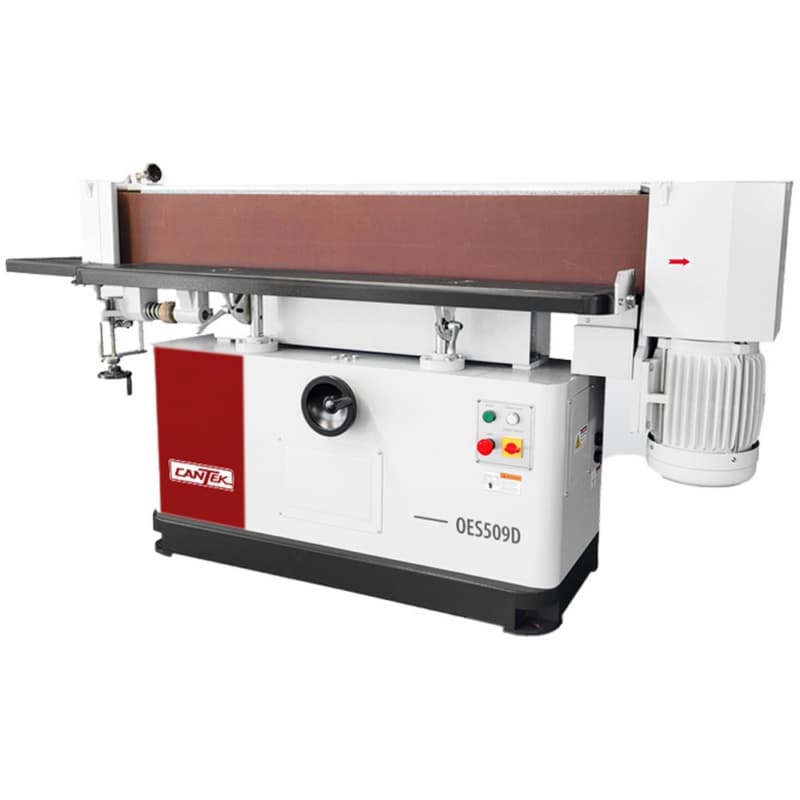

The Cantek OES509D Heavy Duty Oscillating Edge Sander is built for high-demand production environments. Designed to support dual operators, it comes equipped with a powerful 7.5 HP motor and a 9" x 165" oscillating belt that ensures consistent and efficient sanding. With front, rear, and side tables that adjust and tilt up to 45 degrees, this machine offers flexibility for bevel, flat, and curved surface sanding. Ideal for drawer boxes, cabinet doors, and furniture parts, this industrial sander delivers top-tier performance with minimal vibration.
Key Features & Benefits
Dual Operator Design Increases Productivity
• Front and rear sanding tables support two operators, boosting efficiency in busy workshops
• Tables are independently adjustable and tiltable for a variety of angles and material sizes
• Powerful 7.5 HP motor ensures smooth operation even during continuous, heavy-duty use
Oscillating Belt Ensures a Smooth, Consistent Finish
• 9" x 165" sanding belt oscillates vertically, reducing heat and minimizing wear
• Produces uniform sanding results, ideal for detailed finishes on drawer boxes and cabinet edges
• Belt motion extends belt life, saving time and cost on replacements
Versatile Table Adjustments Expand Application Range
• Front, back, and side tables adjust in height via handwheel for precise sanding control
• All tables tilt up to 45-deg, enabling bevel and angled sanding with ease
• Side/end table supports curved component sanding on the idle pulley for more design flexibility
Durable Construction for Long-Term Industrial Use
• Heavy-duty welded steel base ensures vibration-free, stable sanding
• Graphite cloth on platens reduces friction for smoother movement and longer material life
• Gear reducer-driven belt oscillation offers more reliable mechanical performance over time
- Machine Weight: 1100 lbs (500 kg)
- Shipping Weight: 1375 lbs (625 kg)
- Weight: 1,375.000 lbs
- Belt Size: 9" x 165"
- Belt Speed: 970 MPM
- Electrical Requirements: 230/3/60 = 22 Amps, 575/3/60 = 9 Amps
- Front Table Size: 10.43" x 60.9"
- Machine Dimensions: 90.55" x 30.7" x 48" (2300 x 780 x 1220 mm)
- Motor: 7.5 HP
- Oscillating Stroke: 0.472"
- Packing Dimensions: 94.5" x 34.6" x 56" (2400 x 880 x 1420 mm)
- Side Table Size: 13.8" x 17.7"
- Table Tilt: 45-deg
