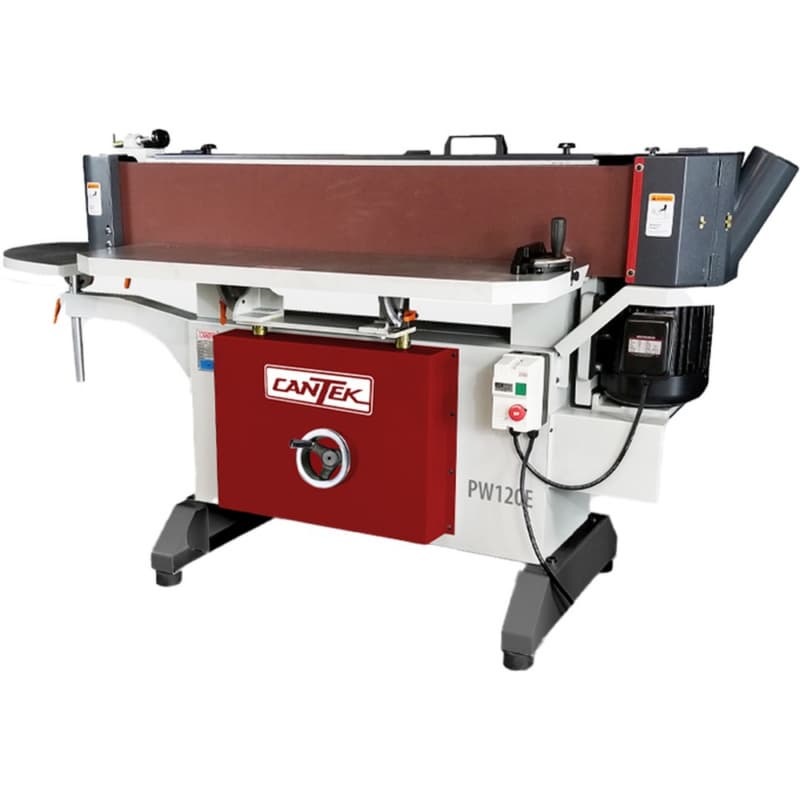

Built for precision and productivity, the Cantek PW120E Oscillating Edge Sander offers exceptional performance across a variety of woodworking tasks. From flat edges to inside curves, its oscillating belt and versatile table adjustments deliver a consistent, smooth finish. The 3 HP motor powers through demanding jobs, making it a go-to machine for cabinet shops, furniture makers, and millwork applications.
Key Features & Benefits
Cooler, Better Finish with Oscillating Belt
• The sanding belt oscillates vertically to reduce heat buildup, extending belt life.
• Ensures a smoother and more consistent sanding surface.
• Covers more of the belt surface, preventing grooves or overuse spots.
Powerful 3HP Industrial Motor
• Delivers reliable performance for high-demand sanding applications.
• Ideal for hardwoods, composite materials, and larger components.
• Runs the oscillation mechanism through a direct gear drive for stability.
Fully Adjustable for Versatile Sanding
• Cast aluminum front and rear tables tilt from 45-deg to -5-deg for bevel and straight-edge sanding.
• Spring-loaded front table with 8" travel makes height adjustments effortless.
• Ensures maximum usage of the sanding belt, saving replacement costs.
Clean Curved Edges with Contour Sanding
• A dedicated end table with a 4" pulley allows easy sanding of inside curves.
• Perfect for drawer boxes, curved door panels, and custom furniture shapes.
• Removable guard ensures both safety and convenience during detailed work.
User-Friendly: Quick & Clean Operation
• Belt tracking and changes are quick and tool-friendly, minimizing downtime.
• Two 4" dust collection ports ensure a clean and safe work environment.
• Magnetic safety switch meets CSA/UL standards for reliable operation.
- Machine Weight: 650 lbs (295 kg)
- Shipping Weight: 726 lbs (330 kg)
- Weight: 781.000 lbs
- Table Height From Floor: 32.7" (830 mm)
- Belt Size: 9" x 128.5"
- Electrical: 230/3/60 = 9.6 Amps; 575/3/60 = 3.9 Amps
- Front Table Size: 47.6" x 11.8" (1210 x 300 mm)
- Machine Dimensions: 82.7" x 24.4" x 40.2" (2100 x 620 x 1020 mm)
- Motor: 3 HP
- Platen Size: 9.5" x 48" (241 x 1219 mm)
- Shipping Dimensions: 86.6" x 28.4" x 45.3" (2200 x 720 x 1150 mm)
- Table Tilt: -5 - 45 deg
