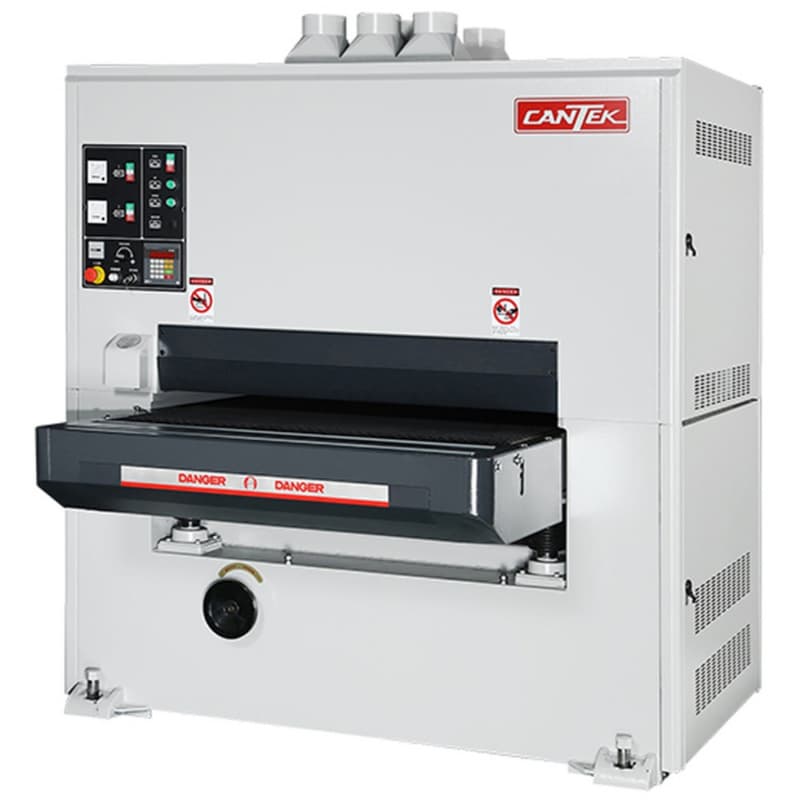

The Cantek SR52DA 52" Two Head Widebelt Sander is engineered for high-demand, multi-shift operations. Combining solid construction with advanced features, this sander provides superior performance, increased throughput, and long-lasting reliability. Equipped with dual sanding heads, the SR52DA reduces sanding passes and optimizes productivity. The first head utilizes a robust rubber contact drum for calibration, while the second head features a versatile combination unit with an adjustable sanding platen for finer finishes. The long-lasting 75" belts ensure extended operation between belt changes, and digital thickness controls provide precise adjustments for flawless results.
Key Features & Benefits
Dual Sanding Heads for Efficiency
- Dual heads reduce the need for multiple passes, enhancing productivity
- First head is Durable rubber contact drum for calibration
- Second head is a combination unit with adjustable platen for fine finishing
Precision Digital Thickness Control
- Digital thickness control with 0.001" (0.026mm) resolution
- Quick, automated table adjustments for consistent sanding accuracy
- Inch and metric settings for ease of use
Reliable, Heavy-Duty Construction
- Heavy-duty welded steel frame and cast iron head assemblies for vibration-free operation
- Dual rubber-covered pressure rollers ensure smooth, consistent material handling
- Automatic pneumatic belt tracking maintains belt alignment during sanding
- Net Weight: 7716 lbs (3500 kg)
- Shipping Weight: 8487 lbs (3850 kg)
- Belt Size: 53" x 75"
- Compressed Air Requirements: 85 PSI (6 Kg/cm2)
- Compressed Air Volume: 12 CFM (0.35M3/Min)
- Dust Collection Requirements: 5356 CFM (9100 M3/HR)
- Dust Oulets: 8 @ 5" (8 @ 127 mm)
- Feed Belt Speed: 13 - 59 FPM (4 to 18 m/min)
- Feed Motor: 3 HP
- Machine Dimensions: 84" X 82" X 79" (2150 x 2100 x 2025 mm)
- Min/Max Working Thickenss: 4.7" (120 mm)
- Min. Part Length: 16.9" (430 mm)
- No. Of Heads: 2
- Pass Line Height: 37" (950 mm)
- Shipping Dimensions: 89" X 90" X 82" (2275 x 2300 x 2090 mm)
- Table Rise/Fall Motor: 1/2 HP
- Working Width: 52" (1320 mm)
