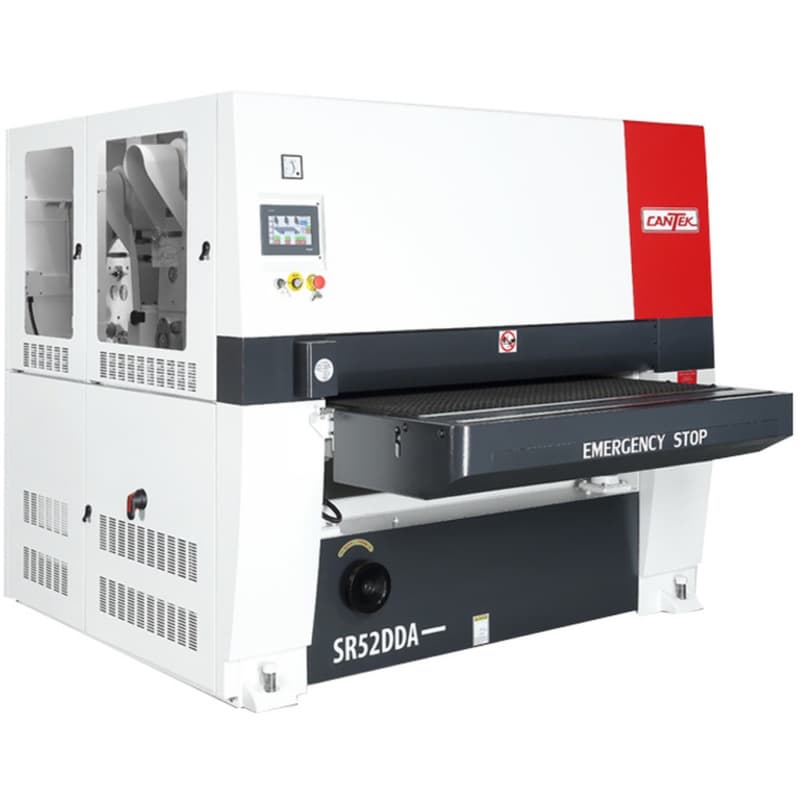

The Cantek SR52DDA 52" Three-Head Widebelt Sander is built for high-efficiency sanding in multi-shift operations. Its robust frame and three sanding heads provide optimal versatility and superior finish quality, reducing the number of passes needed to complete sanding jobs. The first head features a rubber contact drum for calibration, the second head offer a versatile rubber contact drum, and the third head is designed for fine finishing with an adjustable sanding platen. The 75" belts enable extended runs with fewer belt changes, while the digital thickness control system ensures consistent, accurate sanding.
Key Features & Benefits
Heavy-Duty Construction for Stability
• Welded steel frame with cast iron sanding heads ensures vibration-free operation
• Designed for high-volume environments, providing stability for precision sanding
• Dual rubber pressure rollers for consistent material hold-down
Three Sanding Heads for Maximum Productivity
• Head 1 has a 10" rubber contact drum for calibration sanding
• Head 2 has a versatile rubber contact drum for intermediate sanding
• Head 3 comes with an adjustable platen for fine finishing or further calibration
Digital Thickness Control for Precision
• Digital control with 0.001" (0.026mm) resolution for accurate thickness adjustments
• Automatic table adjustment eliminates manual setup, ensuring consistent results
• Inch and metric settings offer flexible controls for various workpieces
- Net Weight: 7716 lbs (3500 kgs)
- Shipping Weight: 8487 lbs (3850 kgs)
- Belt Size: 53" x 75"
- Compressed Air Requirements: 85 PSI
- Compressed Air Volume: 12 CFM (0.35M3/Min)
- Dust Collection Requirements: 5356 CFM (9100 M3/HR)
- Dust Oulets: 12 @ 5†(12 @ 127 mm)
- Feed Belt Speed: 13 - 59 FPM
- Feed Motor: 5 HP
- Machine Dimensions: 84" X 82" X 79" (2150 x 2100 x 2025 mm)
- Min/Max Working Thickenss: 4.7" (120 mm)
- Min. Part Length: 16.9" (430 mm)
- No. Of Heads: 3
- Pass Line Height: 37" (950 mm)
- Shipping Dimensions: 89" X 90" X 82" (2275 x 2300 x 2090 mm)
- Table Rise/Fall Motor: 1/2 HP
- Working Width: 52" (1320 mm)
