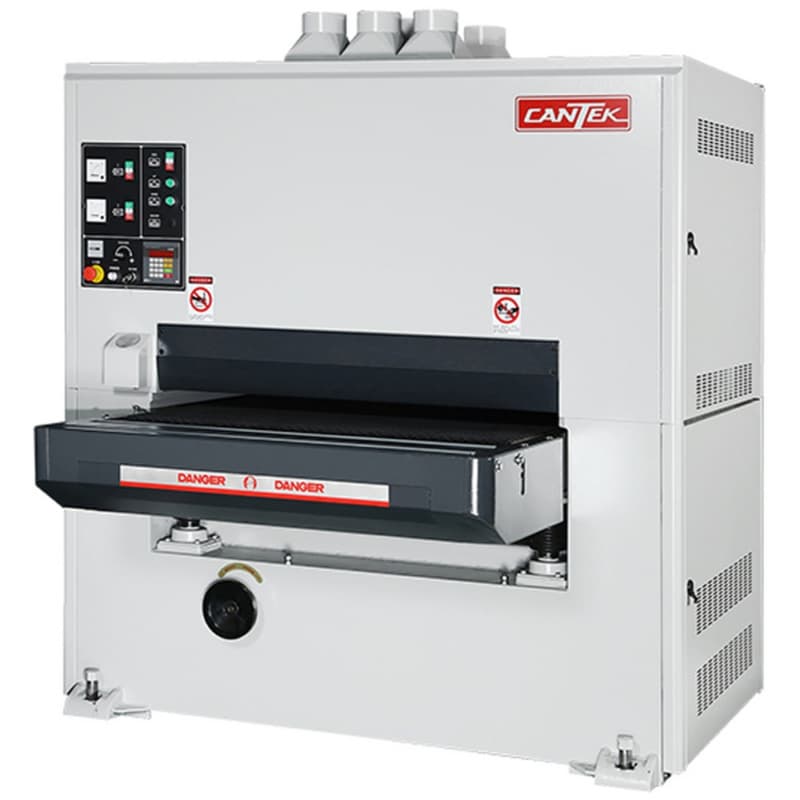

The Cantek SR43DA wide belt sander delivers high-quality results in the most demanding environments. Its 43" dual-head system features rubber contact drums and a finishing platen that work together to reduce passes and enhance surface quality. Engineered with a solid steel frame, digital precision controls, and smart safety systems, the SR43DA is the professional's choice for reliability and high performance in continuous production settings.
Key Features & Benefits
Dual-Head Design for Efficiency and Finish Quality
- First rubber drum ensures stable, accurate stock calibration
- Second combination head with platen allows for fine finishing with various grits
- Reduces the number of passes needed saving time and labor
Built to Handle Heavy Workloads
- Welded steel frame and cast-iron sanding heads absorb vibration
- Chain-driven table lift with four jackscrews ensures precise, level support
- Extended infeed bed and dual pressure rollers enhance material handling
Precision Control for Consistent Results
- Digital thickness control accurate to 0.001" for repeatable sanding depth
- Micro-height drum adjustments and dial indicators offer precision tuning
- Caliper setting allows fast, consistent machine setup
Quick Changeovers and Safe Operation
- Pneumatic belt tensioning and quick-release system make belt changes easy
- Electronic belt tracking and automatic disc brakes improve workflow and safety
- Safety interlock switches on access doors protect operators during use
- Net Weight: 6613 lbs (3000 kgs)
- Shipping Weight: 7275 lbs (3300 kgs)
- Belt Size: 43" x 75"
- Compressed Air Requirements: 85 PSI
- Compressed Air Volume: 12 CFM (0.35M3/Min)
- Dust Collection Requirements: 5356 CFM (9100 M3/HR)
- Dust Oulets: 8 @ 5" (8 @ 127 mm)
- Electrical Requirements: 230/3/60 = 102 Amps
- Feed Belt Speed: 13 - 59 FPM
- Feed Motor: 3 HP
- Machine Dimensions: 83" X 71" X 79" (2120 x 1820 x 2025 mm)
- Min/Max Working Thickenss: 4.7" (120 mm)
- Min. Part Length: 16.9" (430 mm)
- No. Of Heads: 2
- Pass Line Height: 37" (950 mm)
- Shipping Dimensions: 87" X 79" X 82" (2230 x 2030 x 2090 mm)
- Table Rise/Fall Motor: 1/2 HP
- Working Width: 43"
