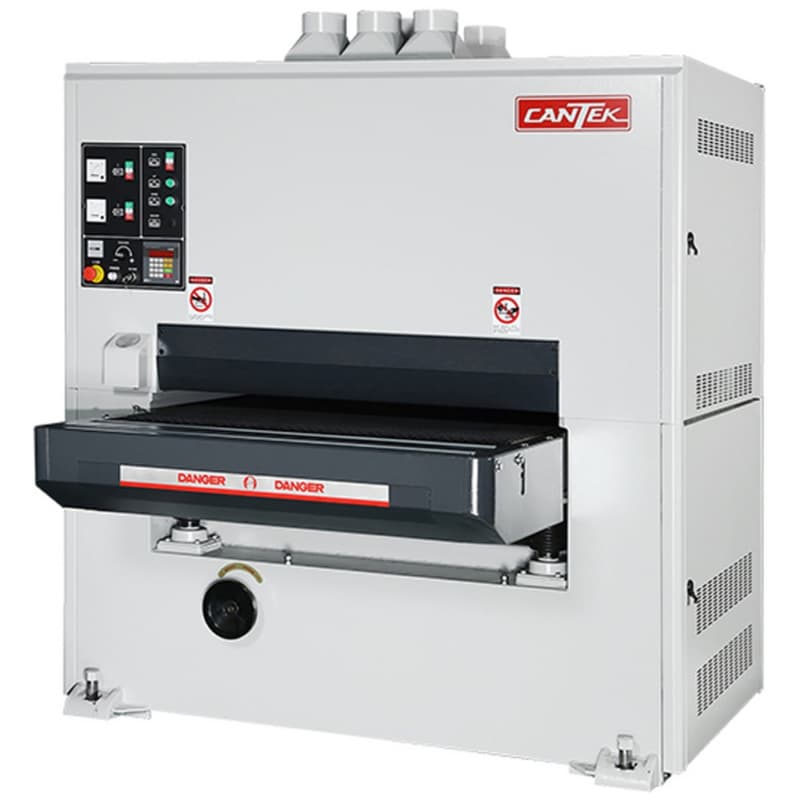

Built for demanding production environments, the Cantek SR43DA 43" Widebelt Sander combines rugged durability with smart sanding performance. Its dual-head configurationfeaturing a rubber contact drum and a combination head with platenprovides both aggressive calibration and fine finishing in a single pass. The machine's robust frame, digital thickness controls, and 75" long belts deliver consistent, high-quality results with minimal downtime.
Key Features & Benefits
Durable, High-Volume Construction
• Welded steel frame and cast iron sanding assemblies minimize vibration for flawless finishes
• Enhanced motor horsepower for multi-shift reliability
• High-quality steel rollers ensure uniform pressure and long-lasting sanding accuracy
Productivity-Boosting Dual Sanding Heads
• First head rubber contact drum for excellent surface calibration
• Second head combination drum with adjustable platen for precision finishing
• Reduces sanding passes, increasing throughput and operational efficiency
Precision Control & Fast Setup
• Digital thickness control with 0.001" resolution for accurate, repeatable adjustments
• Caliper thickness setting simplifies job setup and ensures consistency
• Micro height-adjustment with dial indicators for fine sanding control
Operational Efficiency & Safety
• Pneumatic belt tensioning with quick-release support for fast belt changes
• Automatic disc brakes for safe and quick head transitions
• Safety interlock switches on all access doors for operator protection
Optional Configurations Available
• Steel or rubber contact drums on either sanding head
• Combination head with platen for versatile sanding
• Brush roller for outfeed material cleaning
• Vacuum bed for secure small-part hold-down
- Net Weight: 6613 lbs (3000 kgs)
- Shipping Weight: 7275 lbs (3300 kgs)
- Belt Size: 43" x 75"
- Compressed Air Requirements: 85 PSI
- Compressed Air Volume: 12 CFM (0.35M3/Min)
- Dust Collection Requirements: 5356 CFM (9100 M3/HR)
- Dust Oulets: 8 @ 5" (8 @ 127 mm)
- Electrical Requirements: 230/3/60 = 102 Amps
- Feed Belt Speed: 13 - 59 FPM
- Feed Motor: 3 HP
- Machine Dimensions: 83" X 71" X 79" (2120 x 1820 x 2025 mm)
- Min/Max Working Thickenss: 4.7" (120 mm)
- Min. Part Length: 16.9" (430 mm)
- No. Of Heads: 2
- Pass Line Height: 37" (950 mm)
- Shipping Dimensions: 87" X 79" X 82" (2230 x 2030 x 2090 mm)
- Table Rise/Fall Motor: 1/2 HP
- Working Width: 43"
