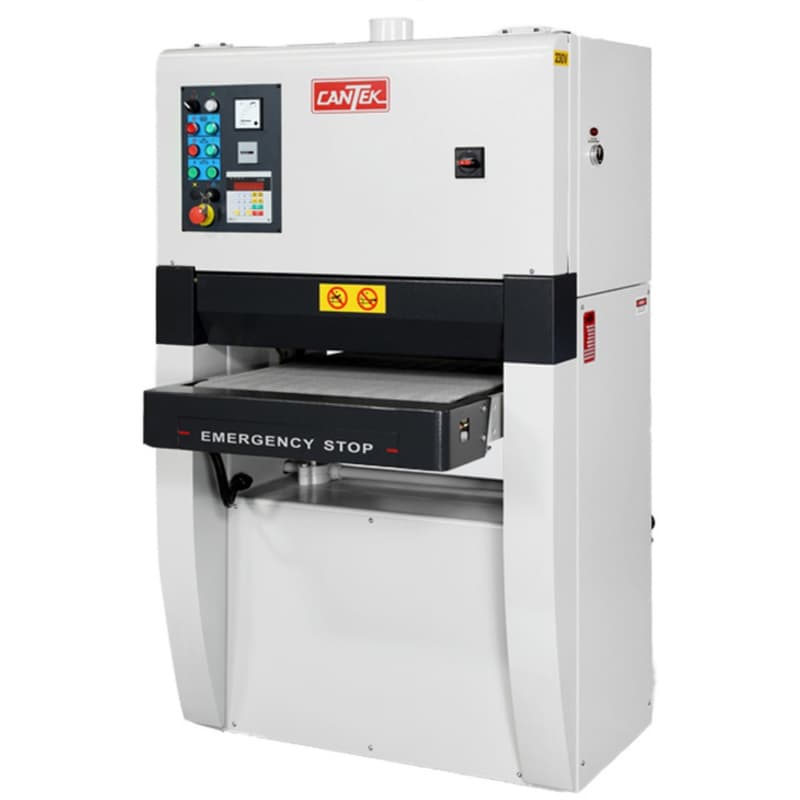

The Cantek C251-8 (3PH) Wide belt Sander with 10 HP motor delivers high-performance sanding in a compact footprint. Its 8" opening, robust construction, and combination sanding unit make it perfect for both calibration and fine finishing. Designed for speed and accuracy, it features a motorized table with digital controls, making setup quick and repeatable. Ideal for small to mid-sized shops seeking industrial-grade performance.

Key Features & Benefits

Precision Digital Thickness Control = Faster, Flawless Setup

• The motorized table allows for quick, automatic adjustment to preset thickness
• Inch and metric input settings offer global flexibility for all operators
• Saves time and improves consistency for repetitive sanding jobs

Compact Footprint

• Ideal for shops with limited floor space without compromising on performance
• The 10 HP motor and robust build deliver powerful sanding capability
• Compact yet engineered for long-term, industrial-grade usage

Combination Sanding Unit

• 3-3/8" rubber drum efficiently removes material during calibration passes
• 2" wide sanding platen provides the finesse for smooth finishing work
• Handles everything from solid wood panels to veneered surfaces

Quick Belt Changes

• Disc brake stops the motor quickly to reduce wait time during belt swaps
• Pneumatic belt tensioning with quick release simplifies changes and maintenance
• Keeps your team productive and reduces machine idle time

Smart Safety & Monitoring

• Ammeter helps monitor load, preventing over-sanding and motor strain
• Hour meter tracks run time, enabling timely preventive maintenance
• Interlocks and over-height switches ensure safe operation and protect both machine and operator

Superior Part Hold-Down

• Dual infeed and outfeed rollers ensure stable material feed without shifting
• Delivers uniform sanding quality, even on long or narrow pieces
• Reduces the chance of operator error or rework

• Net Weight: 1452 lbs (660 kg)
• Shipping Weight: 1584 lbs (720 kg)
• Belt Size: 25" x 60"
• Compressed Air Requirements: 2 CFM @ 90 PSI
• Dust Oulets: 1 @ 4" (1 @ 101 mm)
• Feed Belt Speed: 13 - 52 FPM
• Feed Motor: 1 HP
• Infeed Table: 11-1/2" (292 mm)
• Machine Dimensions: 53" x 50" x 63" (1346 x 1270 x 1600 mm)
• Max. Thickness Opening: 4" (100 mm)
• Max. Width Stock: 24" (609 mm)
• Min/Max Working Thickenss: 4" (100 mm)
• Min. Part Length: 13" (330 mm)
• Motor: 10 HP
• No. Of Heads: 1
• Opening: 8"
• Passline Height: 33" - 38" (838 - 965 mm)
• Phase: 3
• Table Rise/Fall Motor: 1/2 HP
