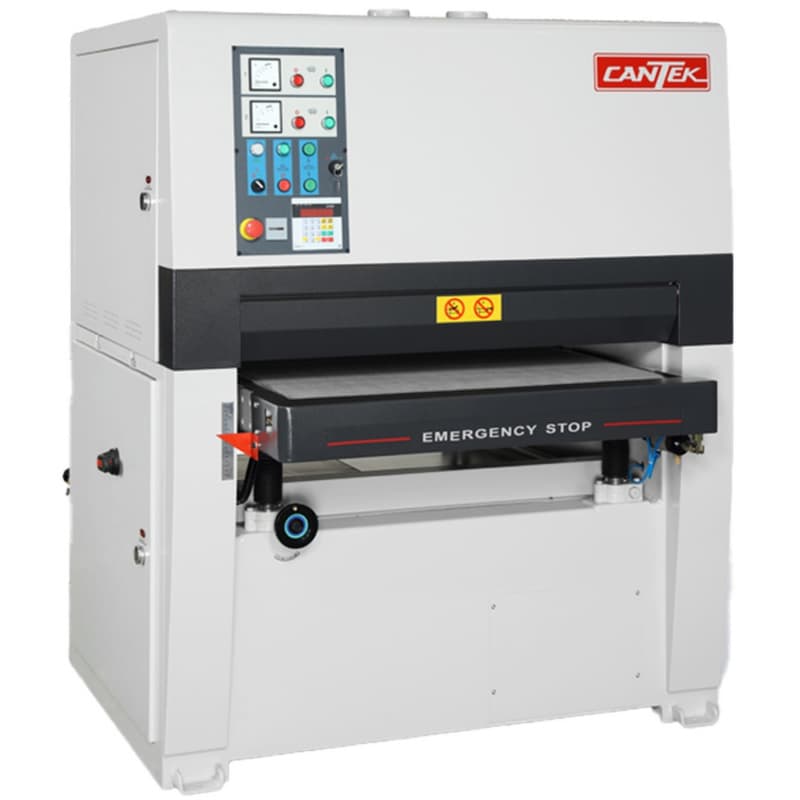

The Cantek C372 Wide belt Sander offers dual-head efficiency and industrial-grade performance in a compact format, perfect for growing shops. Its heavy-duty frame, cast iron sanding heads, and user-friendly controls provide unmatched finish quality while maximizing productivity with fewer passes.
Key Features & Benefits
Two Sanding Heads
- First Head has a 7" contact drum for aggressive stock removal
- Second Head with 5" drum with 2" platen for precision finish sanding
- Streamlines production by reducing the number of sanding passes
Precision Controls for Exceptional Accuracy
- Digital thickness control with Inch and Metric input
- Motorized table lift for fast, consistent height adjustments
- Accuracy of 0.001" (0.01mm) ensures superior finish detail
Built for Stability and Long-Term Use
- Solid cast iron sanding heads minimize vibration for a cleaner finish
- Four heavy-duty table jack screws maintain flatness under load
- Built to withstand daily use in demanding environments
Designed for Operator Efficiency
- Quick-change belt system with pneumatic tensioning
- Electronic tracking ensures proper belt alignment and longevity
- Disc brake minimizes downtime during belt swaps
Safety & Maintenance Made Easy
- Load ammeter monitors material removal rates in real-time
- Over-height limit switch protects machine and workpieces
- Hour meter tracks machine usage for timely service
- Net Weight: 3300 lbs
- Shipping Weight: 3960 lbs (1497 kg)
- Weight: 3,960.000 lbs
- Belt Size: 37" x 60"
- Compressed Air Usage: 2 CFM @ 90 PSI
- Feed Belt Speed: 13 to 52 FPM
- Feed Motor: 2 HP
- Infeed Table: 11-1/2" (279- 12.7 mm)
- Machine Dimensions: 74" x 64" x 70" (1879 X 1625 X 1778 mm)
- Main Motor (Second Head): 15 HP
- Max. Thickness Opening: 5" (127 mm)
- Max. Width Stock: 36" (914 mm)
- Min. Part Length: 13" (330 mm)
- No. Of Heads: 2
- Passline Height: 33"- 38" (838 - 965 mm)
- Shipping Dimensions: 78" x 67" x 76" (1981 X 1701 X 1930 mm)
- Table Rise/Fall Motor: 1/2 HP
