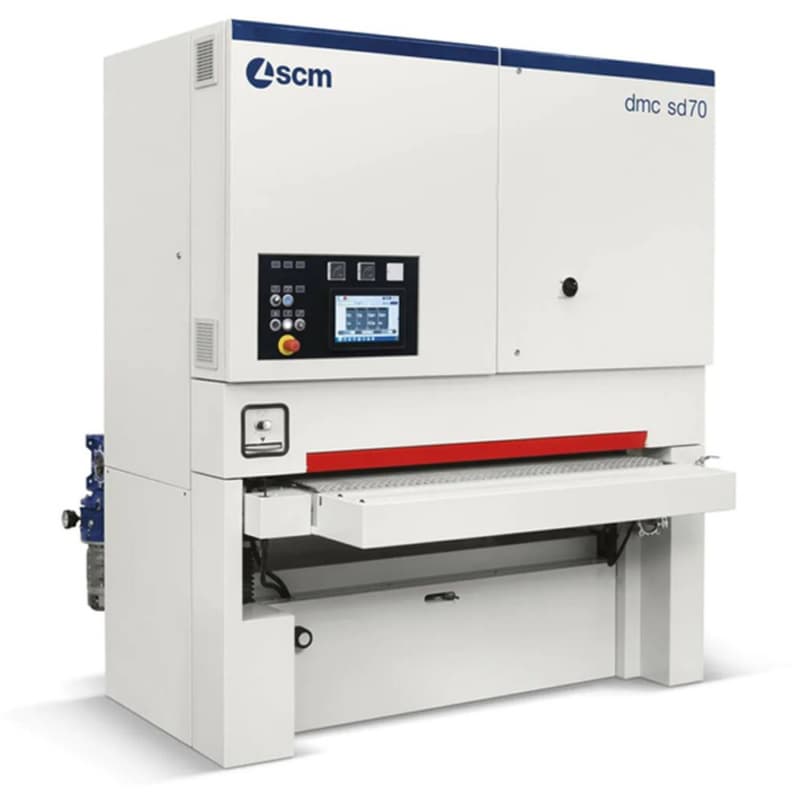

The SCM DMC sd 70 RCS 135 VN Wide Belt Sander is engineered for woodworking and veneering companies seeking high-quality sanding in a compact, space-saving design. Ideal for solid wood and veneer, it combines precision, performance, and productivity in one powerful unit. Built with a robust steel frame and advanced user-centric features, it ensures consistent finishes while saving time on every pass.
Key Features & Benefits
Deliver Flawless Finishes with MESAR Sectional Pad
• Applies pressure gently and evenly across all materials
• Enhances surface quality with precise calibration control
• Minimizes the need for post-sanding adjustments
Streamline Workflow with the eye-S Electronic Programmer
• Intuitive touchscreen interface simplifies setup and operation
• Reduces manual input errors and improves repeatability
• Stores multiple processing sequences for fast changeovers
Boost Material Control with Diamond-Shaped Traction Belts
• Secures workpieces in place to avoid slippage during sanding
• Maintains consistent contact and even pressure
• Extends belt life with optimal grip and alignment
Reduce Guesswork with LED Panel Introduction Guide
• Clearly indicates where and when to insert each panel
• Helps operators improve finish quality through proper timing
• Reduces waste and operational costs
Maximize Efficiency with RCS One-Pass Versatility
• Allows for sanding and calibration in a single operation
• Adapts easily to various wood types and veneer thicknesses
• Perfect for small shops needing industrial-level outcomes
- Abrasive Belt Speed: 18 Amps
- Belt Size: 43" x 84"
- Compressed Air Requirements: 88 PSI
- Drum Size: 140 mm/160 mm
- Drum Type: Steel/45 Sh Rubber
- Dust Oulets: 2 @ 195 mm
- Exhaust Requirements: 3544 CFM
- Feed Belt Speed: 6 to 12 FPM
- Min/Max Working Thickenss: 4 - 170 mm
- No. Of Heads: 2
- Platen Size: 60 mm
- Platens Included: 2
- Unit Type: Roller/Combination Head
- Working Width: 53"
