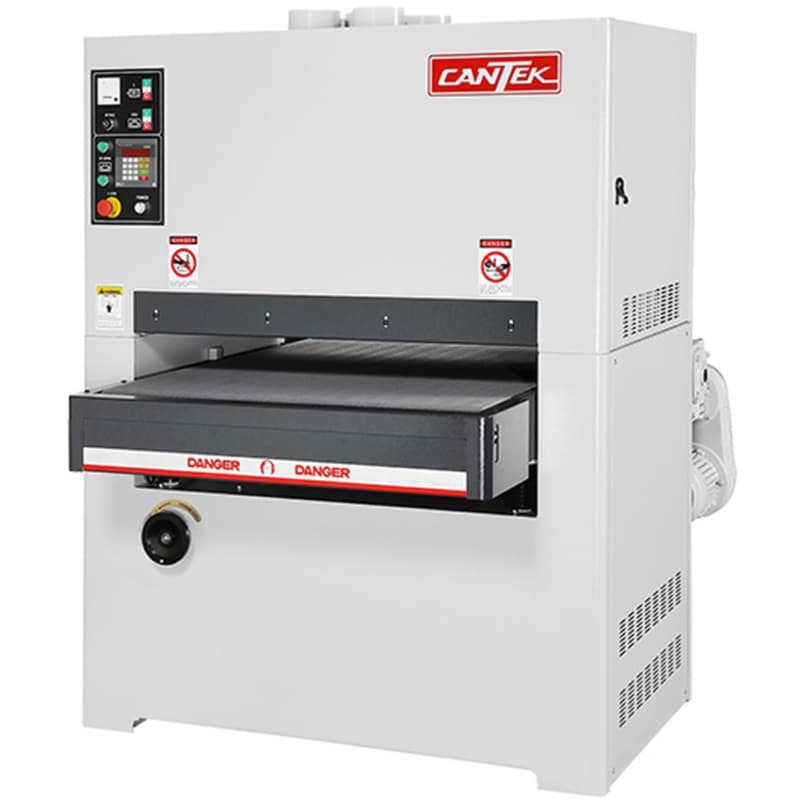

Designed for serious sanding performance in compact shop environments, the Cantek S372 37" Wide belt Sander features dual sanding heads and rugged construction for professional, consistent results. Ideal for small to mid-sized workshops, this two-head sander improves throughput by minimizing the number of required passes. Its motorized table adjustment and digital input system provide fast and precise control, while the space-saving design delivers high-end results without compromising on shop space.
Key Features & Benefits
Dual Sanding Heads for Maximum Efficiency
• First head has 7" rubber contact drum for aggressive calibration
• Second head has 5" rubber drum + 2" wide platen for fine finish sanding
• Cuts down on sanding passes, boosting productivity
Digital Thickness Control for Precision
• Fine adjustments to 0.001" / 0.01mm via motorized table
• Inch/metric unit support for operational flexibility
• Automatic positioning ensures consistent sanding
Compact Size with Industrial Strength
• Fits easily into space-limited shops
• Heavy-duty steel frame ensures stability and vibration control
• Quick-change abrasive belts for rapid material transitions
Smart Tracking & Safety Features
• Electronic belt tracking improves longevity and alignment
• Door interlocks for safe maintenance access
• Pneumatic belt tensioning with quick-release for tool-free swaps
Simplified Monitoring & Operation
• Built-in ammeter helps manage motor load and sanding pressure
• Disc brake ensures fast, safe belt changes
• Precision jackscrews guarantee smooth table adjustment
- Net Weight: 3086 lbs (1400 kg)
- Shipping Weight: 3527 lbs (1600 kg)
- Weight: 3,527.000 lbs
- Belt Size: 37" x 60"
- Compressed Air Requirements: 60 PSI
- Compressed Air Volume: 12 CFM (0.35M3/Min)
- Dust Collection Requirements: 2472 CFM (4200 M3/HR)
- Feed Belt Speed: 15 - 49 FPM (4 to 15 m/min)
- Feed Motor: 1 HP
- Machine Dimensions: 60" x 53" x 67" (1540 x 1365 x 1720 mm)
- Min/Max Working Thickenss: 5.9" (150 mm)
- Min. Part Length: 12.5" (320 mm)
- Motor: 20 HP
- No. Of Heads: 1
- Pass Line Height: 37" (950 mm)
- Phase: 3
- Shipping Dimensions: 62" x 57" x 78" (1600 x 1460 x 2000 mm)
- Table Rise/Fall Motor: 0.25 HP
- Working Width: 37" (950 mm)
