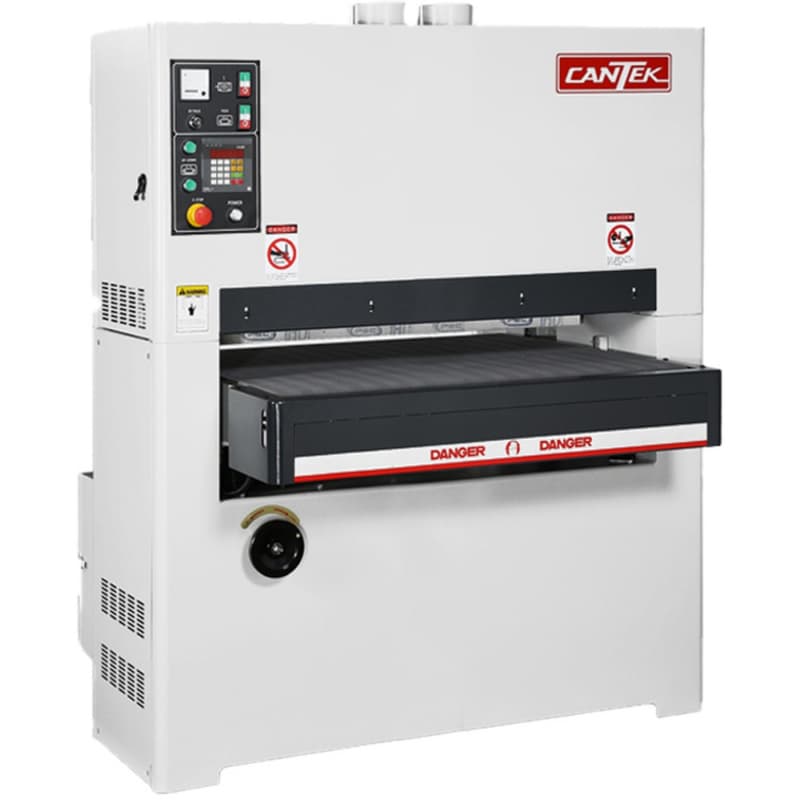

The Cantek S431 43" Wide belt Sander delivers reliable, high-quality sanding performance in a compact and cost-effective design. Featuring a combination sanding unit and precise digital thickness control, it provides consistent results for both calibration and finish sanding. Designed for space-conscious workshops, this sander offers industrial-grade capability at an accessible price.
Key Features & Benefits
Combination Sanding Unit for Versatility
• 5" rubber contact drum for calibration sanding
• 2" wide sanding platen for fine finishing
• Handles a variety of applications with one machine
Digital Thickness Control for Accuracy
• Inch/metric options with motorized table movement
• Quick, consistent thickness adjustments minimize downtime
• Enhances sanding repeatability across multiple jobs
Compact Footprint with Robust Construction
• Space-saving design ideal for smaller shops
• Heavy-duty build ensures stability and longevity
• Perfect balance of power and performance
Enhanced Performance & Maintenance
• Variable feed speed for material flexibility
• Electronic belt tracking and ammeter for load monitoring
• Disc brake and pneumatic tensioning for quick belt changes
User Safety & Easy Adjustments
• Interlocked access doors prevent unsafe operation
• Precision jackscrews allow smooth, accurate table height control
• Table raising jackscrews ensure smooth operation and easy height adjustments
- Net Weight: 2,288 lbs (1,310 kg)
- Shipping Weight: 3,328 lbs (1,510 kg)
- Belt Size: 43" x 60"
- Compressed Air Requirements: 60 PSI
- Compressed Air Volume: 7 CFM (0.2M3/Min)
- Dust Collection Requirements: 2118 CFM (3600 M3/HR)
- Feed Belt Speed: 15 - 60 FPM (4 to 18 m/min)
- Feed Motor: 2 HP
- Machine Dimensions: 60" x 50" x 64" (1525 x 1270 x 1630 mm)
- Min/Max Working Thickenss: 5.9" (150 mm)
- Min. Part Length: 12.5" (320 mm)
- Motor: 20 HP
- No. Of Heads: 1
- Phase: 3
- Shipping Dimensions: 52" x 64" x 76" (1330 x 1640 x 1940 mm)
- Table Rise/Fall Motor: 0.25 HP
- Working Width: 43" (1092 mm)
