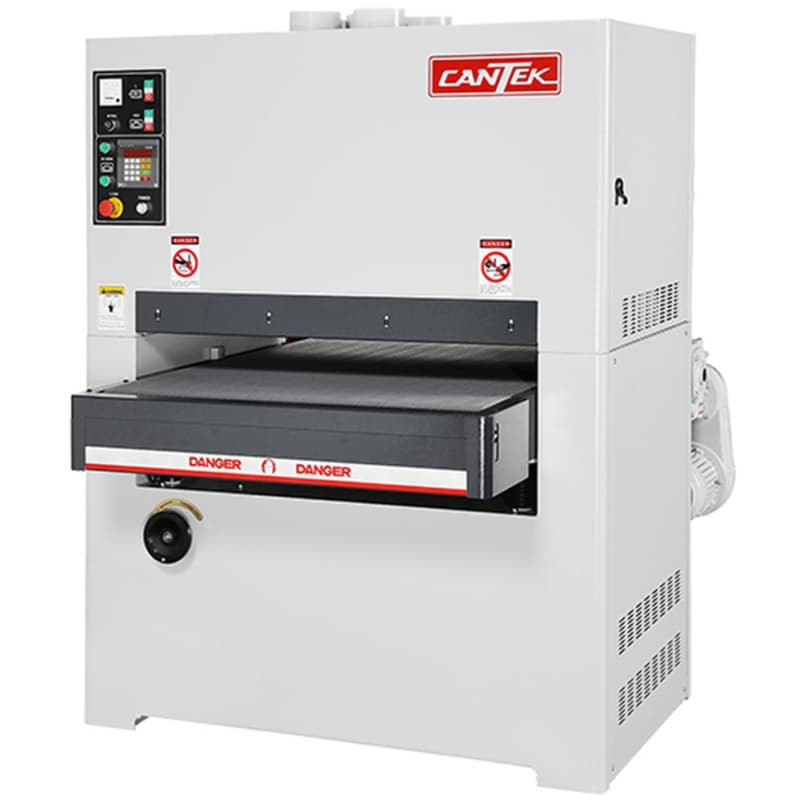

The Cantek S432 43″ Wide belt Sander offers powerful dual-head sanding in a compact, shop-friendly design. Engineered for small to mid-sized production facilities, this machine streamlines sanding operations by combining heavy stock removal and fine finishing in a single pass. Its digital control system and robust build quality ensure long-term performance and consistent results.
Key Features & Benefits
Dual Sanding Heads for Faster Processing
• First head 7″ contact drum for calibration
• Second head 5″ contact drum + 2″ wide platen for final finish
• Increases sanding speed and reduces labor time
High-Precision Digital Thickness Control
• Input resolutions as fine as 0.001″ / 0.01mm
• Motorized table adjusts automatically for consistent sanding depth
• Inch/metric toggle for international flexibility
Superior Finishing with Adjustable Platen
• Adjustable platen allows customization for finer grits
• Suitable for a wide range of materials and applications
• Ensures consistent, high-quality results across different materials
- Net Weight: 3086 lbs (1400 kg)
- Shipping Weight: 3500 lbs (1587 kg)
- Belt Size: 43" x 60"
- Compressed Air Requirements: 70 PSI
- Compressed Air Volume: 12 CFM (0.35M3/Min)
- Dust Collection Requirements: 3825 CFM (6500 M3/HR)
- Electrical Requirements: 230/3/60 = 70 Amps
- Feed Belt Speed: 15 - 49 FPM (4 to 15 m/min)
- Feed Motor: 2 HP
- Machine Dimensions: 60" x 61" x 64" (1540 x 1555 x 1630 mm)
- Min/Max Working Thickenss: 5.9" (150 mm)
- Min. Part Length: 12.5" (320 mm)
- Motor: 25 HP
- No. Of Heads: 2
- Pass Line Height: 37" (920 mm)
- Phase: 3
- Shipping Dimensions: 62" x 64" x 76" (1600 x 1640 x 1940 mm)
- Table Rise/Fall Motor: 0.25 HP
- Working Width: 42" (1066 mm)
