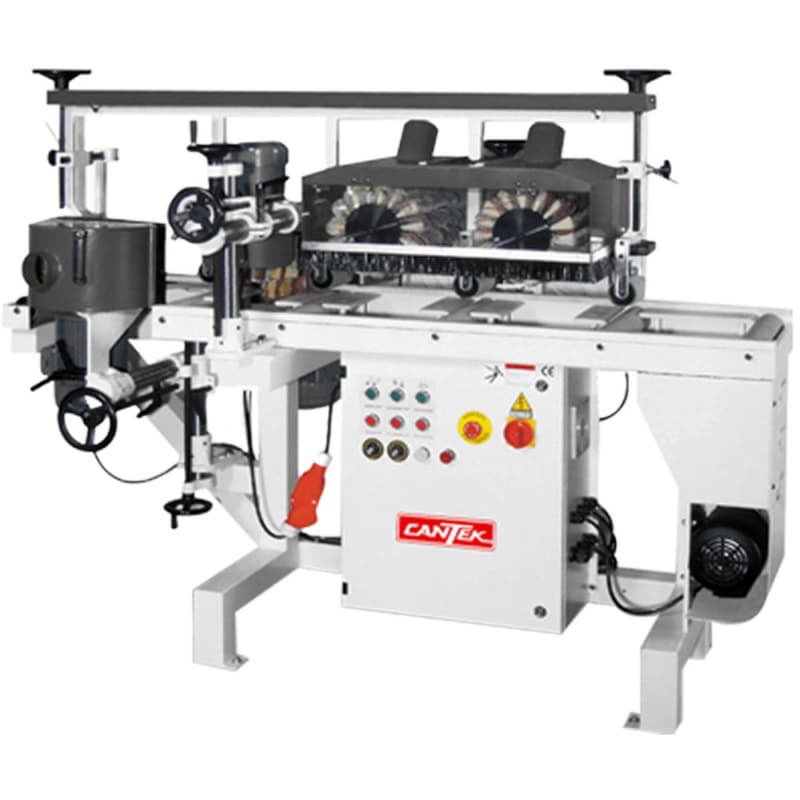

Looking for a versatile and economical solution for linear profile sanding? The Cantek LBS300-5S 12" sander is designed for woodworking shops handling mouldings, flooring, furniture parts, and more. Its efficient 3-sided sanding works on various materials and coatings, from raw wood to sealed pieces. Expect consistent, professional results that significantly reduce manual labor. This machine is an ideal investment for enhancing productivity and achieving high-quality linear profile finishes.
Key Features & Benefits
Three-Sided Sanding Power for Superior Coverage
- Designed to sand linear profiled wood on three sides simultaneously, eliminating manual hand sanding
- Brushing heads with abrasive cloth strips and cleaning brushes reach into detailed profiles and grooves
- Ideal for finishing mouldings, skirting, flooring, and furniture components in MDF, softwood, and hardwood
Full Adjustability for Precision and Flexibility
- Variable speed adjustment (200-1200 RPM) via inverters ensures optimized results on various surfaces
- Top brushing heads can be adjusted in height and angled to suit bevelled and contoured profiles
- Side brush heads are fully adjustable (up/down, in/out, and angled) for tailored finishing control
Robust Build & Easy Operation for Daily Production
- Heavy-duty steel frame minimizes vibration for smooth and consistent sanding
- Centralized control panel with clearly labeled, color-coded buttons for intuitive setup and operation
- Top press rolls and dovetail pocket brushing system allow for quick abrasive replacements and height control
- Net Weight: 748 lbs (340 kg)
- Conveyor Motor: 1/4 HP (0.18KW)
- Dust Ports: 4 x 90 mm and 1 x 60 mm
- Variable Feed Speed: 20~56 FPM (6~17 M/min)
- Gross Weight: 1034 lbs (470 kg)
- Left Brush Head Motor: 1 x 1/2 HP (1 x 0.37KW), 1 x 1/2 HP (1 x 0.37KW)
- Dimensions: 73" x 49" x 61" (1840 x 1230 x 1550 mm)
- Max. Working Height: 4" (100 mm)
- Max. Working Width: 12" (310 mm)
- Min. Work-Pieces Length: 33" (840 mm)
- Min. Work-Pieces Thickness: 3/8" (9.5 mm)
- Moving Brush Head Motor: 1/3 HP (0.25KW)
- Packing Dimensions: 81" x 40" x 64" (2050 x 1010 x 1630 mm)
- Power Requirements: 230/3/60 = 14 Amps; 460/3/60 = 7 Amps
- Right Brush Head Motor: 1 x 1/2 HP (1 x 0.37KW)
- Speed Of Sanding Wheel: 200 ~ 1200 RPM
- Top Brush Head Motor: 2 x 3/4 HP (2 x .55KW)
