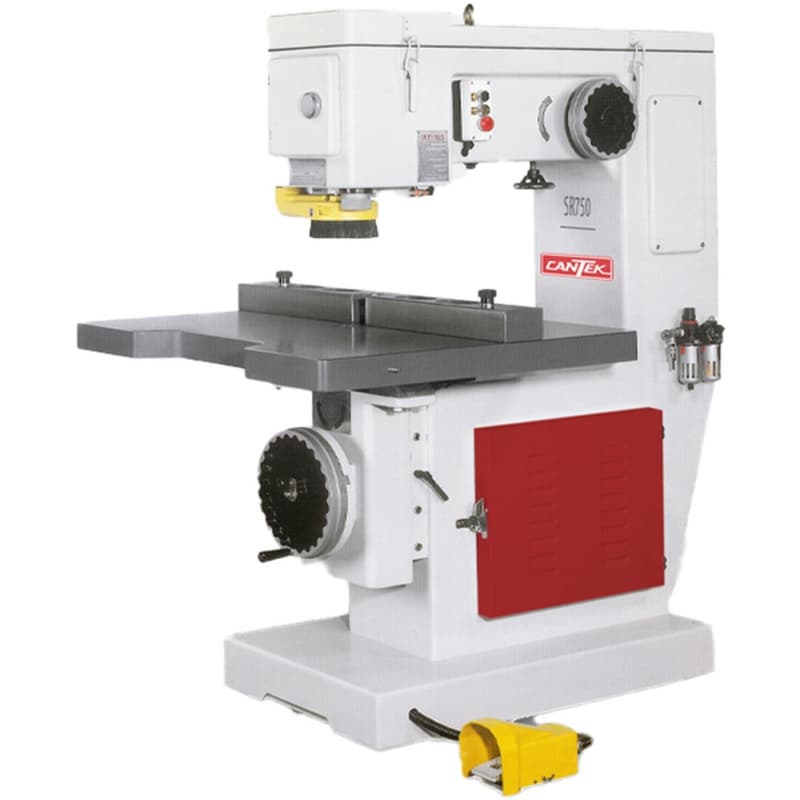

The Cantek SR750 Pin Router delivers industrial-grade routing performance with unmatched precision and power. Featuring a 7.5 HP dual-speed motor, pneumatic foot-pedal operation, and a tilting cast-iron table, this machine is purpose-built for high-volume template or freehand routing. Designed for shops demanding speed, control, and durability, the SR750 is your go-to solution for intricate profiling, shaping, and panel work.
Key Features & Benefits
Versatile Dual-Speed Motor for All Routing Tasks
• 7.5 HP spindle motor with selectable 10,000 or 20,000 RPM settings
• Optimized for both heavy cutting and fine-detail routing on wood and panel materials
• Magnetic switch provides reliable startup and built-in operator safety
Hands-Free Pneumatic Downfeed for Safe, Efficient Operation
• Foot pedal-activated pneumatic feed maintains hands-on control of workpieces
• Spindle travel up to 3-3/4" accommodates deep and varied cut requirements
• Hydraulic end-feed damping ensures smooth, stable material engagement
Precision Spindle Assembly for Smooth, Quiet Performance
• GNP4-grade bearings support the ground and balanced spindle at high RPMs
• Designed to minimize vibration and thermal expansion for continuous accuracy
• Delivers consistent results with reduced wear on internal components
Adjustable Depth and Feed for Repeatable Results
• Three-position turret enables fast, repeatable depth changes
• Tool-free knurled knob simplifies depth adjustment on the fly
• Adjustable pneumatic feed speed helps optimize cut quality and safety
Heavy-Duty Tilting Table Increases Routing Flexibility
• Precision-ground cast-iron table tilts up to 45-deg for angled routing
• Rigid, ribbed construction eliminates vibration and ensures table stability
• Steel fence and slotted surface support template routing and straight-line operations
Engineered for Long-Term Industrial Use
• Durable drive belt system with adjustable handwheel tensioning
• Grease fittings and auto-lubrication enhance machine life and reliability
• Designed for continuous-duty use in demanding woodworking environments
- Weight: 1,716.000 lbs
- Net Weight: 720 kg (1590 lbs)
- Gross Weight: 900 kg (1990 lbs)
- Packing Dimensions: 66" x 44" x 72"
- Chuck to Table Top Maximum: 11" (280 mm)
- Throat Clearance: 29-1/2" (750 mm)
- Spindle Travel: 3-3/4" (95 mm)
- Depth Stops: 3
- Table Travel: 7-1/2" (190 mm)
- Table Surface Area: 36" x 40" (915 x 1016 mm)
- Table Tilt: 45-deg
- Micrometric Table Raise: 3/64" (1 mm)
- Collet Sizes: 1/4", 3/8", 1/2", 5/8"
- Spindle Drive Motor: 7.5 HP
- Belt Size: 35 x 2330 mm
