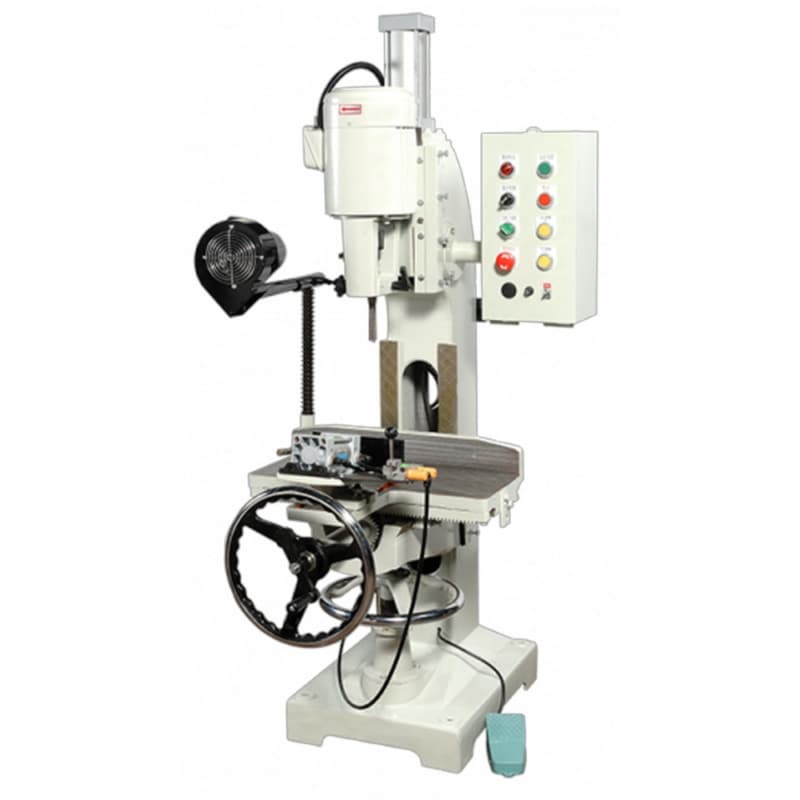

The Cantek PCM120 Chisel Mortiser combines speed, precision, and durability to deliver flawless mortise cutting for woodworking professionals. Built for high-repetition operations, it features a 1HP motor, motorized head stroke, foot pedal control, and pneumatic clampingmaking it an essential addition to any high-production shop or serious woodworking setup.
Key Features & Benefits
Fast, Accurate Mortising with Power Stroke
- Motorized head stroke ensures quick, consistent, and clean mortises.
- Ideal for repetitive jobs requiring uniform depth and spacing.
- Minimizes operator fatigue while boosting productivity.
Dust-Free Cutting for Better Visibility
- Integrated fan blower removes chips and dust during cutting.
- Keeps mortise area clean for more precise alignment.
- Enhances operator safety and reduces cleanup time.
Versatile & Easy to Operate
- Manual table adjustment accommodates various workpiece sizes.
- Foot pedal activation allows hands-free cycle start.
- Pneumatic clamping ensures secure, stable positioning throughout operation.
Heavy-Duty Build for Daily Use
- Rugged cast iron body resists vibration and prolongs machine life.
- Centralized control panel enables intuitive operation.
- Built to handle demanding shop environments with ease.
- Chisel Range: 1/4" - 3/4"
- Motor: 1 HP
- Air Requirements: 8 kg
- Spindle Speed: 3, 400 RPM
- Table Size: 16-3/4" x 21-1/4"
- Table Tilt: 30°
- Table Cross Travel: 5"
- Table Longitudinal Travel: 18"
- Table Vertical Travel: 12"
- Max. Stock Width: 12"
- Max. Mortising Depth: 4"
- Clamping Cylinder: 2.5" (63 mm)
- Head Traveling Cylinder: 3.15" (80 mm)
- Machine Weight: 572 lbs
- Shipping Weight: 726 lbs
- Shipping Dimension: 35" x 38" x 70" (880x960x1780 mm)
