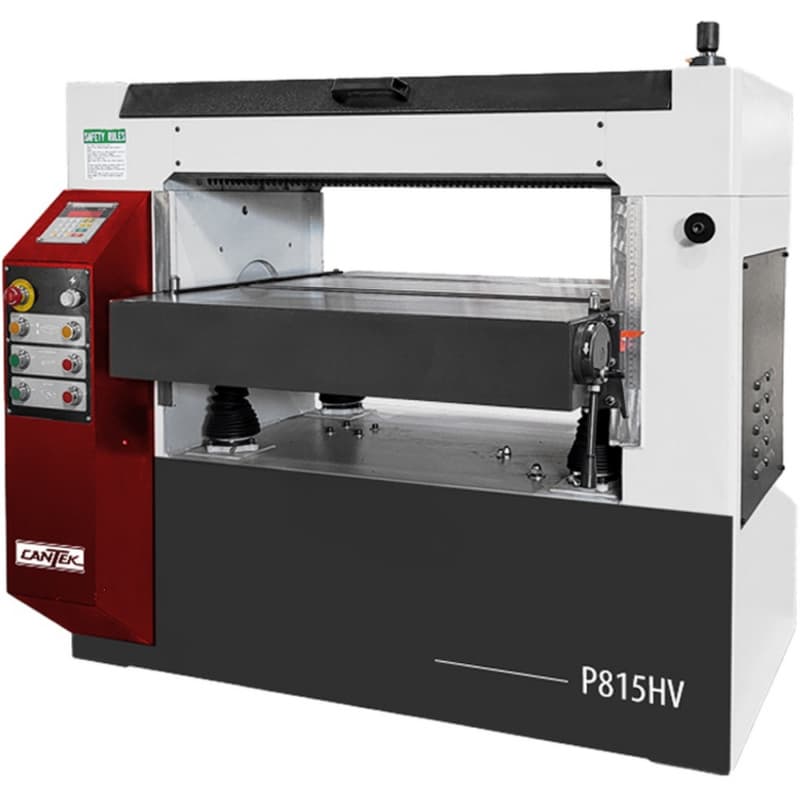

Engineered for demanding industrial environments, the Cantek P815HV delivers heavy-duty performance with advanced features to maximize efficiency and cut quality. Its helical cutterhead, cast-iron construction, and digital controls provide long-term durability and operator-friendly precisionperfect for shops that require flawless results across a wide range of materials.
Key Features & Benefits
Precision Cutting with Maximum Efficiency
- Helical cutterhead with two-sided solid carbide inserts delivers smooth, tear-out-free finishes
- No-setup knife replacement thanks to indexed inserts with locating pins and gib screws
- Beveled insert corners reduce stepping, improving surface quality across wide boards
Heavy-Duty Build for Reliable Performance
- Rigid cast iron frame minimizes vibration, enhancing finish quality and extending tool life
- Segmented serrated infeed roller and pressure shoe ensure consistent hold-down during feeding
- Optimized insert orientation allows superior cutting depth and cleaner results
Digital Controls for Fast, Accurate Setup
- PC-based digital thickness control simplifies height adjustments with high precision
- Quick-set micro-adjustable table rollers enhance feed control on rough or variable stock
- Tool-free knife changes reduce downtime and simplify routine maintenance
- Weight: 2,450.000 lbs
- New/Used: New
- Working Width: 32
- Dimensions of Standard Knives: 30 x 12 x 1.5mm
- Surfacing Table Length: 34-1/4
- Feed Speed: 20-39 FPM
- Cutting Head: Spiral
- Worktable Dimensions: 34-1/4 x 34-1/4
- Max. Cutting Depth: 46158
- Shipping Weight: 2450 lbs
- Max. Planing Thickness: 42687
- Shipping Dimensions: 66 x 44 x 53
- Min. Length: 38202
- Main Motor Power: 15 HP
- Electrical Requirement: 230/3/60 = 42.2 Amps; 460/3/60 = 21.1 Amps
- Min. Planing Thickness: 46089
- Feed motor: 2 HP
- Power rise and fall of table: 1/2 HP
- Dust Hood: (1) 6
- Type: Single Surface
