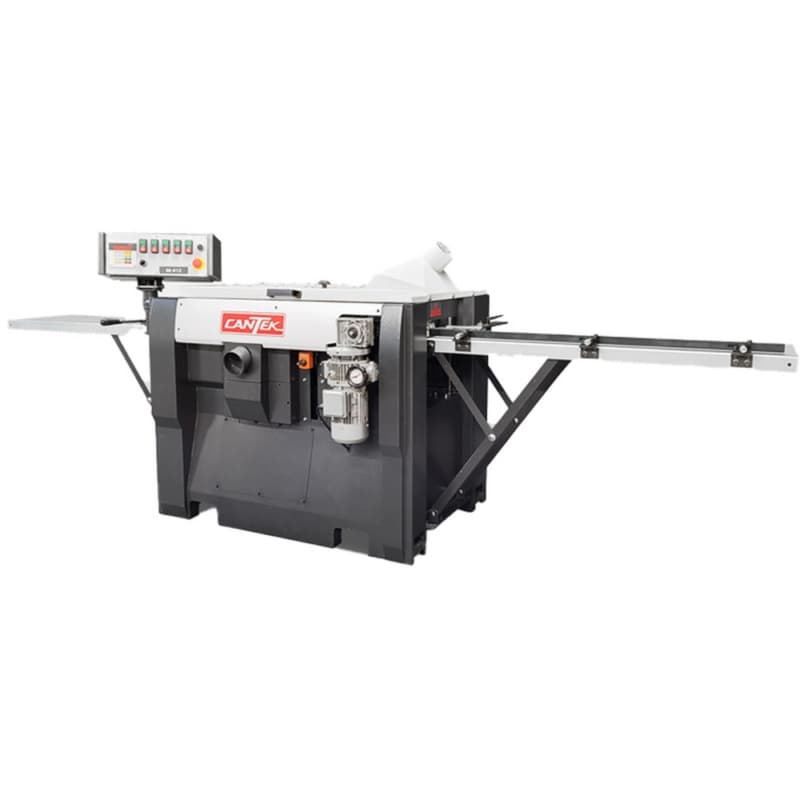

The Cantek M412 4-Sided Planer Moulder is a versatile and cost-effective solution tailored for small shops and professional woodworkers. Engineered for producing a wide variety of products such as flooring, crown moulding, paneling, door & furniture components, S4S, and more. Featuring individual motors for each spindle, the machine ensures maximum efficiency and precision. The digital thickness control and mechanical readouts make it easy to adjust settings for optimal results. With its compact design and reliable performance, this planer moulder is a perfect choice for any small custom woodworking shop.
Key Features & Benefits
The Cantek M412 4-Sided Planer Moulder
• Four cutting modes: Single, double, three, and four-sided planing and moulding options for versatility
• Individual motors for each spindle: Provides optimal performance and reliability, ensuring each task is completed with precision
• Variable feed speed of 11-52 FPM: Adjustable feed speed for better finish quality and efficiency
Easy-to-Use Controls for Faster Adjustments
• Digital motorized thickness controller: Provides convenience with both inch and metric measurements for easy adjustments
• Mechanical digital readouts: Ensure precise adjustments to side heads for accurate milling
• Three depth-of-cut control plates: Optimized for smooth operation on the bottom cutterhead
Support and Precision During Cutting
• Infeed and outfeed tables: Keep the material well-supported during operations for added precision
• Upgraded adjustable infeed fence: Offers easy depth adjustment to accommodate different workpieces
• See-through top guard: Provides visibility of the cutterheads while keeping the operator safe
Key Advantages
• Centralized control panel: Simplifies operation by turning all units on and off with a single control, and allows for easy thickness adjustments
• Top horizontal spindle: Equipped with two pattern knives to handle both planing and moulding tasks efficiently
• Left vertical spindle: Can be manually adjusted with a mechanical digital readout to ensure accurate positioning
- Weight: 1,610.000 lbs
- New/Used: New
- Working Width: 26
- Surfacing Table Length: 26
- Feed Speed: 11-52 FPM
- Worktable Dimensions: 44 X 26
- Planing Width: 13 (330mm)
- Planing Depth: 7/16 x9 (12 x230mm)
- 4-Side Planing/Moulding Width: 0 x12 (0 x305mm)
- 4-Side Planing/Moulding Depth: 7/16 x4 (12 x100mm)
- Top Horizontal Spindle Width: 17-15/16 (455mm)
- Top Horizontal Spindle. planning depth: 5/16 (8mm)
- Top Horizontal Spindle. moulding depth: 3/4 (19mm)
- Top Horizontal Spindle Speed: 7000 RPM
- Top Horizontal Spindle Cutterhead diameter: 2-7/8 (72mm)
- Top Horizontal Spindle Motor: 7-1/2HP (5.5Kw)
- Bottom Horizontal Spindle: Width: 13-5/8 (346mm)
- Bottom Horizontal Spindle: Max. planing depth: 1/4 (6mm)
- Bottom Horizontal Spindle: Max. moulding depth: 3/16€³ (5mm)
- Bottom Horizontal Spindle: Speed: 7000 RPM
- Bottom Horizontal Spindle: Cutterhead diameter: 2-7/8 (72mm)
- Bottom Horizontal Spindle: Motor: 5HP (3.7Kw)
- Right & Left Vertical Spindles: Max. cutting height: 4 (100mm)
- Right & Left Vertical Spindles: Max. cutting depth: 13/16 (21mm)
- Right & Left Vertical Spindles: Spindle diameter: 1-1/4€³ (31.75mm)
- Right & Left Vertical Spindles: Speed: 7000 RPM
- Right & Left Vertical Spindles: Max. cutterhead diameter: 3-1/2 (90mm)
