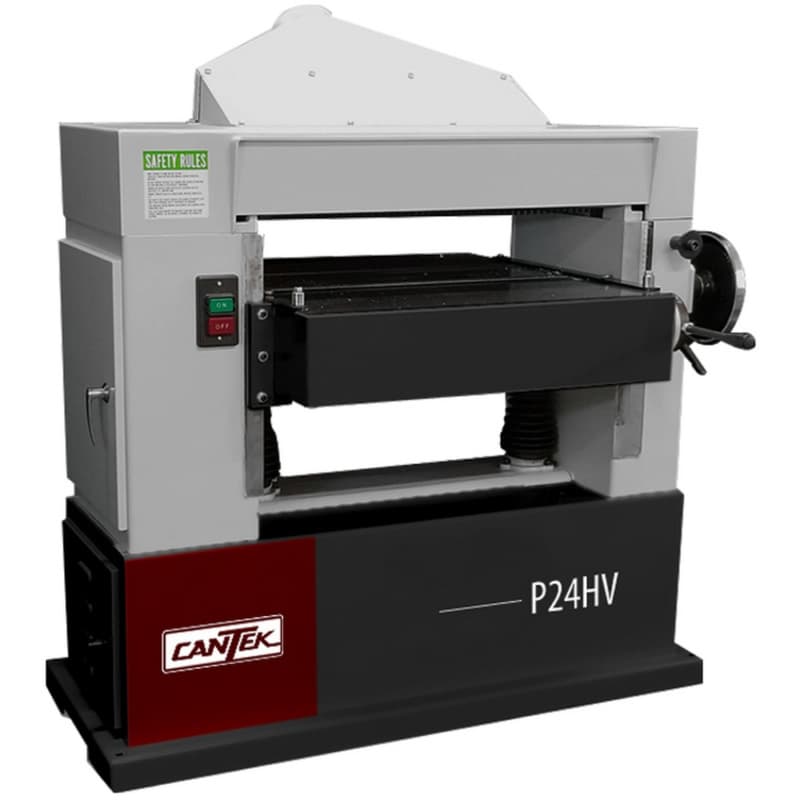

The Cantek P-24HV 24" 3 phase planer is an economically priced, compact planer designed for high-quality finishes. With a spiral insert knife cutterhead, the machine operates quietly and delivers a smooth, consistent cutting action. The cast iron table and head assembly reduce vibrations, ensuring precision and smooth results. With the long-lasting carbide inserts, users can easily rotate the knives, maximizing the tool's lifespan.
Key Features & Benefits
Spiral Insert Knife Cutterhead for Long-Lasting Performance
• Quiet operation ensures a peaceful work environment
• Carbide inserts are durable and provide a smooth, even finish
• Replaceable inserts can be rotated up to four times, reducing maintenance costs
Reduced Vibration for Enhanced Planing Quality
• Heavy-duty cast iron table and head assembly absorb vibrations for better results
• Robust welded steel frame ensures stability and durability
• Smooth operation results in superior finishes with less effort
Safe, Convenient, and Efficient Operation
• Anti-kickback fingers improve safety during operation
• Flip-open top lid with limit switch makes insert knife changes quick and safe
• Polyurethane outfeed roll prevents material damage after planing
Flexible and Efficient Feeding System
• 2-feed speeds for versatile planing depending on the material
• Double bed rolls are easily adjusted for challenging materials
• Serrated sectional infeed roll conforms to irregularly shaped materials for better feeding
- Weight: 1,150.000 lbs
- New/Used: New
- Working Width: 24
- Feed Speed: 20/30 FPM
- Cutting Head: Spiral
- Motor Power: 7.5
- Net Weight: 950 lbs
- Cutterhead Diameter: 42432
- Dust Port: (1) 6
- Max. Planing Thickness: 8
- Machine Dimensions: 48 x 36 x 50
- Shipping Dimensions: 49 x 31 x 45
- Min. Length: 8
- Electrical Requirement: 230/3/60 = 22 Amps; 575/3/60 = 9 Amps
- Table Rise & Fall: Manual
- Phase: 3
- Type: Single Surface
