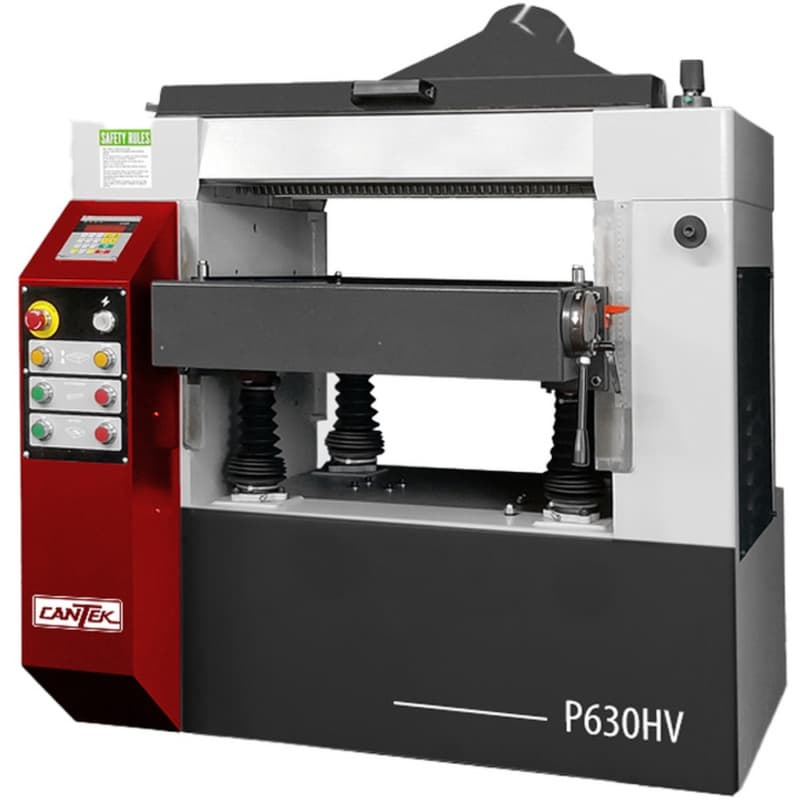

The Cantek P630HV 24" 3-Phase Planer is designed for high-demand surfacing applications, offering reliable, heavy-duty performance. Equipped with a solid steel spiral cutterhead and 86 two-sided carbide inserts, it delivers superior surface finishes with minimal noise and no need for adjustments. The digital PLC interface ensures fast, accurate height settings, while the cast-iron frame minimizes vibration, extending the machine's lifespan and ensuring consistent, high-quality cuts. With advanced feeding features and easy-to-maintain parts, the P630HV is built for handling even the most challenging materials.

Key Features & Benefits

Spiral Cutterhead Design for Cleaner Cuts & Easy Maintenance

• Solid steel helical cutterhead with 86 carbide inserts ensures smooth, high-quality surfaces
• Inserts are mounted vertically for optimal cutting and easy rotation or replacement
• No special tools required for maintenance or height adjustment

Digital Controls Improve Accuracy & Efficiency

• PLC-controlled digital thickness readout ensures fast, precise table height settings
• Metric and inch readouts for easy switching between units
• Four jack screws raise the table evenly for consistent thickness

Heavy-Duty Construction Enhances Longevity & Cut Quality

• Cast-iron frame absorbs vibration, ensuring longer bearing life and more consistent cuts
• Segmented infeed roller and pressure shoe secure material during planing
• Quick-set table roller adjustment for easier feeding of warped or tough wood

Safety & Accessibility for User Confidence

• Flip-open hood provides easy access to the cutterhead for quick knife changes
• Safety limit switch prevents machine operation with the hood open
• Anti-kickback fingers protect the operator during material feeding

• Dimensions of Standard Knives: 30 x 12 x 1.5mm
• Surfacing Table Length: 34
• Feed Speed: 20-39 FPM
• Motor Power: 10
• Net Weight: 1804 lbs
• Shipping Weight: 2024 lbs
• Machine Dimensions: 51 x 38 x 47
• Shipping Dimensions: 44 x 39 x 52
• Type: Single Surface
