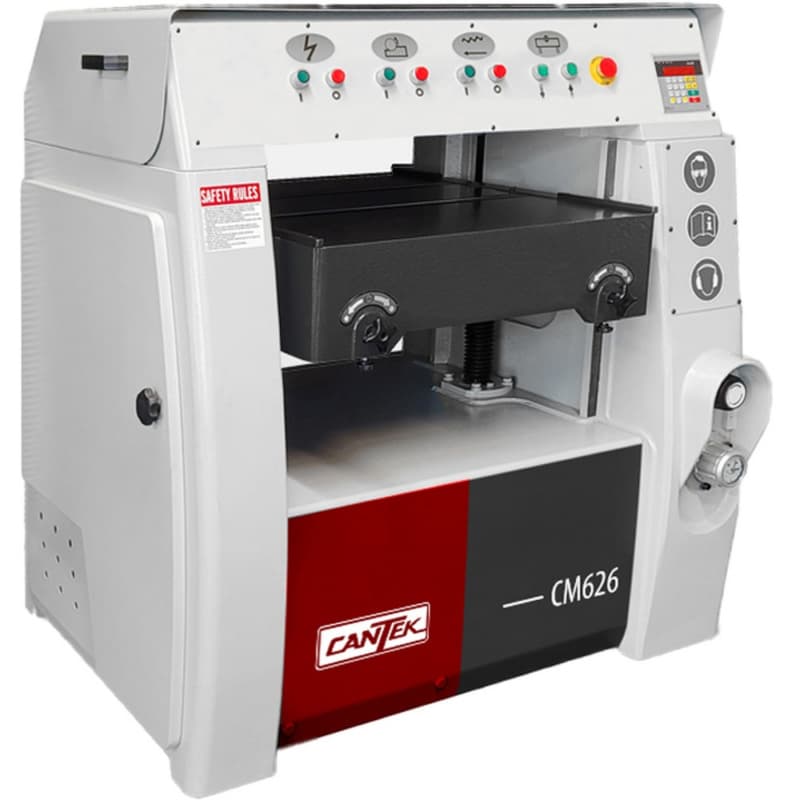

The Cantek CM626 26" Planer is built for production shops that demand smooth finishes, high removal rates, and rock-solid reliability. Its spiral-insert knife cutterheadwith two-sided carbide knivesdelivers deep, burr-free cuts, while upper and lower driven rollers feed even the most challenging stock. A 20 HP motor and infinitely variable feed let you tackle hardwoods, wide boards, and heavy cross-grain work with ease. Motorized table adjustment via digital control ensures you hit your target thickness every time.
Key Features & Benefits
Superior Cut Quality & Depth
- Spiral-insert cutterhead with carbide inserts produces ultra-smooth surfaces and minimizes tear-out on figured grain
- Two-sided knives offer four cutting edges per insert, doubling time between change-outs and reducing tooling costs
- Maximum cut depth up to 1/8" per pass accelerates stock removal without sacrificing finish
Powerful Feeding for Difficult Stock
- Driven upper and lower rollers grip warped, wet, or oily boards for consistent, jam-free feeding
- Adjustable bed rollers adapt to varying board thickness and hardness, eliminating snipe and feed slippage
- Anti-kickback fingers protect operators and prevent material kickback during heavy cuts
Precision Thickness Control
- Digital thickness control with motorized table drive lets you enter the exact dimensionno hand cranks required
- Heavy-duty elevation screws and machined slides ensure the table moves smoothly and holds position under load
- Infinitely variable feed up to 70 FPM matches feed speed to wood species and desired finish quality
- Weight: 2200 lbs / 1000 kgs
- New/Used: New
- Working Width: 26
- Dimensions of Standard Knives: 30 x 12 x 1.5mm
- Surfacing Table Length: 27
- Cutterhead Speed: 5000 RPM
- Feed Speed: 29-98 FPM
- Cutting Head: Spiral
- Worktable Dimensions: 35 x 27
- Cutterhead Diameter: 4-3/4 (120mm)
- Max. Cutting Depth: 0.31 (8mm)
- Shipping Weight: 2420 lbs (1100Kgs)
- Max. Planing Thickness: 11.8 (300mm)
- Machine Dimensions: 46 x 39 x 49 (1167 x 995 x 1246mm)
- Shipping Dimensions: 44 x 52 x 58 (1117 x 1320 x 1474mm)
- Main Motor Power: 20 HP
- Min. Planing Length: 10.35 (263mm)
- Min. Planing Thickness: 0.15 (4mm)
- Feed motor: 1 HP
- Table motor: 1/2 HP
- Top feed rollers: 3 (75mm)
- Dust hood outlet: 6 (150mm)
- Electrical: 230/3/60 = 60.4 amps 460/3/60 = 30.2 amps 575/3/60 = 24 amps
- Type: Single Surface
