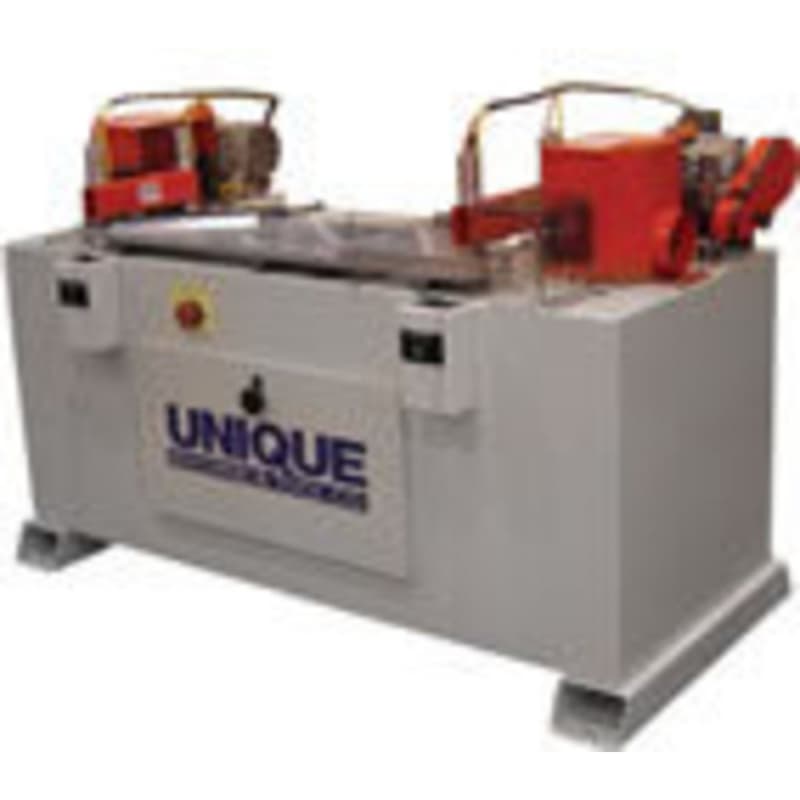

The Unique 313 GT2 Miter Machine is a precision-engineered solution for fast, reliable, and safe miter joint production. Designed with an automatic cycle and dowel drilling, it offers hands-free clamping and dual safety controls for maximum operator protection. With upgraded tooling, the GT2 performs hogging and finger jointing in a single pass-boosting cutter life and improving cut quality. From cabinet frames to door production, it’s built to handle demanding workloads with consistent results.
Key Features & Benefits
Stronger Joints for Durable Frame Construction
• Finger joints are 40% stronger than traditional mortise and tenon miter joints
• Eliminates the need for pre-miteringcut frames to final size before machining
• GT2 option includes hogging cutters for cleaner, deeper finger joints
Hands-Free, High-Speed Operation Enhances Productivity
• Automatic cycle with dowel drilling completes one frame in 15 seconds
• Hands-free foot valve and dual-hand start buttons boost safety and efficiency
• Pneumatic clamps lock securely for consistent shaping and drilling
Precision-Controlled Cuts with Digital Accuracy
• Digital position indicators for dowel drills offer accuracy to .001"
• Adjustable turret stops allow fine-tuning of dowel positions on both sides
• Spindles are pneumatically raised for preset depth changes without manual adjustment
Built for Long Parts and High Volume
• Staggered tables accommodate unlimited frame lengths and dual 1" thick parts
• Compact footprint fits into small shops without sacrificing output
• Air-over-oil cylinder smoothly drives table along THK and TXK linear bearings
Safe Operation with Built-in Protective Features
• Highly visible guards, clamp bars, and polycarbonate shields protect the operator
• Two 10 HP direct-drive motors deliver reliable, variable-speed power
• PLC-controlled cycle eliminates touchpoints and integrates seamlessly with Unique’s software
- Weight: 1,800.000 lbs
- Shaper Motors: 10HP
- Drill Motors: 1/3HP
- Electrical Requirements: 220V, 60Hz, 3PH, 74.7A 440V, 60HZ, 3PH, 37.3A
- Compressed Air: 90PSI, 1CFM
- Dust Collection: 1400CFM Per Spindle
- Max. Material Width: 5"
- Max. Material Thickness: 1in Standard, 1-1/2in Optional
