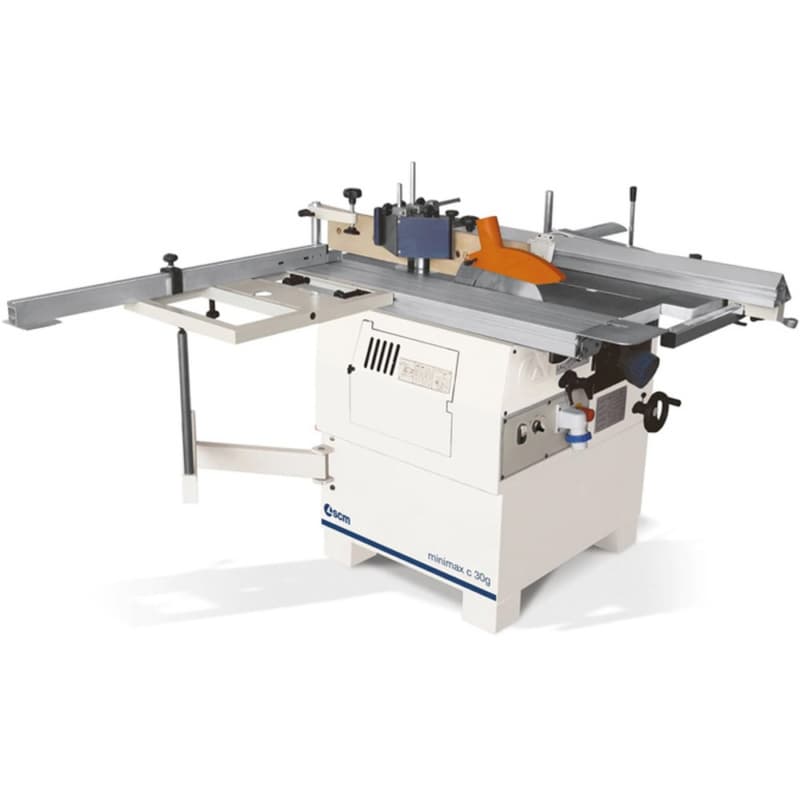

Minimax’s Universal Combined Machine brings together precision, versatility, and safety in a space-efficient, cost-effective design. Engineered for woodworking professionals and serious hobbyists, it combines multiple functions into a single machine while upholding the premium build quality that defines the Minimax brand. With ergonomic controls and industrial-grade performance, this unit is perfect for small to mid-sized workshops that demand flexibility without sacrificing quality.
Key Features & Benefits
Efficient Table Design for Better Workflow
• The surfacing table opens inward, making the machine more compact and ergonomically friendly during operation
• Anodized-extruded guides with rapid locking simplify setup, reducing downtime between tasks
• The high-performance feed system supports smooth and consistent thicknessing of wood up to 200 mm
Versatile Spindle Moulder for Complex Profiles
• Equipped with 2 speeds (5000/7500 rpm), the spindle moulder adapts to various profiling needs
• Micrometric fence adjustment offers precise control when working on intricate mouldings
• Optional tenoning hood and sliding table streamline joint-making operations with added protection
Precision Cutting with Tilting Saw Unit
• The 250 mm blade tilts and lifts easily using dedicated hand-wheels, allowing fast adjustment for bevel cuts
• Anodized aluminum sliding table (1200 mm stroke) runs next to the blade, ensuring highly accurate cuts
• Max 80 mm blade projection at 90° enables deep and clean cuts through thick stock
Built-In Safety Features for Professional Use
• CE-certified shaft and spindle guards protect users during shaping and curved profile work
• Large surfacing tables improve material support and reduce the chance of operator error
• All protective components are integrated without compromising accessibility or visibility
Minimax Brand Assurance and Durable Construction
• Minimax is a trusted SCM Group brand, known for its durable woodworking solutions made in Italy
• Solid construction and high-end aluminum components ensure long-lasting precision and minimal maintenance
• Ideal for workshops with limited space, without sacrificing industrial-quality performance
- Weight: 646.000 lbs
- Cutterhead Working Width: 12" (300 mm)
- Jointer Bed Length: 47" (1200 mm)
- Max. Sawblade Diameter: 10" (250 mm)
- Sawblade Arbor Size: 1.18" (30 mm)
- Max. Sawblade Projection: 2.9/2.3" (75/60 mm)
- Rip Capacity: 21" (540 mm)
- Max. Useful Spindle Length: 3" (75 mm)
- Spindle Moulder Speed: 4000/6500 RPM
- Max. Tool Diameter When Profiling: 6.25" (160 mm)
- Cutterhead: TERSA
- 3 Ph Motor: 2.5 HP
