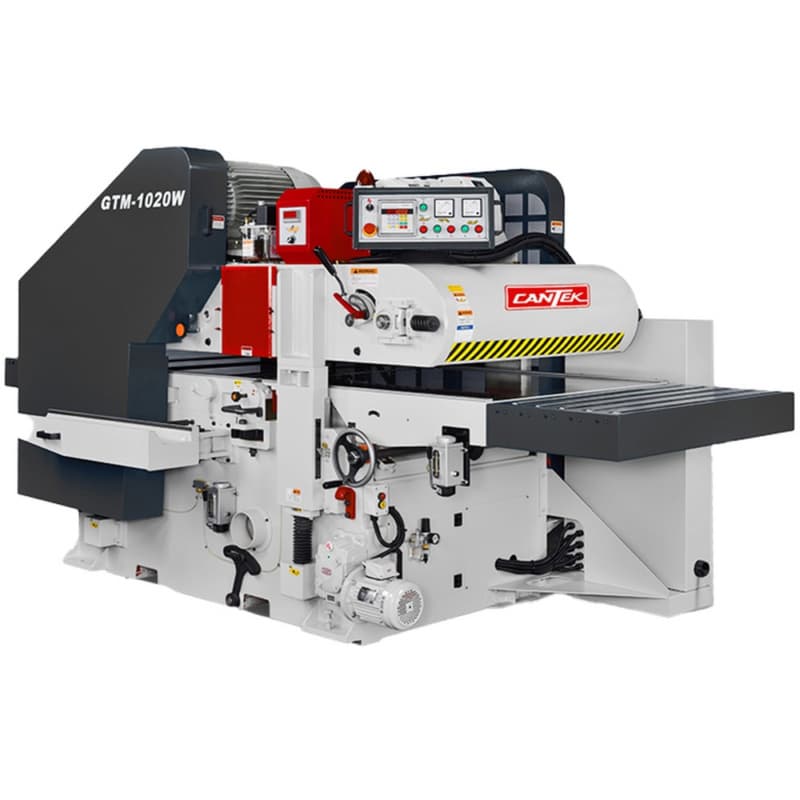

The Cantek GTM1020W 40" Double Surface Planer is a heavy-duty planer made to tackle large-scale projects with precision and power. Featuring a spiral insert knife cutterhead with carbide inserts, it ensures smooth finishes and effective stock removal. Ideal for a variety of woodworking tasks, including live edge slabs and door panels, this planer offers adjustable thickness control with digital accuracy. Whether you're processing wide boards or thick materials, the Cantek GTM1020W maximizes production with reliable performance.
Key Features & Benefits
High-Capacity Planing for Large Projects
• Capacities up to 40" wide x 11.8" thickness allow for processing large slabs, countertops, and panels
• Spring-loaded conveyor pin system ensures smooth material feeding and prevents board shifting during planing
• Increased stock removal capabilities for efficient processing of thick and dense materials
Precision and Smoothness with Spiral Cutterheads
• Spiral insert cutterheads with solid carbide knives deliver a superior, smooth finish
• Extremely quiet operation ensures minimal noise during use, enhancing the workshop environment
• Two-sided knives are easily replaceable, allowing you to extend tool life and maintain cutting efficiency
Durable Build for Industrial Use
• Heavy-duty cast-iron body and table provide vibration-free cutting for better results
• Hard chromed worktable enhances wear resistance for prolonged use in demanding environments
• Auto lubrication system ensures consistent machine maintenance, increasing the lifespan of moving parts
Digital Thickness Control for Precision
• Digital electronic thickness adjustment provides accurate control in both INCH and MM (0.001" / 0.01mm resolution)
• Top head & feed assembly automatically adjust, ensuring consistent thickness after every pass
• External handwheel adjustment makes it easy to fine-tune material thickness for various tasks
Efficient Feeding and Safety Features
• Two driven and one idle bed roll ensures superior feeding, even for difficult materials
• Sectional chip breaker and feed roller work before the top cutterhead to prepare material for a smooth pass
• Over-thickness safety shut-off bar prevents damage to the machine and materials by automatically stopping if the material exceeds the preset thickness
- New/Used: New
- Working Width: 40
- Dimensions of Standard Knives: 30 x 12 x 1.5mm
- Cutterblock Diameter: 5.16
- Surfacing Table Length: 103
- Cutterhead Speed: 4000 RPM
- Feed Speed: 23-65 FPM
- Cutting Head: Spiral
- Worktable Dimensions: 40 X 103
- Planer Working Height: 11.8
- Net Weight: 12,125 lbs (5511 kg)
- Machine Dimensions: 108-1/4 x 76-3/4 x 74.8
- Bottom Cutterhead Motor: 30 HP (Standard) xOptional 40 HP
- Dust Collection Requirements: 4 @ 6
- Min. Workpiece Length: 12.2
- Packaging Dimensions: 112.2 x 80.7 x 80.7
- Top Cutterhead Motor: 40 HP (Standard) xOptional 50 HP
- Gross Weight: 12,787 lbs (5812 kg)
- Feed motor: 7.5 HP
- Table Elevation Motor: 1 HP
- Type: Double Surface
