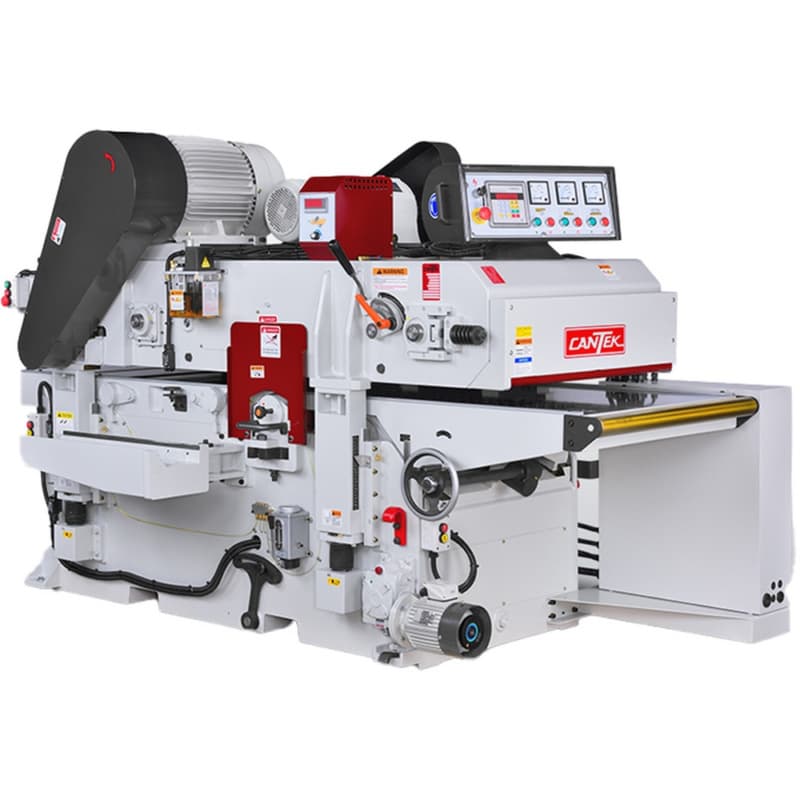

The Cantek GT760ARD-8 Double Surface Planer is designed for heavy-duty industrial applications, offering superior durability and precision. Featuring twin spiral cutterheads and a robust cast-iron frame, this machine is built to withstand continuous use while providing exceptional results. With automatic digital thickness control and variable feed speeds, it is ideal for high-production shops looking for efficient, flawless finishes and uniform boards in a single pass.
Key Features & Benefits
Dual Spiral Cutterheads for Smooth, Tear-Free Finishing
• Six rows of carbide inserts for a smooth finish on hardwoods
• Reduced noise for a quieter environment
• Faster stock removal without sacrificing quality
Spring-Loaded Conveyor Pin System for Consistent Flatness
• Ensures uniformity and accuracy in thicknessing
• Holds material steady to prevent uneven cutting
• Ideal for planing both sides of difficult materials
Precision Digital Thickness Control for Accuracy
• Allows measurements in inches or millimeters with 0.001" resolution
• Auto-adjusts for repeat operations
• Ergonomic, swiveling control panel for easy adjustments
Heavy-Duty Construction for Long-Term Reliability
• Cast-iron body absorbs vibrations for smoother operation
• Wear-resistant chromed infeed table
• Auto lubrication system reduces maintenance
User-Safe and Operator-Friendly Design
• Rubber outfeed roller ensures a flawless finish
• Safety shut-off bar for over-thickness protection
• Ammeter displays motor load to prevent overloading
- Weight: 7,500.000 lbs
- New/Used: New
- Working Width: 30
- Dimensions of Standard Knives: 30 x 12 x 1.5mm
- Cutterblock Diameter: 4
- Min. Working Thickness: 0.4
- Cutterhead Speed: 5000 RPM
- Feed Speed: 26-79 FPM
- Cutting Head: Spiral
- Planer Working Height: 8
- Dust Port: (2) 6
- Shipping Weight: 7700 lbs
- Machine Dimensions: 107 x 55 x 75.6
- Min. Workpiece Length: 12.2
- Packaging Dimensions: 110 x 55 x 77
- Electrical Requirement: 460/3/60 = 71 Amps; 575/3/60 = 57 Amps
- Bottom Head Motor: 20 HP
- Top Planing Head Motor: 25 HP
- Feed motor: 5 HP
- Table Elevation Motor: 1 HP
- Machine Weight: 7040 lbs
- Type: Double Surface
