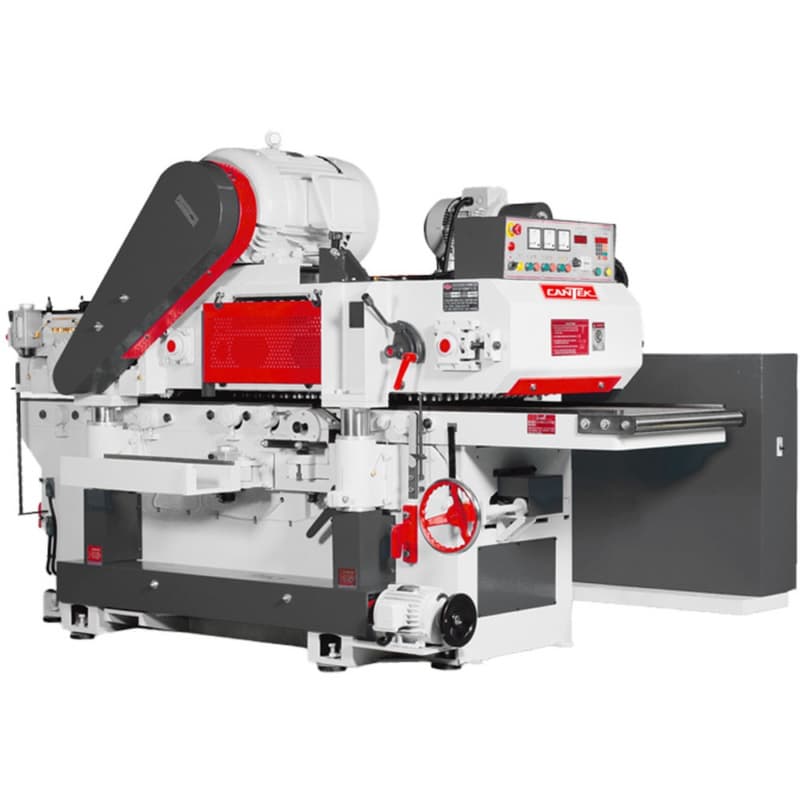

The Cantek GT820HD 32" Double Surface Planer is made for demanding production environments. Equipped with a robust cardan shaft drive system and solid cast-iron construction, this heavy-duty machine ensures superior stock removal and exceptional finish quality. Whether you're working with large volumes of material or requiring maximum precision, the Cantek GT820HD is made to deliver exceptional performance day in and day out. Ideal for high-speed planing, it offers variable feed speeds and digital control for ultimate flexibility.
Key Features & Benefits
Heavy-Duty Cardan Shaft Drive for Ultimate Durability
• The cardan shaft drive system enhances machine longevity and withstands demanding planing tasks.
• Designed for increased feed speeds, perfect for high-volume production.
• Built to endure continuous operation, ensuring consistent, high-quality output.
High-Performance Cutterheads for Superior Stock Removal
• Spiral insert knife cutterheads with 8 rows of solid carbide inserts deliver optimal cutting power
• The large diameter cutterheads provide increased stock removal capacity and reduced machine load
• The two-sided carbide knives produce a clean finish while reducing noise and vibration
Precision Engineering for Consistent Performance
• Solid cast-iron construction greatly reduces vibration, resulting in smoother operations
• The cast iron bed is precision-machined and chrome-plated for superior durability and accuracy
• Integrated with precision NSK class-7 ball bearings for exceptional stability
User-Friendly Features for Easy Adjustment
• Digital thickness control allows for precise adjustments with an accuracy of +/- 0.002" (0.05mm)
• Convenient infeed bed adjustments using an easily accessible handwheel for controlled stock removal
• The control panel is equipped with individual ammeters and hour meters for efficient maintenance tracking
Efficient Feeding and Lubrication System
• Pin-type carpet feed system ensures smooth and flat material handling through the bottom cutterhead
• Idle and driven table rolls contribute to steady feeding, even for difficult materials
• Automatic lubrication ensures smooth operation of the conveyor feed system
Versatile and High-Quality Performance
• Variable feed speeds from 32 to 82 FPM with a digital display for precise control
• Equipped with sectional serrated infeed rolls before the top cutterhead for enhanced material feed
• Schneider electrical components meet CSA/UL standards for superior reliability and safety
- New/Used: New
- Working Width: 32
- Max. Working Thickness: 7.78
- Dimensions of Standard Knives: 30 x 12 x 2.5mm
- Cutterblock Diameter: 5.9
- Min. Working Thickness: 0.47
- Cutterhead Speed: 4300 RPM
- Feed Speed: 32-82 FPM
- Cutting Head: Spiral
- Shipping Weight: 19180 lbs.
- Machine Dimensions: 120 x 77 x 69
- Bottom Cutterhead Motor: 60 HP
- Shipping Dimensions: 124 x 80 x 77
- CFM dust requirement: 6500 CFM
- Top Cutterhead Motor: 60 HP (75 opt.)
- Feed Drive Motor: 10 HP (15HP inverter); 15 HP (20HP inverter opt.)
- Machine Weight: 18740 lbs.
- Type: Double Surface
