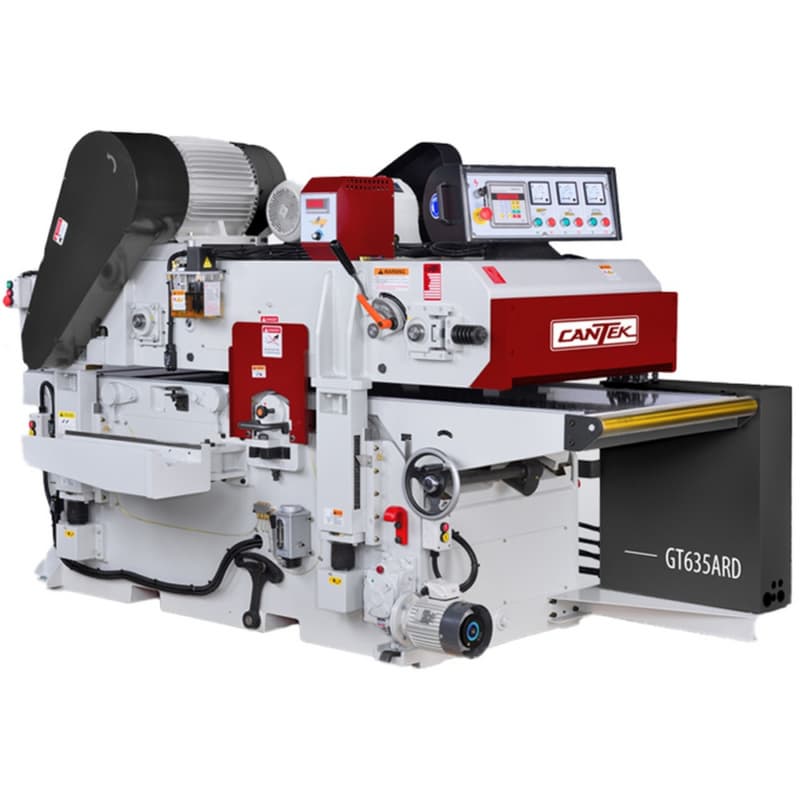

The Cantek GT635ARD-8 Double Surface Planer is designed for shops that need fast, precise planing in a single pass. Built with dual helical cutterheads and a rugged cast iron construction, this machine ensures smooth finishes and consistent thickness. With spring-loaded conveyor pins and precision digital controls, the GT635ARD-8 delivers maximum efficiency, making it perfect for high-throughput operations where tight tolerances are essential.
Key Features & Benefits
Dual Helical Cutterheads for Smooth & Accurate Finishing
• Spiral cutterheads on both the top and bottom provide quiet operation and a clean finish
• Two-sided carbide inserts offer long-lasting sharpness
• Six rows of carbide inserts on each head allow for aggressive stock removal
Spring-Loaded Feed System Ensures Flat & Even Boards
• Spring-loaded finger conveyor flattens cupped or warped material, ensuring uniform thickness
• Improves thickness accuracy by ensuring even feeding
Precision Controls for Repeatable, Professional Results
• Motorized thickness adjustment with digital control (inch and mm) for precise depth settings
• External handwheel allows quick infeed bed height adjustments
Built for Long-Term Industrial Performance
• Cast-iron frame and chromed worktable reduce vibration and resist wear
• Auto-lubrication system maintains machine components for longer life
• Sectional chipbreakers and anti-marking rollers preserve board quality
- Dimensions of Standard Knives: 30 x 12 x 1.5mm
- Surfacing Table Length: 103
- Cutterhead Speed: 5400 RPM
- Feed Speed: 26-80 FPM
- Worktable Dimensions: 27 x 103
- Net Weight: 6600 lbs
- Dust Port: 2 @ 6
- Table Dimensions: 27 x 103 (32 from the floor)
- Machine Dimensions: 105 x 45.1 x 67.7
- Voltage: 460/3/60 = 69.7 Amps, 575/3/60 = 56 Amps
- Packaging Dimensions: 109 x 49 x 74
- Gross Weight: 7700 lbs
- Type: Double Surface
