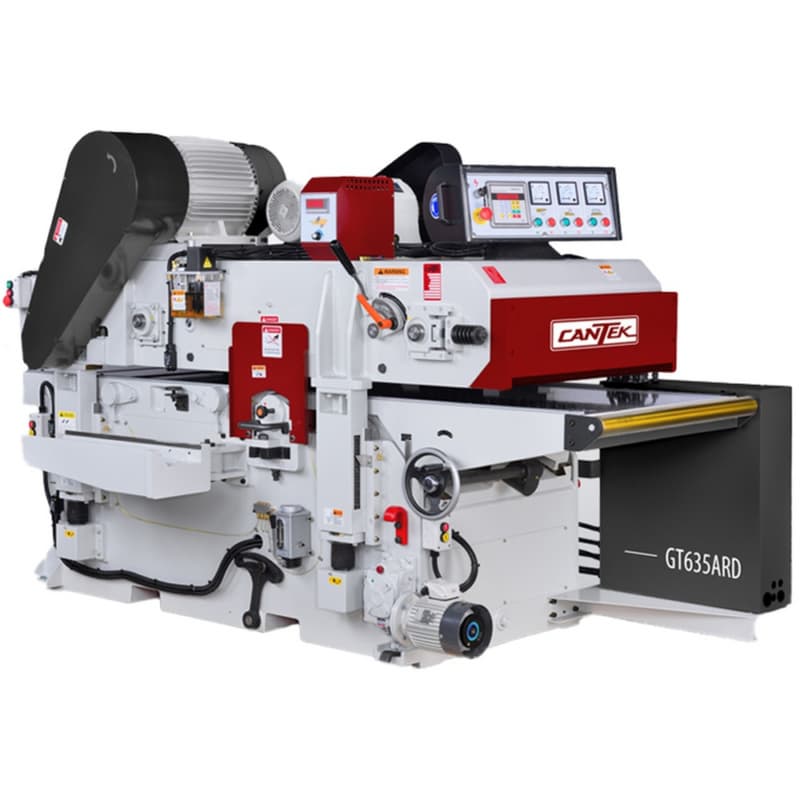

The Cantek GT635ARD 25" Double Surface Planer is engineered for industrial-scale operations, allowing for precise planing of materials in a single pass. With dual helical cutterheads and robust construction, this machine is designed to deliver a smooth finish and rapid material removal, making it ideal for high-production environments. Equipped with digital controls and automated feed systems, it's built for minimal downtime and maximum throughput.
Key Features & Benefits
Dual Helical Cutterheads for Superior Finishing and Removal
- Spiral cutterheads with solid carbide inserts provide a smooth, quiet cut and reduce tear-out
- Increases stock removal while minimizing surface imperfections, even on challenging grain
- Two-sided carbide inserts maximize lifespan and reduce replacement costs
Spring-Loaded Finger Feed Ensures Uniform Thickness
- Conveyor pin system flattens cupped or warped material for consistent finishing
- Driven and idle bed rolls maintain steady feed for various material types
Precision Thickness Control for Exact Dimensions
- Motorized infeed adjustment with digital thickness display provides high-accuracy planing
- Manual adjustments with an external handwheel ensure quick and easy thickness modifications
Heavy-Duty Construction for Long-Term Performance
- Cast-iron body and worktable absorb vibration for a flawless cut
- Hard-chromed worktable resists wear and ensures long-term durability
- Ergonomic design with a swiveling control panel for easy operation
High-Volume Feed with Speed and Safety Features
- Adjustable feed speeds from 26 to 80 FPM ensure versatility for different material types
- Rubber outfeed rollers and sectional chipbreaker prevent chip marking and feed inconsistencies
- Over-thickness safety bar and ammeters protect motor performance
- New/Used: New
- Working Width: 25
- Max. Working Thickness: 24
- Dimensions of Standard Knives: 30x12x1.5mm
- Min. Working Thickness: 0.315"
- Surfacing Table Length: 103
- Cutterhead Speed: 5400 RPM
- Feed Speed: 26-80 FPM
- Cutting Head: Spiral
- Worktable Dimensions: 27 x 103
- Planer Working Height: 24
- Net Weight: 6600 lbs
- Cutterhead Diameter: 4
- Dust Port: 2 @ 6
- Machine Dimensions: 105 x 45.1 x 67.7
- Voltage: 460/3/60 = 69.7 amps 575/3/60 = 56 amps
- Min. Workpiece Length: 12.2
- Packaging Dimensions: 109 x 49 x 74
- Bottom Head Motor: 20 HP
- Gross Weight: 7700 lbs
- Top Planing Head Motor: 25 HP
- Feed motor: 5 HP
- Table Elevation Motor: 1/2 HP
- Type: Double Surface
