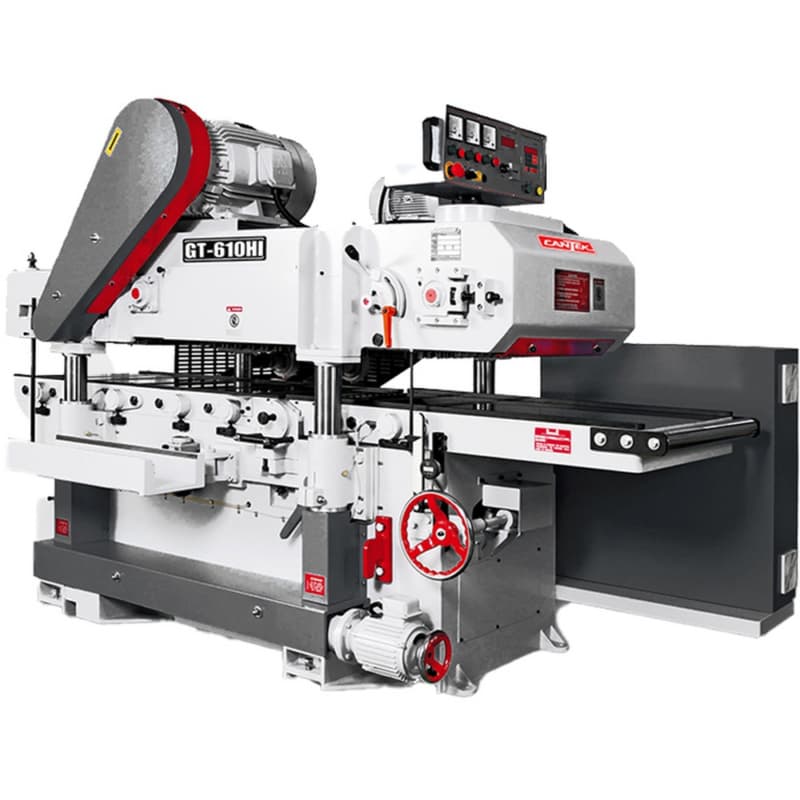

The Cantek GT610HI Shaft Drive Double Surface Planer delivers high-speed performance with unmatched precision. With a powerful cardan shaft feed system, durable cast-iron construction, and spiral insert knife cutterheads, this 24" planer is engineered for demanding applications. Operators benefit from fine-tuned digital thickness settings and robust motor output for continuous, high-volume operations.
Key Features & Benefits
High-Speed Feed System for Increased Productivity
• The full cardan shaft feed drive enables a feed rate of up to 98' per minute, keeping up with high production demands
• Three driven bed rollers ensure consistent material movement even with heavier or longer stock
• Sectional serrated infeed roll before the top cutterhead guarantees a reliable, smooth start to every pass
Precision Cutterheads Deliver Cleaner, Quieter Cuts
• Spiral insert knife cutterheads with six rows of two-sided 30 x 12 x 2.5 mm carbide inserts provide a premium surface finish
• Reduces machine load and operating noise, increasing efficiency and comfort
• The steel spiral heads are mounted in precision ABEC 7 RHP bearings for maximum stability and longevity
Digital Controls for Accurate Thickness Settings
• Digital thickness control ensures precise adjustments down to +/- 0.002"
• Swivel-mounted control panel makes access ergonomic and efficient
• Individual ammeters help operators monitor motor load, while a built-in hour meter aids in maintenance planning
Durable Design for Continuous Industrial Use
• Cast-iron machine frame offers excellent vibration damping, enhancing cutterhead life and cut quality
• Chrome-plated top and bottom tables resist wear and maintain accuracy over time
• The upper assembly adjusts via four large-diameter posts for stable, even height changes
Optimized Stock Removal and Feed Consistency
• Material is first passed over the bottom jointing head using a spring-loaded pin feed system, ensuring it’s perfectly flat before planing to final thickness
• The adjustable infeed bed allows you to dial in how much material is removed on the bottom pass
• Automatic conveyor lubrication keeps the feed system running smoothly with minimal downtime
- New/Used: New
- Working Width: 24
- Dimensions of Standard Knives: 30 x 12 x 2.5mm
- Cutterblock Diameter: 5.3
- Min. Working Thickness: 0.472
- Cutterhead Speed: 4,600 RPM
- Feed Speed: 30-98 FPM
- Cutting Head: Spiral
- Dust Port: (2) 6 = 3500 CFM
- Shipping Weight: 9,700 lbs
- Machine Dimensions: 112 x 67 x 67
- Bottom Cutterhead Motor: 30 HP
- Shipping Dimensions: 116 x 75 x 79
- Min. Working Length: 11.8
- Electrical Requirement: 460/3/60 = 110 Amps (Other voltages on request, factory order)
- Top Cutterhead Motor: 40 HP
- Feed motor: 5 HP
- Table Rolls: 7 (3) driven
- Machine Weight: 9,260 lbs
- Opening Hoist Motor: 1 HP
- Type: Double Surface
