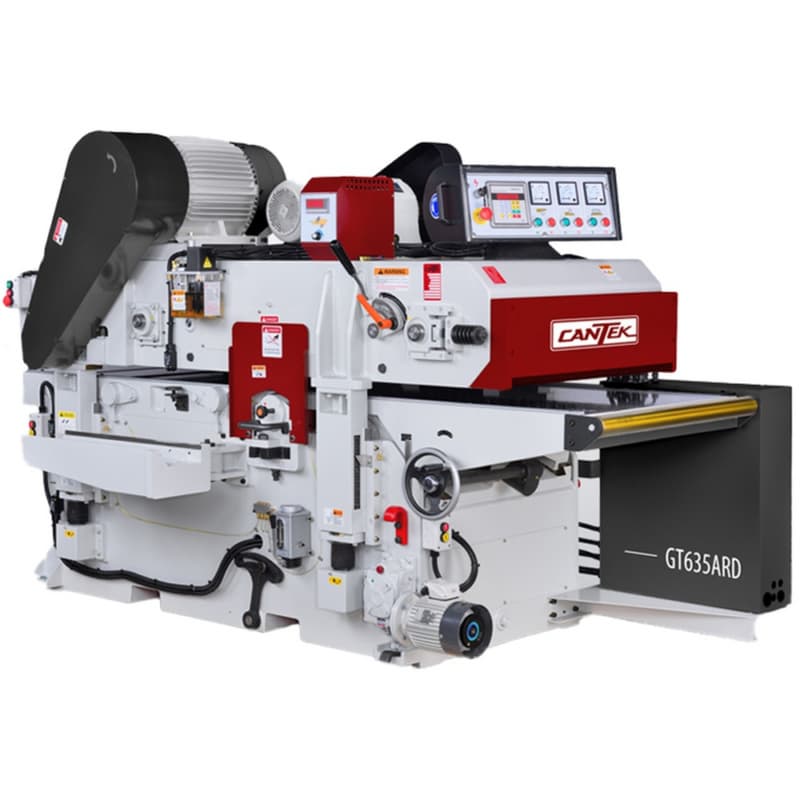

The Cantek GT635ARD 25" Double Surface Planer offers high-performance planing, efficiently removing stock in a single pass. Its helical insert knife cutterheads ensure smooth, precise finishes, while the spring-loaded finger feed system handles cupped boards. Digital thickness control and motorized adjustment deliver accurate dimensions for all your lumber. Built with a solid cast-iron body, this planer guarantees durability and long-lasting performance. Ideal for industrial applications, the GT635ARD provides reliable results in demanding environments.
Key Features & Benefits
Efficient Material Handling: Smooth Feeding for Accurate Results
• The spring-loaded conveyor pin system ensures that the material is passed over the bottom cutterhead, ensuring a flat and uniform board
• This feature is especially useful for flattening cupped or uneven boards, preparing them for the top cutterhead to plane to thickness
• The system’s precision enhances cutting consistency and minimizes the risk of material damage during feeding
Superior Cutting: Spiral Insert Knife Cutterheads for Smooth Finishes
• The spiral insert knife cutterheads are equipped with two-sided solid carbide knives, allowing for increased stock removal and exceptionally smooth finishes
• These cutterheads operate quietly, improving the working environment and minimizing noise pollution
• Their design ensures a high stock removal rate while maintaining a precise, high-quality finish on the material
Heavy-Duty Build: Stability for High-Volume Planing
• The heavy-duty cast-iron construction provides a vibration-free cutting experience, ensuring precision and longevity
• The sturdy build helps maintain consistent operation and accuracy over long periods of use
• It reduces the risk of machine instability, especially when handling larger volumes of material or challenging workloads
Precision Thickness Control: Accurate Adjustments for Exact Results
• The digital electronic thickness adjustment is available in Inch and MM (Inch = 0.001" / mm = 0.01mm resolution), providing precise and easy-to-manage settings for thickness control
• The motorized adjustment simplifies the process of setting the correct thickness, increasing productivity and accuracy
• With this feature, users can expect consistent results with minimal recalibration between tasks
Versatile Capacity: Multiple Thickness Options for a Range of Applications
• The Cantek GT635ARD comes with a standard capacity of 25" x 8", with optional configurations of 16", 20", and 24" thickness capacities, making it suitable for various materials and projects
• Whether you are working with thin or thick materials, the planer offers flexibility in handling different material thicknesses
• This versatility makes the machine a perfect fit for custom shops or industrial environments requiring a range of thicknesses
- New/Used: New
- Working Width: 25
- Dimensions of Standard Knives: 30 x 12 x 1.5mm
- Surfacing Table Length: 103
- Cutterhead Speed: 5400 RPM
- Feed Speed: 26-80 FPM
- Cutting Head: Spiral
- Worktable Dimensions: 27 X 103
- Planer Working Height: 16
- Net Weight: 6600 lbs
- Cutterhead Diameter: 4
- Dust Port: 2 @ 6
- Machine Dimensions: 105 x 45.1 x 67.7
- Voltage: 460/3/60 = 69.7 Amps; 575/3/60 = 56 Amps
- Min. Workpiece Length: 12.2
- Packaging Dimensions: 109 x 49 x 74
- Bottom Head Motor: 20 HP
- Gross Weight: 7700 lbs
- Top Planing Head Motor: 25 HP
- Feed motor: 5 HP
- Table Elevation Motor: 1/2 HP
- Type: Double Surface
