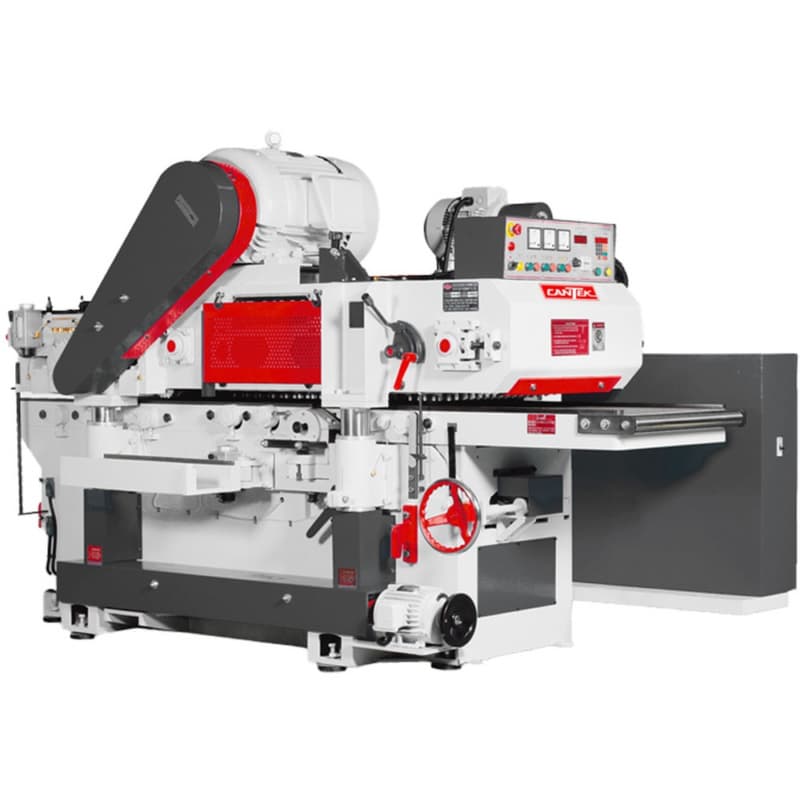

The Cantek GT1000HD 39" Heavy Duty Double Surface Planer. Built for industrial operations, this machine delivers exceptional stock removal, finish quality, and long-term durability. With a solid cast-iron body, high-speed cardan drive, and precision XYLENT-style cutterheads, the GT1000HD is engineered to handle the most demanding production environments.
Key Features & Benefits
Powerful Cutterheads Deliver High Stock Removal and Finish Quality
• Spiral insert cutterheads feature 8 rows with 30 x 12 x 2.5 mm solid carbide inserts for clean, quiet operation and superior finish
• Cutters are angled for a shearing cut, reducing resistance and extending tool life
• Cutterheads are mounted in precision NSK class-7 ball bearings for optimal stability and reduced wear
Heavy-Duty Design Ensures Industrial-Level Reliability
• Cast-iron base and table absorb vibration, ensuring better finish and long-term durability
• Four large-diameter posts enable smooth vertical movement of the upper head assembly
• Y-Delta motor starters provide soft starts, protecting the motor and reducing energy spikes
Smart Feeding System Improves Throughput and Accuracy
• Spring-loaded pin conveyor system flattens stock before top planing
• Sectional serrated infeed and chip breakers handle variable stock thickness with ease
• Variable speed drive (26–79 FPM) ensures perfect finishes on different materials
Easy Adjustments for Precise Thickness Control
• Digital thickness control allows precise settings down to ±0.002" (0.05mm)
• External handwheel makes infeed bed adjustment simple and repeatable
• Flip-open hood and knife safety switch provide quick, safe cutter access
Maintenance-Friendly for Reduced Downtime
• Automatic lubrication of conveyor and guideways keeps the machine running smoothly
• Control panel includes individual ammeters and hour meter for monitoring and maintenance
• Quick-set table roll adjustment simplifies feeding of difficult stock
- New/Used: New
- Working Width: 39
- Max. Working Thickness: 7.78
- Dimensions of Standard Knives: 30 x 12 x 2.5mm
- Cutterblock Diameter: 6.9
- Min. Working Thickness: 0.47
- Cutterhead Speed: 4000 RPM
- Feed Speed: 32-82 FPM
- Cutting Head: Spiral
- Shipping Weight: 21385 Lbs.
- Machine Dimensions: 120 x 77 x 69
- Bottom Cutterhead Motor: 60 HP
- Shipping Dimensions: 124 x 80 x 77
- CFM dust requirement: 8200 CFM
- Top Cutterhead Motor: 60 HP (75 opt.)
- Feed Drive Motor: 10 HP (15HP inverter); 15 HP (20HP inverter opt.)
- Elevation Motor: 2 HP
- Machine Weight: 20945 lbs.
- Type: Double Surface
