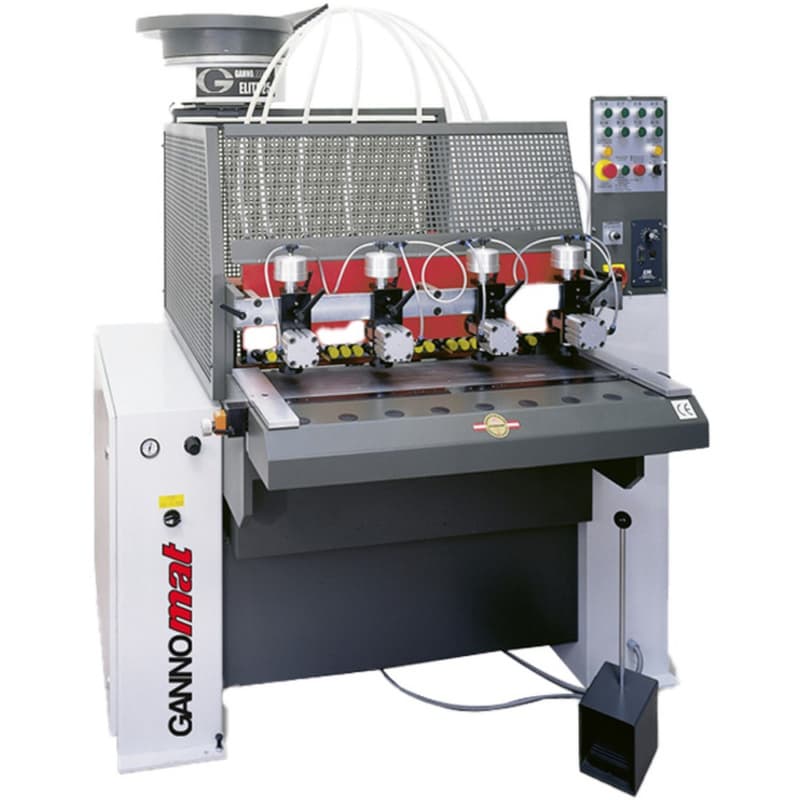

The Gannomat Elite 50 is a high-performance automatic dowel inserting machine designed for precision, efficiency, and flexibility. Ideal for simultaneous drilling, gluing, and dowel insertion, it is equipped with a PLC electronic control system and multi-spindle drill head to streamline repetitive operations. Engineered for high-throughput furniture and frame production, it offers consistent accuracy with minimal setup time. Gannomat machines are built in Austria and known for unmatched durability, craftsmanship, and innovation.
Key Features & Benefits
Automated PLC Control for Hassle-Free Operation
• The fully automatic PLC system allows you to switch seamlessly between drilling and dowel insertion modes
• Operators benefit from simplified controls, reducing training time and errors
• PLC settings speed up repetitive tasks, improving daily production capacity
Precision Fencing with Mechanical Digital Counters
• Mechanical counters on the side fences ensure precise edge positioning for each part
• Settings can be quickly repeated, helping reduce downtime between jobs
• Ideal for batch production where consistency is critical
Closed Gluing System for Clean and Reliable Adhesive Application
• Gannomat’s sealed glue line system ensures clean and controlled glue application
• The integrated selector switch (Glue/Water) simplifies flushing and cleaning
• Dual tanks keep glue and cleaning water separate, improving workflow hygiene
High-Accuracy Drilling Unit with 25-Spindle Head
• Robust construction with angled linear guides ensures repeatable precision
• Standard 25-spindle drill head spaced at 32mm - ideal for cabinet and casework joinery
• Additional spacings available by request for custom operations
Flexible Application for Multiple Joinery Tasks
• Perfect for cabinet, rack, and frame assemblies across various materials
• Optional mitre stops and fixtures enable face drilling and diagonal joint work
• Can be equipped with a bottom drilling unit for specialized holes like Häfele Minifix
- Weight: 2,148.000 lbs
- Diameter: 8 mm
- Length: 25-50 mm
- Outstanding Dowel Length Projection: 5-15 mm or 15-25 mm
