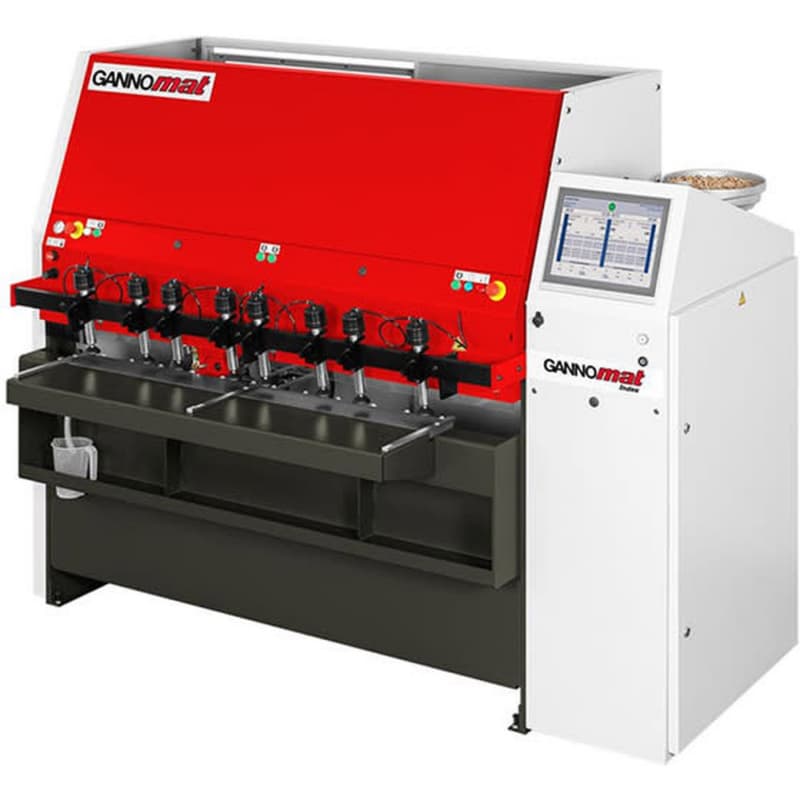

The Gannomat Index Logic 130 is a high-precision CNC-controlled drill and dowel insertion machine made for efficient panel and solid wood processing. Its compact design, fast cycle times, and integration-friendly software make it an ideal CNC companion. Built for productivity, it delivers accuracy and clean resultswhether for grooving, routing, or doweling. Developed in-house by Gannomat, this system offers intuitive programming that suits both experienced and new operators.
Key Features & Benefits
Precision Processing That Saves Time
• Simultaneous drilling, gluing, and dowel insertion ensure faster, high-accuracy work cycles
• Suitable for both panel and solid wood materials
• Also supports grooving and routing operations for versatile applications
Seamless Routing for Lamello P-System
• Rout pockets for Clamex, Clamex Flexus, Tenso, Bisco, and Divario with ease
• Ideal for modern joining systems with high-strength needs
• Reduces dependency on manual routing setups
In-House Developed Software for Intuitive Programming
• Gannomat’s proprietary software simplifies useeven for users with minimal tech experience
• Easy programming directly at the machine or via office workstation
• Barcode scanning support enables ultra-fast job recall and execution
Full Integration with CAD-CAM for Workflow Efficiency
• Transfer programs directly from designer software via CAD-CAM or postprocessors
• Drastically reduces manual data entry and programming time
• Supports fully networked production environments
Smart Automation for Accurate Operation
• Z-axis with NC-controlled height adjustment for precise positioning of drill/inserting unit
• Built-in length measuring sensor automatically detects workpiece size and loads the right program
• Boosts repeatability and minimizes human error
- Weight: 1,462.000 lbs
- Boring Head Adjustment: 0 to 90-deg
- Distance Between Center: 32 mm
- Max. Drilling Depth: 3"(75 mm)
- Motor: 2.5 HP
- No. Of Spindles: 21
- Spindle Speed: 2800 RPM
- Table Size: 34.33" x 19.3"
