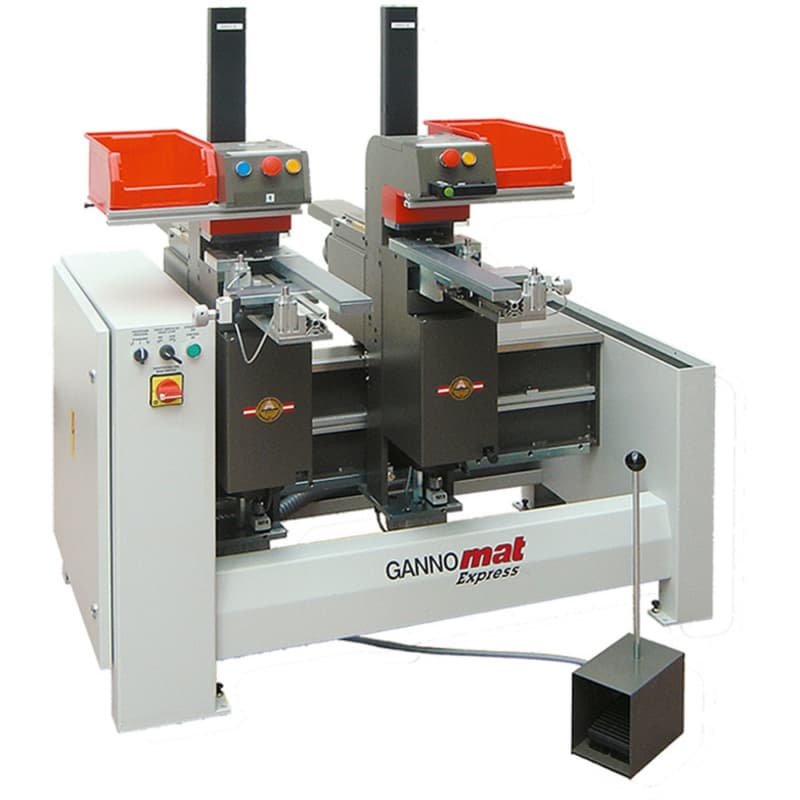

The Gannomat EXPRESS S2/RTA Hinge Insertion Machine is designed for the precise and efficient insertion of double and single post RTA fittings, including plastic and metal fittings. With a cycle time of just 5 seconds, this machine enhances productivity while ensuring superior accuracy. It is also capable of inserting flush single post RTA fittings, which is a unique feature in the market. This machine is ideal for woodworkers seeking speed, precision, and durability in their fitting insertion processes.
Key Features & Benefits
Fast Cycle Time for Increased Efficiency
• Drills and inserts two RTA fittings in just 5 seconds, ensuring rapid production
• Operating cycle of 4.5 seconds offers consistent speed and reduces downtime
• Ideal for high-volume applications, boosting productivity and reducing labor costs
Accurate and Consistent Insertion for Perfect Fit
• Aligns cam fittings flush and perpendicular to the edge of the workpiece for precise results
• Only viable way to insert flush fittings consistently, eliminating errors
• Drilling from below ensures accuracy, speed, product protection, and safety during operation
Safety Features for Operational Confidence
• Re-drill safety prevents machine cycling if an already inserted fitting is detected, ensuring no mistakes
• Magazine holds approximately 35 fittings, minimizing downtime for loading
• Prevents product damage with automatic alignment and safety protocols
- Dimensions: 55" x 48" x 55"
- Dust Extraction Tube: 100 mm
- Magazine: Holds Approximately 35 Fittings Each
- Operating Cycle: 4.5 seconds
- Working Width: 180 mm to 800 mm
