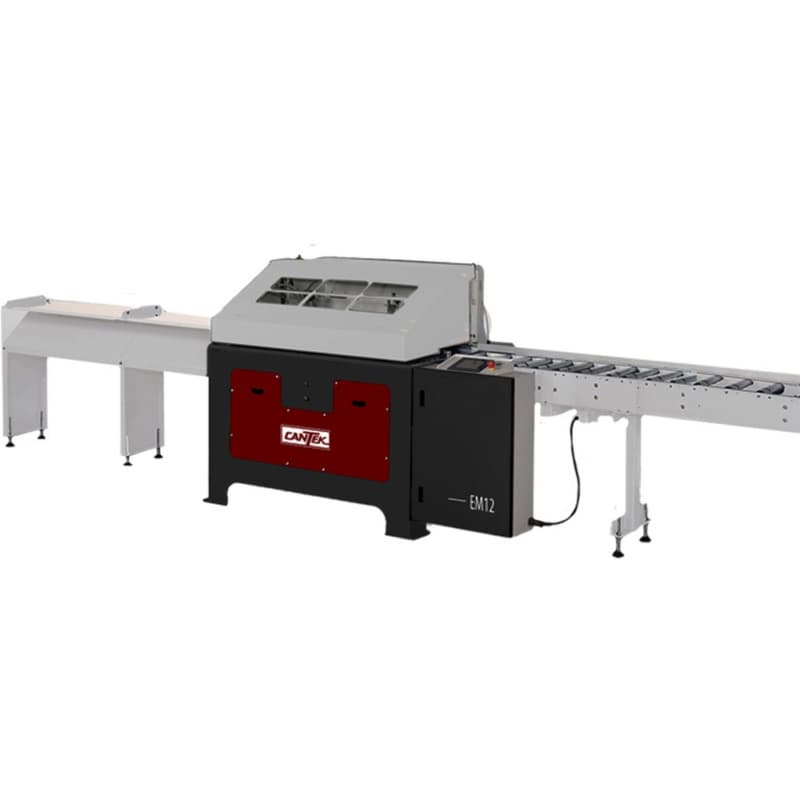

The Cantek EM12 End Matcher: Made for high-efficiency tongue and groove processing on hardwood flooring/paneling up to 12" wide. Design: Compact, through-feed layout maximizes output while conserving floor space. Cutting: Dual 10HP counter-rotating cutterheads ensure precise cuts with minimal tear-out. Operation: User-friendly touch screen offers intuitive controls and real-time diagnostics for ease of use. Ideal For: Manufacturers aiming to streamline production without compromising quality.
Key Features & Benefits
Simultaneous Tongue & Groove Cutting for Seamless Fit
- Dual 10 HP counter-rotating cutterheads cut tongue and groove profiles at the same time
- Achieve a perfect match between the leading edge and tail of consecutive boards
- Minimizes handling and boosts throughput with continuous feed
Compact Through-Feed Design Maximizes Floor Space & Productivity
- Small footprint with a production capacity of up to 77 linear feet per minute
- Allows seamless integration with CFS100 Automatic Defect Cutoff Saw
- Reduces floor space usage while increasing overall output
Advanced Cutterhead Configuration for Customizable Profiles
- Stackable insert knife cutterheads are fully adjustable and replaceable
- Micro-bevel inserts allow for either beveled or square-edge cuts
- Capable of working with boards up to 12" wide and 1.38" thick
Precision Clamping Ensures Flawless Finish
- Top and side clamps keep the board square against the fence
- Anti-tear-out blocks reduce chipping and blowout
- Chrome feed table offers wear resistance for long-term precision
User-Friendly Controls for Enhanced Operation
- Touchscreen PLC tracks total linear footage and piece count
- Variable infeed and cross-cutting speeds controlled via frequency inverter
- Simplifies troubleshooting and performance diagnostics
Versatile Material Handling for All Production Needs
- Can handle material as short as 12" and unlimited in length
- 118" powered infeed and 87" outfeed tables ensure continuous flow
- Spring-loaded and urethane rolls improve material positioning
- Machine Weight: 2530 lbs
- Weight: 2,600.000 lbs
- Clamping: Top & Side
- Connected Load: 21.5 HP
- Control Voltage: 24 V
- Cutter Drive Motor: 1/2 HP
- Cutterheads: 10 HP x 2
- Cutting Speed: 77 FPM
- Dust Outlet: 6"
- Max. Feed Speed: 295 FPM
- Feed System Motor: 1 HP
- Full Load Amperage: 230/3/60 - 50.4 Amps; 460/3/60 - 25.20 Amps
- Max. Length: Unlimited
- Min. Length: 12"
- Standard Outfeed Table: 86.6" (7.2') long - longer optional
- Power: 230, 460 or 575/3/60
- Standard Powered Infeed Table: 173" (14.4') long - longer optional
- Spindle Diameter: 40 mm
- Thickness: 0.4" - 1.38"
- Width: 1.6" - 12"
